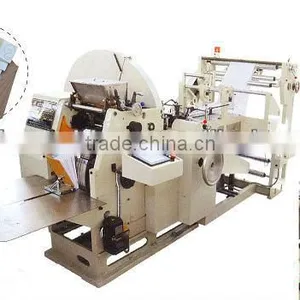

Automatic KFC Paper Bag Making Machine

This machine forms the paper bag in one process from roll paper,edge folding,tube forming,cutting,gluing,bottom folding,bottom gluingand finishing bag;

Easy operation,low power consumption,high efficiency;

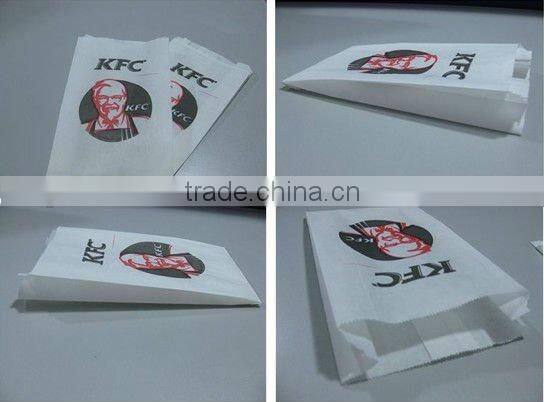

It's an ideal machine for producing bags like bread bags,KFC bags,nuts bags,etc.

Features

1. Suitable for 30-80gsm paper.

2. Controls bag length through the human-machine interface.

3. PLC system for calculating parameters.

4. Equipped with an accurate photocell system for printed mark

tracking.

5.Color mark error automatic alarming & stopping system

6.Automatic oil lubrication system

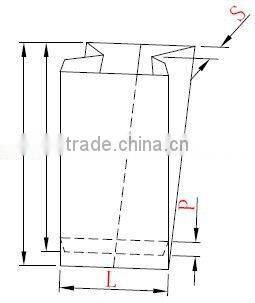

Parameters

Paper weight: 30-80g/m2

Cutting length(C):150-460mm

Bag length(H): 140-450mm

Bag width(L): 80-250mm

Gusset depth(S):10-50mm

Standard flap(P):12-17mm

Speed: 60-300pcs/min

Power: 6kw

Total weight: 3500kg

Machine dimension: 4580 *1650 *1850mm
