Home > Products > Paper Converting Machine > Automatic Roll Fed Square Bottom Paper Bag Machine

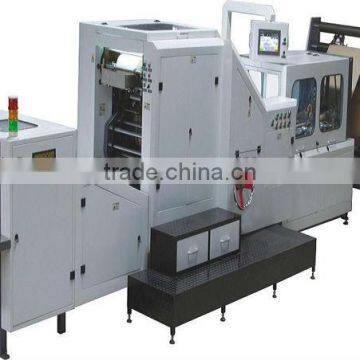

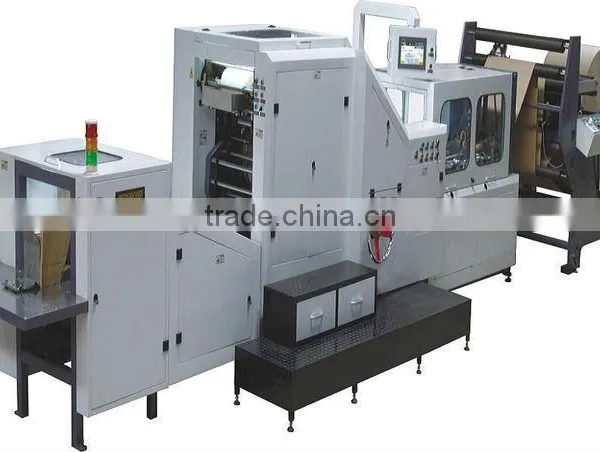

Automatic Roll Fed Square Bottom Paper Bag Machine
Negotiable
/ Set
1 Set(Min. Order)
- Ningbo or Shanghai
- T/T
You May Like
-
Adjustable Roll Feeding Square Bottom Paper Bag Transformer Machine
-
Automatic Gluing Machine For Carton Box
-
Mini Auto Folder Gluer
-
ZH-800C Multifunction Automatic Carton Box Gluefolder Pasting Machine
-
High Speed Automatic Folder Gluer With PreFolding
-
Automatic Roll Feeding Food Paper Bag Making Machine
Product Details
| Condition | New | Machine Type | Bag Forming Machine | |
| Bag Type | Shopping Bag | Material | Paper | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Tonghe | Model Number | RSB-460 | |
| Voltage | 380V or other | Power(W) | 18.5KW | |
| Dimension(L*W*H) | 9000mm*3300mm*1900mm | Weight | About 9000 kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
RSB-460 Adjustable roll fed square bottom paper bag machineMax. bag size: L460*W505mm
Min. bag size: L155*W220mm
Features
1. Introduce PLC & In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance.
English/Chinese language can be changed easily.
2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system
3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter
Wheel type gusset unit with motor driving.
4. Servo motors for main feeding and bag length control
Closed type automatic glue application and forming system
Paper impress, bottom folding, gluing and bag formation can be completed automatically.
5. Side lay working table, easy operation.
Paper Width | 600-1300mm |
Bag Length | 155-505mm |
Paper Bag Width | 80-290mm |
Bag Bottom Width | 60-160mm |
Paper Weight | 60-180gm2 |
Max. Diameter of Paper Roll | 1200mm |
Inner Diameter of Paper Core | 76mm |
Max. Speed | 12000PCS/hr. |
Total Power | 18.5KW |
Overall Dimensions | 9000mm*3300mm*1900mm |
W.T | About 9000 kg |
