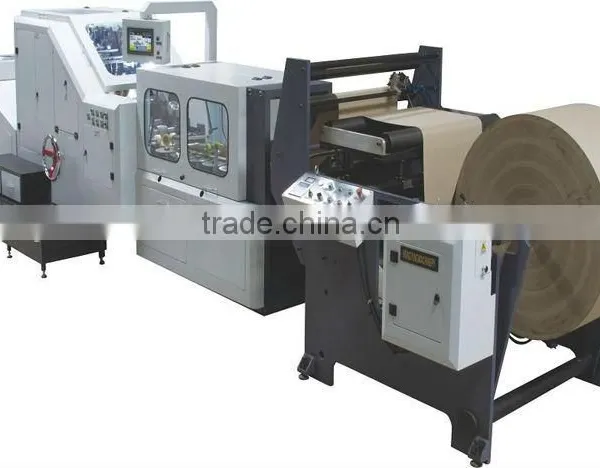

Adjustable Roll Feeding Square Bottom Paper Bag Transformer Machine

Name: Adjustable Roll Feeding Square Bottom Paper Bag Transformer Machine
Brand: Tonghe
SKU: 141519298
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Usage:

Paper Forming Machine

Yiwu Tonghe Imp. & Exp. Trading Firm

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Usage Paper Forming Machine

Place of Origin Zhejiang, China

Brand Name Tonghe

Model Number RSB-290

Voltage 380V or other

Power(W) 18.5KW

Dimension(L*W*H) 9000mm*3300mm*1900mm

Weight About 9000 kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

RSB-290 Adjustable roll fed square bottom paper bag machine
Max. bag size: L290*W505mm
Min. bag size: L155*W80mm

Features

1. Introduce PLC & In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance.

English/Chinese language can be changed easily.

2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system

3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter

Wheel type gusset unit with motor driving.

4. Servo motors for main feeding and bag length control

Closed type automatic glue application and forming system

Paper impress, bottom folding, gluing and bag formation can be completed automatically.

5. Side lay working table, easy operation.
