Specifications
Double-Layer Vest Bag Sealing and Cutting Machine1.high efficiency,high quality
2.double layers
3.reasonable price

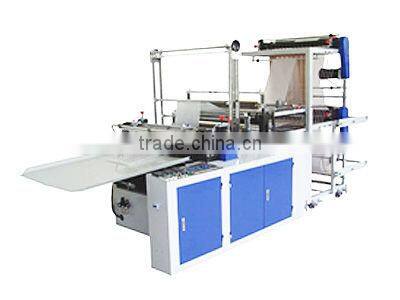

Double-Layer Vest Bag Sealing and Cutting Machine
Feature:
This machine is suitable for making high-low pressure vest bags, flat bags, medical disposable bags, sanitary napkin bag.(When producing spot cutting-off garbage bags, it can be equipped with rolling machine and spot cutting-off knife dual-purpose device). This machine can make bags in two layers for non-printed materials, and then the speed of bag making is doubled.
Performance and Characteristics:
1.The whole machine adopts microcomputer control and material-pulling by stepping motor (Servomotor control system can also be selected and equipped).
2. Arbitrary fixed-length, accurate and stable step photoelectric tracking, and stopping automatically when the label is lost photoelectric control feeding.
3. Automatic counting and set able counting alarm.
4. Automatic constant temperature makes the sealing the sealing of bag opening firm and smooth.
5. Non-printing can make bags in double lines.
Main technical parameters:
model |
FDFQ-600A |
FDFQ-750A |
FDFQ-1000A |
Max.width of bag making |
550mm |
650mm |
960mm |
Max.length of cutting |
999mm |
1200mm |
120mm |
Production capacity |
30~180/min |
30~180/min |
30~90/min |
Gross power |
4.2kw |
4.5kw |
5kw |
Machine weight |
750kg |
900kg |
950kg |
Overall dimension |
3300X1040 |
3300X1140 |
3300X1240 |
