Cement grinding ball mill for silicate cement
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T
You May Like
-
Rice husk rotary dryer/rice husk dryer machine/rice husk drying equipment
-
Biomass dryer, biomass rotary dryer, biomass drying equipment
-
Ball milling machine for gold
-
Ball mill plant for copper ore, iron ore and gold grinding
-
Ball mill machine for limestone grinding
-
Ball mill grinder machine, mine mill machine, ball mill grinding machine
Product Details
Condition | New | Type | Ball Mill | |
Motor Type | AC Motor | Power(W) | 380kw | |
Capacity(t/h) | 12-13t/h | Place of Origin | Henan, China | |
Brand Name | Derui | Model Number | 2.2*7.5m | |
Dimension(L*W*H) | depend on the model | Weight | 55t | |
Certification | ISO | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

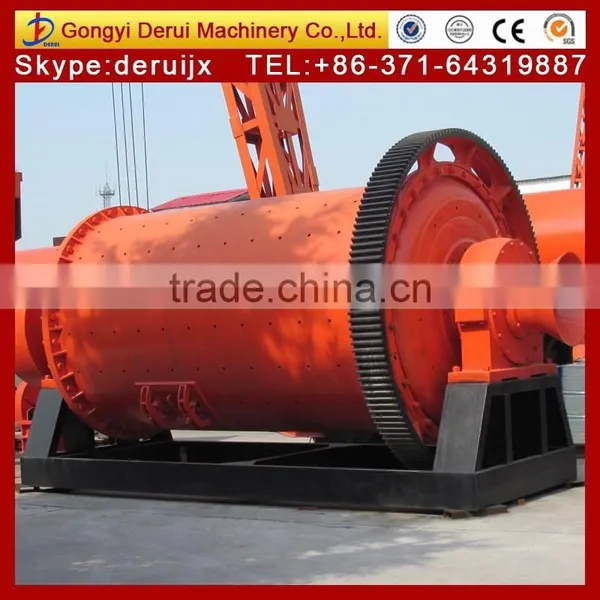

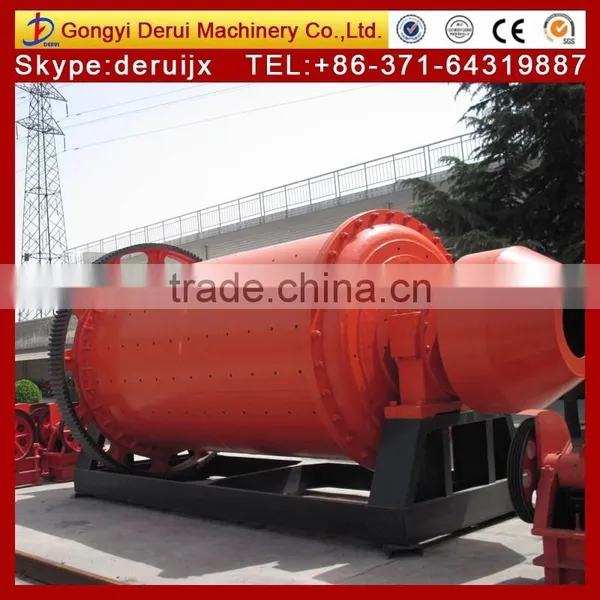

Cement grinding ball mill for silicate cement
Cement grinding ball mill is a key equipment for regrinding, it is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
Cement grinding ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
Working process of Cement grinding ball mill :

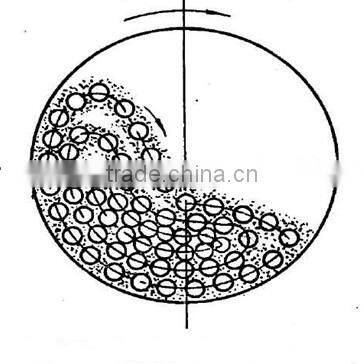

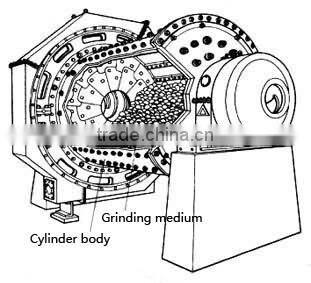

Cement grinding ball mill is a horizontal cylinder rotating device, with the outer gear transmission, two warehouses and grid type China Cement grinding ball mill . The materials get into the first warehouse through the feeding device evenly, with the steps lining board or corrugated lining board and different sizes of steel balls in the warehouse. The centrifugal force produced by the cylinder puts the steel balls to a certain height and then makes them fall down, which has a strong impact and grinding effect on the materials. After the coarse crushing process in the first warehouse, the materials get into the second warehouse, with the scale board embedded and steel balls in the warehouse. The materials will be further crushed in this warehouse. The powder will be discharged by the uploading plank. Then, the grinding work will be finished.
Technical parameter of Cement grinding ball mill :
Model | Speed of bucket (r/min) | Weight of ball(T) | Size of feed opening(mm) | size of outputting feed (mm) | Production (t/h) | Power (kw) | Weight (T) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |

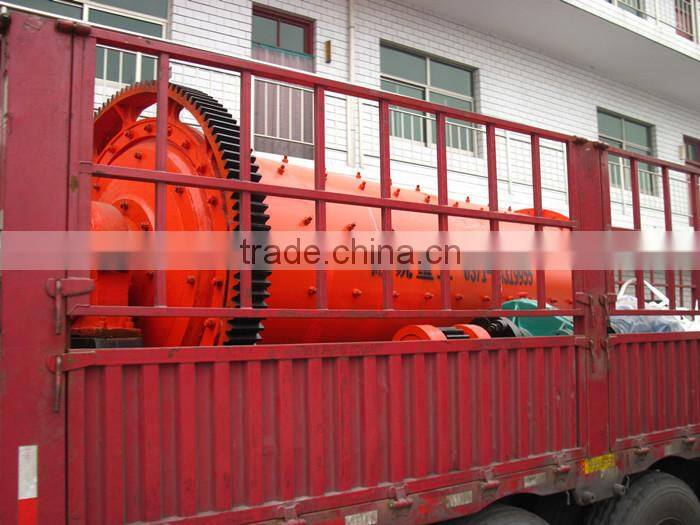

Cement grinding ball mill shipping:
Derui introduction:
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment:cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.
Dryer equipment:Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Beneficiation equipment series:fotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, rod mill, Cement grinding ball mill , etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, etc.
Why choose Derui Machinery?
1. We are a large direct factory, not a middle man. We can provide most reasonable price.
2. More advanced technology and professional engineers.
3. The main raw material or parts are provided by China large & famous machinery supplier.
4. Favorable technology support. Accept customer’s consultation, make solution plan according to customer request, provide technical analysis & support from beginning of project till after-sales service.
5.We are concentrated on export business, acquainted with market abroad. Service will be professional.
In order to give you an accurate quotation about Cement grinding ball mill , please tell us the following information:
1. What is your raw material to be grind?
Iron ore, gold ore, copper ore, or others.
2. What is the maximum feeding size of your raw material?
3. What are output sizes you want?
Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.
4. What is the capacity you want? How many tons per hour? Wet type or dry type?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
