Iron powder drying machine
- 30 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Derui | Model Number: | HZG1200*10000mm | Voltage: | 380v |
Power(W): | 7.5kw | Dimension(L*W*H): | 1.2*10m(d*L) | Weight: | 9.25T |
Certification: | ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Iron powder dryer
Iron powder drying machine mainly used in building materials, metallurgy, chemical plant, cement plant for drying limestone slag, coal powder, slag, clay stone.
Technical parameter of Iron powder drying machine:
Model(D*L)(mm) |
HZG800*8000 |
HZG1000*10000 |
HZG1200*12000 |
HZG1500*15000 |
Volume |
4-5m³ |
7.82m³ |
13.75 m³ |
24.9 m³ |
Rotate speed |
4-9r/min |
3-7 r/min |
3-7 r/min |
3-7 r/min |
Tilt | 3-5° | 3-5° | 3-5° | 3-5° |

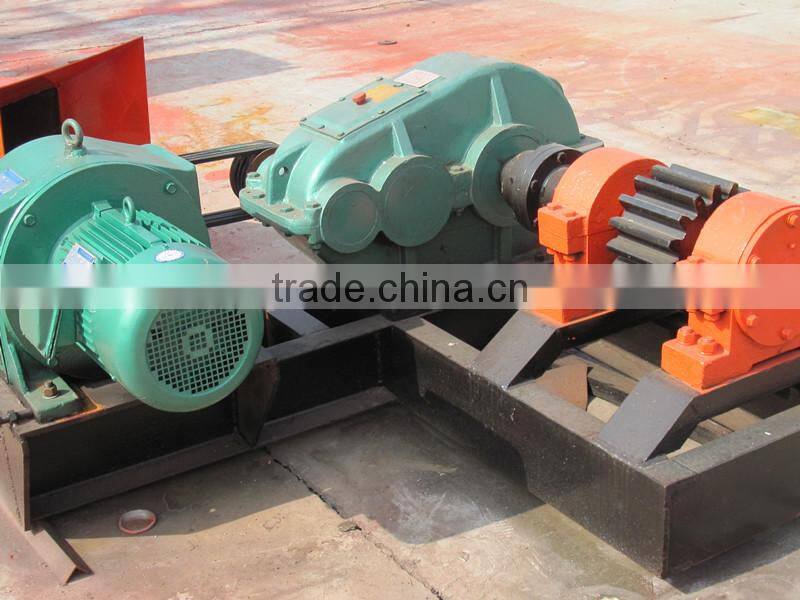

Motor model | Y132M2-6 | Y132M2-6 | Y160M-6 | Y180L-6 |
Power | 3kw | 4 kw | 7.5kw | 15kw |
Reducer model | JZQ 350 | JZQ 400 | JZQ 500 | JZQ650 |
Weight | 2.2t | 7.5t | 10.3t | 18.33t |

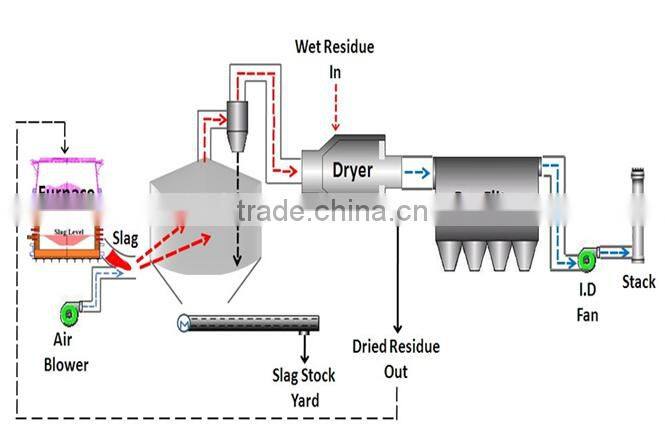

Working process of Iron powder drying machine:
1. wet materials are sent into silo by belt and bucket conveyor,
2. then, the material pass through feeding tube into the feed end. The gradient of feeding tube must be greater than the natural angle of materials, so that material can enter into desiccator.
3.The desiccators’ cylinder is an oblique rotating drum. Heat-carrier that enters into the dryer from the low-end can form reflux with the material added from the upper end.
4.With the rotating of cylinder, materials are carried to the bottom end by gravity.
5.In the moving process, wet materials obtain heat input of heat carrier directly and indirectly to be dried.
6.Then, finished materials are sent out by belt conveyor and screw conveyor.
Iron powder drying machine Shipping:
Iron powder drying machine can be used to dry the following materials:
Biomass: sawdust, wood chips, wood veneer
Ore: ore slag, mineral power, limestone, quartz, fluorite powder, sand, iron ore, metal ore concentrates, metal tailings, coal , etc.
Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder, clay, diatomaceous earth, bauxite
Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
Agriculture: straw, grass, turf, animal manure, beans waste
About Derui:
Derui is located in Zhengzhou city, henan province, China(mainland). Our main product include:
Crushing equipment: jaw crusher, impact crusher, cone crusher, hammer crusher, sand making machine, vibrating feeder, vibrating screen;
Mineral processing equipment: ball mill, spiral chute, classifier, flotation machine, magnetic separator;
Drying equipments: sawdust dryer, wood chips dryer, sand dryer, coal dryer, mine powder dryer,Iron powder drying machine,etc.
Building material equipment: rotary kiln, lime rotary kiln, cement rotary kiln, bauxite rotary kiln,etc.
Production line: sand production line, stone production line, active lime production line, cement production line.
FAQ
In order to help you to recommend suitable Iron powder drying machine, can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4. What is the production capacity in per hour or per day?
If per day, can you tell me how many hours you want the machine work?
5.If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
