kaolin drum dryer, kaolin clay rotary dryer, kaolin rotary dryer
1.Introduction of kaolin drum dryer:
Clay dryer or kaolin drum dryer is a specially designed dryer mainly used for drying clay, plaster, mix mortar, sand, cement slag, coal gangue, coal ash, iron powder and viscous materials.
kaolin drum dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

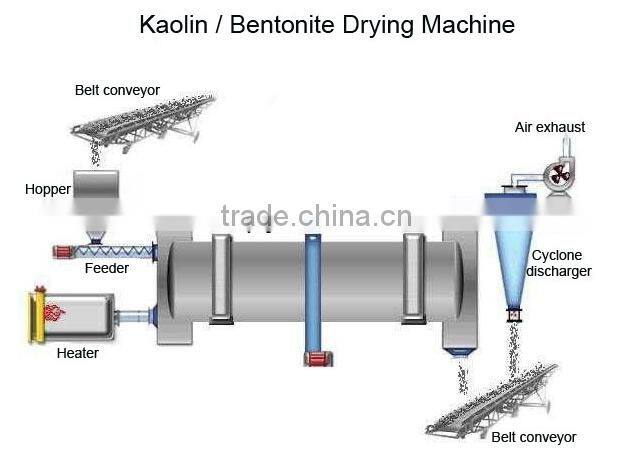

2.Working principle of kaolin drum dryer:
Wet materials are sent into hopper through belt conveyor or bucket elevator, and sent into feed end through feeding pipe of feeder hopper. The slope angle of the feeding pipe should be larger than the natural inclination of the materials in order to make the materials smoothly flow into the clay dryer. The clay dryer cylinder is a rotating cylinder with slight incline to the horizontal line. The materials are sent from the higher end and the heat-carrying agents are sent from the lower end to be countercurrent contact with the materials. Some heat-carrying agents and materials flow altogether into the end of the barrel with the gravity effect as the rotation of the cylinder. In the process of moving forwardness in the barrel, the wet materials are directly or indirectly gained the heat of the heat-carrying agent and be dried, then the discharge end discharges finished products through belt conveyor or screw conveyor.
3.kaolin drum dryer heat sources:firewood, coal, heat gas or electricity,etc.
4.kaolin drum dryer technical parameter:
| Model(m)D*L | Volume(m³) | Speed(r/min) | Tilt(°) | Motor | Power(kw) | Reducer model | Weight(t) |
| HZG1*10 | 7.85 | 3-7 | 3-5 | Y132M2-6 | 4 | JZQ400 | 7.5 |
| HZG 1.2*10 | 11.31 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 9.25 |
| HZG 1.2*12 | 13.75 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 10.3 |
| HZG 1.5*12 | 21.2 | 3-7 | 3-5 | Y280L-6 | 15 | JZQ650 | 17.13 |
| HZG 1.5*14 | 24.9 | 3-7 | 3-5 | Y180L-6 | 15 | JZQ650 | 18.33 |
| HZG 1.8*14 | 35.1 | 3-7 | 5 | Y200L-6 | 18.5 | JZQ650 | 20.85 |
| HZG 1.8*18 | 45.8 | 3-7 | 5 | Y200L-6 | 22 | JZQ650 | 22.3 |
| HZG 2.2*14 | 53.2 | 3-7 | 4.4 | Y200L-6 | 22 | JZQ750 | 32.23 |
| HZG 2.2*18 | 68.4 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 34.15 |
| HZG 2.2*20 | 70 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 36.07 |
| HZG 2.4*14 | 63.3 | 3-7 | 3.83 | Y225M-6 | 30 | JZQ850 | 39.9 |
| HZG 2.4*24 | 97 | 3-7 | 5 | Y225M-6 | 55 | JZQ850 | 70 |
| HZG 2.8*14 | 86 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 71 |
| HZG 2.8*18 | 110 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 75 |
| HZG 3*25 | 176.5 | 3-7 | 5 | Y225M-6 | 75 | JZQ900 | 110 |
5.Application of kaolin drum dryer:
kaolin drum dryer can be used in the drying of mix mortar, sand, cement slag, clay, coal gangue, mixture, coal ash, gypsum, iron powder and other raw materials, clay dryer is widely used in building materials, chemical, foundry and other industries.

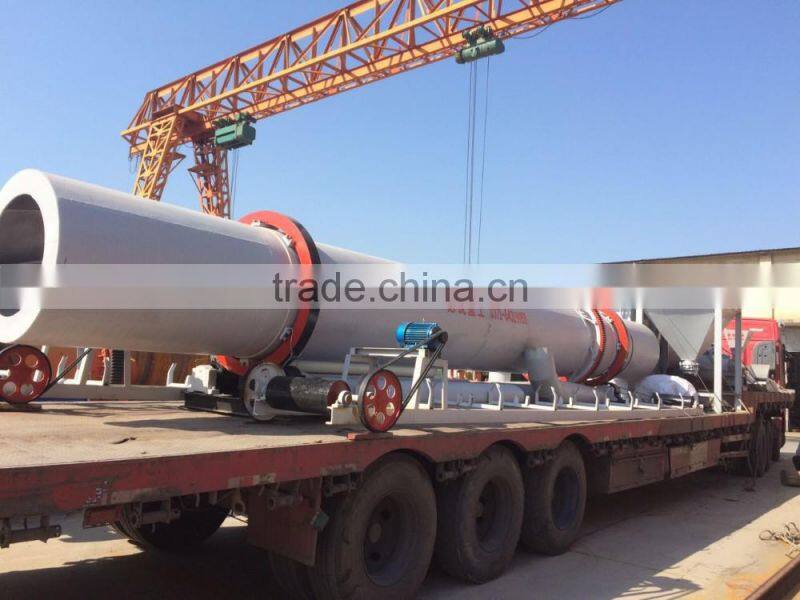

kaolin drum dryer shipping:
kaolin drum dryer working site:
6.Introduction of Derui Machinery:
Business Type:Manufacturer, Trading Company
Location:Zhengzhou, China (Mainland)
Year Established:2004
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Our main product include:rotary kiln, ball mill, kaolin drum dryer, rotary dryer,crusher, mineral processing equipment,Kaolin dryer, etc.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
