Mix mortar drying machine for drying limestone
Introduction of Mix mortar drying machine :
Mix mortar drying machine is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine, etc.

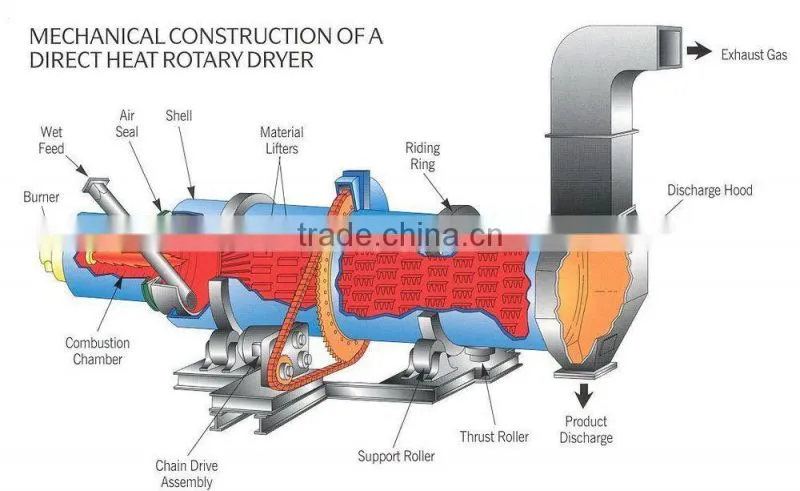

Structure of Mix mortar drying machine :
Mix mortar drying machine is mainly composed of heat source, feeding equipment, feeder, rotary drum, discharging equipment, raw material crushing device, induced draft fan, unloader and power distribution cabinet.After the dewatered wet material feeding into dryer, the material will be in fully touch with hot air under the flipping of the board, which accelerates drying heat transfer and mass transfer.
Technical parameter of Mix mortar drying machine :
|
Model(D*L)(mm) |
HZG800*8000 |
HZG1000*10000 |
HZG1200*12000 |
HZG1500*15000 |
|
Volume |
4-5m³ |
7.82m³ |
13.75 m³ |
24.9 m³ |
|
Rotate speed |
4-9r/min |
3-7 r/min |
3-7 r/min |
3-7 r/min |
Tilt |
3-5° |
3-5° |
3-5° |
3-5° |
Motor model |
Y132M2-6 |
Y132M2-6 |
Y160M-6 |
Y180L-6 |
Power |
3kw |
4 kw |
7.5kw |
15kw |
Reducer model |
JZQ 350 |
JZQ 400 |
JZQ 500 |
JZQ650 |
Weight |
2.2t |
7.5t |
10.3t |
18.33t |
Application of Mix mortar drying machine :
Mix mortar drying machine is widely used in building materials, metallurgy, chemicals, coal, fertilizer industries to dry the materials with certain humidity or granularity.
Generally speaking Mix mortar drying machine can dry the material from 30-40% humidity to 1-5% humidity.
Materials can be dried by Mix mortar drying machine :
Biomass: sawdust, wood chips, wood veneer
Ore: ore slag, mineral power, limestone, quartz, fluorite powder, sand, iron ore, metal ore concentrates, metal tailings, coal , etc.
Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder, clay, diatomaceous earth, bauxite
Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
Agriculture: straw, grass, turf, animal manure, beans waste
Mix mortar drying machine shipping:
In order to help you to recommend suitable Mix mortar drying machine , can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
