Rotary coal dryer kiln for drying coal gangue and coal slime
Fly ash introduction:

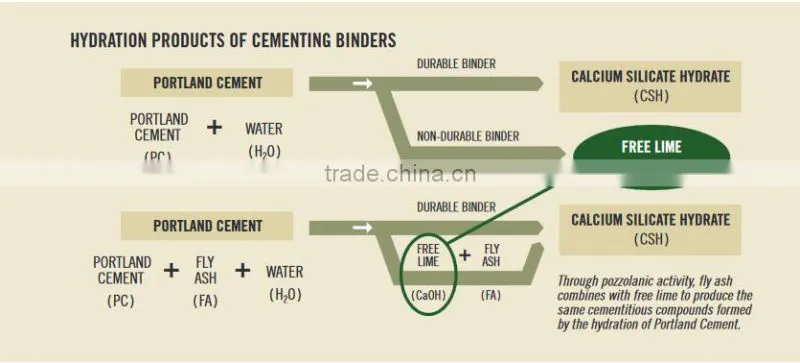

Fly ash, also known as "pulverised fuel ash", is one of the Coal combustion products, and is composed of the fine particles that are driven out of the boiler with the flue gases. Ash that falls in the bottom of the boiler is called bottom ash. Fly ash is generally captured by electrostatic precipitators or other particle filtration equipment before the flue gases reach the chimneys of coal-fired power plants, and together with bottom ash removed from the bottom of the boiler is known as coal ash. Depending upon the source and makeup of the coal being burned, the components of fly ash vary considerably, but all fly ash includes substantial amounts of silicon dioxide (SiO2) (both amorphous and crystalline), aluminium oxide (Al2O3) and calcium oxide (CaO), the main mineral compounds in coal-bearing rock strata.
Introduction of Rotary coal dryer :
Rotary coal dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine, etc.
Generally speaking Rotary coal dryer can dry the material from 30-40% humidity to 6%-12% humidity.
Structure of Rotary coal dryer :
Rotary coal dryer is mainly composed of heat source, feeding equipment, feeder, Rotary coal dryer, discharging equipment, raw material crushing device, induced draft fan, unloader and power distribution cabinet.After the dewatered wet material feeding into dryer, the material will be in fully touch with hot air under the flipping of the board, which accelerates drying heat transfer and mass transfer.
Technical parameter of Rotary coal dryer
| Model(m)D*L | Volume(m³) | Speed(r/min) | Tilt(°) | Motor | Power(kw) | Reducer model | Weight(t) |
| HZG1*10 | 7.85 | 3-7 | 3-5 | Y132M2-6 | 4 | JZQ400 | 7.5 |
| HZG 1.2*10 | 11.31 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 9.25 |
| HZG 1.2*12 | 13.75 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 10.3 |
| HZG 1.5*12 | 21.2 | 3-7 | 3-5 | Y280L-6 | 15 | JZQ650 | 17.13 |
| HZG 1.5*14 | 24.9 | 3-7 | 3-5 | Y180L-6 | 15 | JZQ650 | 18.33 |
| HZG 1.8*14 | 35.1 | 3-7 | 5 | Y200L-6 | 18.5 | JZQ650 | 20.85 |
| HZG 1.8*18 | 45.8 | 3-7 | 5 | Y200L-6 | 22 | JZQ650 | 22.3 |
| HZG 2.2*14 | 53.2 | 3-7 | 4.4 | Y200L-6 | 22 | JZQ750 | 32.23 |
| HZG 2.2*18 | 68.4 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 34.15 |
| HZG 2.2*20 | 70 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 36.07 |
| HZG 2.4*14 | 63.3 | 3-7 | 3.83 | Y225M-6 | 30 | JZQ850 | 39.9 |
| HZG 2.4*24 | 97 | 3-7 | 5 | Y225M-6 | 55 | JZQ850 | 70 |
| HZG 2.8*14 | 86 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 71 |
| HZG 2.8*18 | 110 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 75 |
| HZG 3*25 | 176.5 | 3-7 | 5 | Y225M-6 | 75 | JZQ900 | 110 |

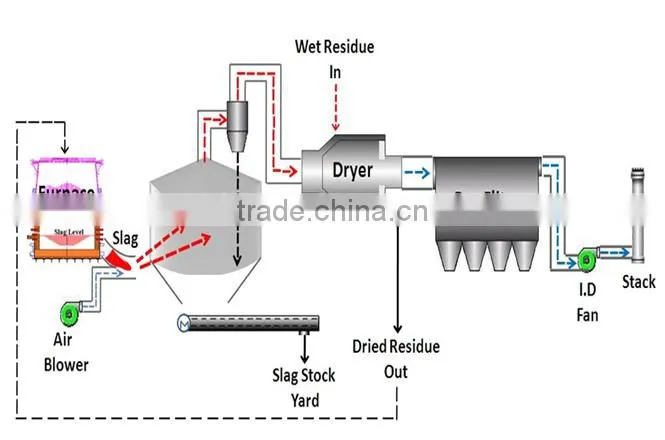

Fly ash production line:
Wet fly ash------Rotary coal dryer------stock bin------ball mill------final product-------bagging
Equipment needed for Rotary coal dryer production line:
1.Boiling furnace
2.Rotary coal dryer
3.Dust collector
4.Crusher
5.Fan
6.Ball mill
7.powder concentrate machine
Materials can be dried by Rotary coal dryer:
Biomass: sawdust, wood chips, wood veneer
Ore: ore slag, mineral power, limestone, quartz, fluorite powder, sand, iron ore, metal ore concentrates, metal tailings, coal , etc.
Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder, clay, diatomaceous earth, bauxite
Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
Agriculture: straw, grass, turf, animal manure, beans waste
Rotary coal dryer shipping:
In order to help you to recommend suitable Rotary coal dryer , can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
