Help CenterLab Drum Wet Low-intensity Magnetic Separator
Related Products

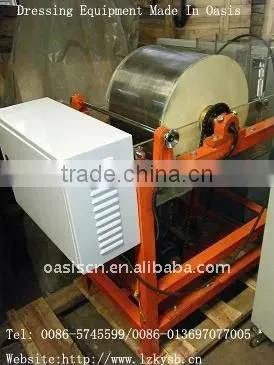

XCRS Wet Magnetic Separator is mainly designed for labs for metallic mineral processing. It conducts concurrent magnetic separation of fine-grain ores with strong magnetism by we of Wet Method. It is small in volume, light in weight, simple in operation and convenient in maintenance. However, it is unsuitable to be used in beneficiation by the former corrosive.

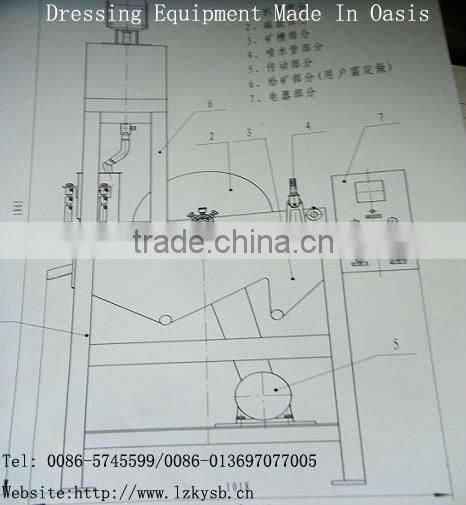

Drum machine built with open magnetic system, as to the mine quickly when the sub-elected magnetic minerals, magnetic minerals in the tank was in the dark magnetic suction surface, get rid of sludge by magnetic stirring and finally with the drum heads With flush discharged outside the rotating machine.
Model | Unit | XCRS 400/300 |
Magnetic impeller size | mm | 400/300 |
Rotating speed | r/min | 25 |
Capacity size | kg/h | 20-60 |
Feed size | mm | 3 |
Intensity | GS | 1250(100KA/m) |
Voltage | V | 380 |
power | kw | 0.25 |
Supply equipment | set | 1 one |
Overall dimensions | mm | 783/600/1200 |
Weight | kg | 250 |
