Specifications
1. The use of the centrifugal force improved flow membrane dressing,2. Energy conservation and environment protection

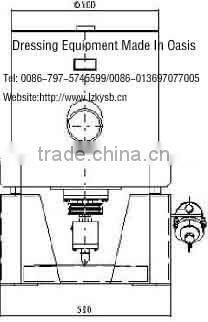

JXL centrifugal processing machines using different mineral grain for the density difference between the separation of magnetic particles is realized, and the use of the centrifugal force improved flow membrane dressing, greatly promoted the disposal capacity and reduce the size of the recovery limit. Apply to the micro granular level black, non-ferrous and precious rare metal mineral separation recycling, also can be used for all kinds of mine tailings of deposits in the recovery of the fine.
model | JXL-400 |
roller diameter(mm) | 400 |
Drum speed(rpm) | 400-1000 |
feed preparation unit size (mm) | 0.074mm For80% |
concentration (%) | 5-20 |
Dry processing ore(t/h) | 0.01-0.02 |
power(kw) | 1.5 |
Flush water pressure (mpa) | 0.2-0.3 |
Water Consumption(m3/h) | 0.3-0.5 |
weight(t) | 0.45 |
Overall dimensions (mm) | 750/860/1990 |
