Specifications
1.Simple structure2.low cost
3.easy to install and operate
4.virtually no maintenance
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 )is production

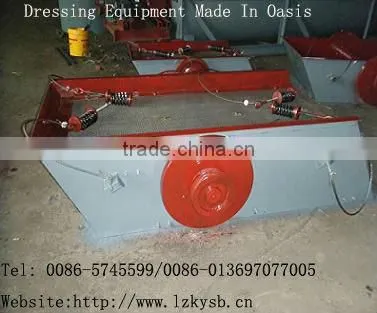

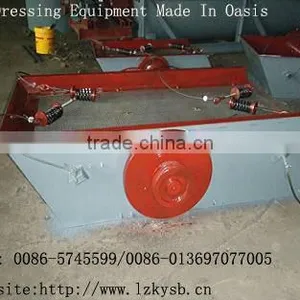

The introduction of OASIS High frequency Vibrating Screen :
YK series vibrating screen is a high efficiency vibrating screen produced by our company introduction of German technology .They have the features of strong excitation ,simple structure ,easy maintenance ;flexible connection ,smooth transport ,high screening efficiency ,large handling capacity ,long life span ,low power consumption and low noise .They are widely used in sand production line ,the screening classification of the materials from the gravel plant and stones factory .
.
Vibrating Screen Features :
1 Used the eccentric block as excitation force ,strong excitation .
2 High strength bolt connection between sieve beam and screen box ,no welding .
3 Simple structure ,easy maintenance .
4 Use tyre couplings ,flexible connection ,stable operation .
5 High screening efficiency ,large handling capacity ,long life span .
Model | Screen Surface Layers | Screen Size
(mm) | Sieve Size
(mm) | Max Feed Size (mm) | Handling Capacity
(m3/h) | Vibration Frequency
(r/min) | Double Amplitude | Motor Power (kw) | Weight (kg) | Screen Surface Inclination | Screen Surface Specification (mm) |
YK1236 | 1 | 4.3 | 1-100 | 200 | 30-160 | 970 | 8 | 5.5 | 3210 | 20o | 1200x3600 |
2YK1245 | 2 | 5.4 | 3-50 | 200 | 32-180 | 970 | 7 | 11 | 4320 | 20o | 1200x4500 |
YK1530 | 1 | 5.25 | 3-50 | 200 | 34-200 | 970 | 8 | 11 | 3355 | 20o | 1500x3000 |
YK1545 | 1 | 6.75 | 3-50 | 300 | 44-258 | 970 | 8 | 11 | 3900 | 20o | 1500x4500 |
4YK1548 | 4 | 7.2 | 3-100 | 300 | 47-275 | 730 | 8 | 18.5 | 7090 | 20o | 1500x4800 |
YK1848 | 1 | 8.8 | 3-100 | 400 | 56-330 | 755 | 11 | 15 | 7122 | 20o | 1800x4800 |
3YK1848 | 3 | 8.8 | 3-100 | 400 | 56-330 | 970 | 7 | 22 | 6935 | 20o | 1800x4800 |
YK1860 | 1 | 10.8 | 3-100 | 400 | 66-630 | 970 | 8 | 15 | 7222 | 20o | 1800x6000 |
YK2160 | 1 | 12.6 | 3-100 | 400 | 81-720 | 970 | 8 | 18.5 | 8860 | 20o | 2100x6000 |
2YK2160 | 2 | 12.6 | 3-100 | 400 | 81-720 | 970 | 8 | 30 | 9240 | 20o | 2100x6000 |
YK2460 | 1 | 14.4 | 5-150 | 400 | 150-810 | 730 | 8 | 22 | 6200 |
|
