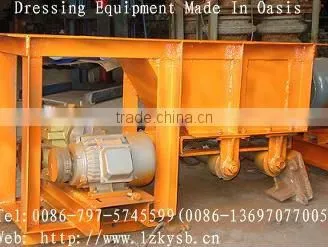

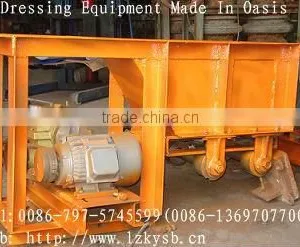

Help CenterSwaying Feeder/Jig Feeder/Trough Feeder/Discfeeding Mingeral Machine Swinging Feeder
Related Products
-
Linear Vibrating ScreenUS$ 1,000 - 1,500MOQ: 1 Set -
Riddle Drum/Screening Washer/Separating Drum/ Sizing Trommel/ Trammel/ Trommel Screen/Separating PlantUS$ 111 - 5,555MOQ: 1 Set
-
YA SZZ Circular Vibrating ScreenUS$ 1,000 - 1,500MOQ: 1 Set
-
Condole Type Double Deck Vibrating ScreenUS$ 1,000 - 1,500MOQ: 1 Set
-
Seat Type Vibration Screen.US$ 1,000 - 1,500MOQ: 1 Set
Specifications
1.Simple structure2.low cost
3.easy to install and operate
4.virtually no maintenance
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 ) are production
Detailed Product Description
It is widely used in the industry of the metallurgy, mining, chemical, construction, plant coal and so on.
Trough feeder is applied in the primary crushing as the equipment of the feeder. It is widely used in the industry of the metallurgy, mining, chemical, construction, plant coal and so on.
Trough feeder can be set up on the ground and can also be hoisting the ore bin on the discharge port. Slot backplane for reciprocating movement, the pumping of 20-60 times / min, stroke is 20-200mm. Stroke can be adjusted appropriately eccentric device, eccentricity of stroke in half. According to some mine, for cohesive ore, eccentricity should not be less than 30mm. Trough feeder feed trough width of about 2-2.5 times the maximum particle size. The biggest through feeder can meet the particle size is less than 500mm to the mining of iron ore. Most common specification is 980×1240 through feeder, the feeder size for the 350-0mm, for a 400 × 600 jaw crusher feeding equipment.
Trough feeder technical parameters
Model | motor |
Feeding Size (mm) | Stroke (mm) | Capacity (t/h) | Dimension (mm) (L×W×H) | Weight (t) | |
model | Power (kw) | ||||||
400×400 | Y90L-6 | 1.1 | 100 | 0-20 | 2.5-3 | 2350×725×625 | 0.55 |
600×500 | Y112M-4 | 4 | 200 | 0-50 | 10-50 | 2750×910×855 | 1.054 |
980×1240 | Y132M-4 | 7.5 | 350 | 25-75 | 20.7-69 | 3105×1280×1175 | 1.676 |
