US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangxi, China
Brand Name:
oasis
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamn guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangxi, China
Brand Name oasis
Model Number XCQS
Certification ISO

Specifications

High magnetic intensity
Low energy consumption
Short magnetic circuit
little magnetic flux leakage
big magnetic field dep

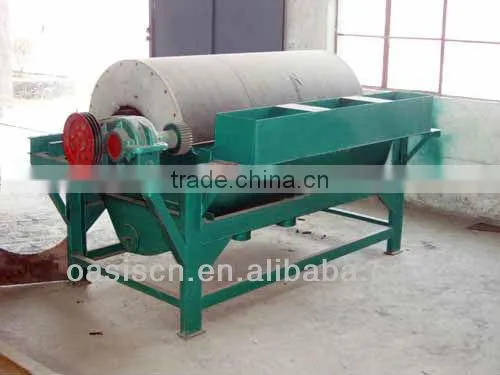

Wet high intensity magnetic separation machinne

prodrct description

1. Separating small size

2. Easy to operate

3. type: wet and dry

4.Energy conservation and environment protection

XCQS Wet High Intensity Magnetic Separation Machines for metal mineral processing laboratory, mining engineering experiment, the middle experimental plant, which uses fine-grained wet method magnetic ore separator, only a small amount of sample can be tested technical indicators of mineral iron content. Separator small size, easy to operate. The device is not suitable for beneficiation test with a corrosive liquid. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards. The role of large area magnetic machine, processing capacity, tooth plate made of Poly magnetic media, magnetic field intensity and magnetic field gradient is high, the low-grade iron ore oxidation experiments very effective.

Technical parameters



Model

Uite

XCSQ 50/70

Size of separating tank

mm

50/70/220

Coil cooling method

r/min

Forced air cooling

Caparating size

kg/h

4-5

Feed size

mm

1

Intensity

GS

23000(1840KA/m) Adjustable steplessly

Voltage

V

380

Overall consumed power

kw

0.4

Excitation power

input



220V,50HZ

output



0-118V,1-25A

Overall dimensions

mm

783/700/1500

Weighe

kg

250
