Specifications
1. High efficiency 2. Easy operation 3. Long life time 4. Easy maintenance5.Adjustable magnetic field intensity
XCG(Q)S 50 Magnetic Tube or Davis Analyzing Tube is applicable in labs. of mine, metallurgical, geological and other industries. It is designed to determine magnetic content in strong magnertic mineral in the mineral processing operation. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources, in compliance with the Industrial standards

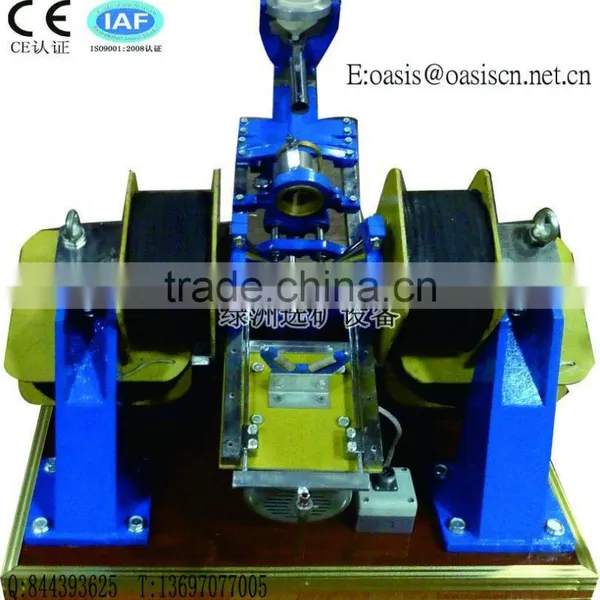

Magnetic Tube is C Type electromagnet fitted with glass tube between pole ends to reciprocately move and swing.When the test materials to be separated pass therough magneric fields.the magnetic portion will be absorbed near the tube walls and the non-magneric portion will be washed down by water in the mechanical movement and discharged.. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards
Model |
Uite | XCGQ 50 |
Tube Dia | mm | 50 |
Vibrating Freq | r/min | 70 |
Gap | mm | 52 |
Feed size | mm | 0.5 |
Intensity | GS | 2500(200KA/m) |
Voltage | V | 50HZ 220 |
Exciting power | VA | 500 |
Supply equipment | taiwan | One excitation power supply |
Overall dimensions | mm | 1000/800/500 |
Weighe | kg | 200 |
