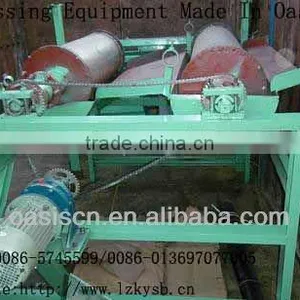

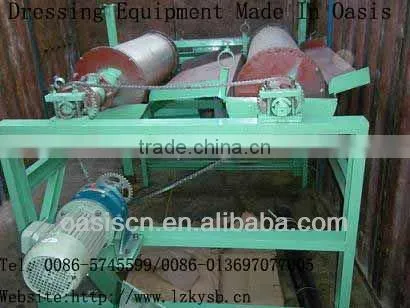

Help CenterStrong-intensity Magnetic Separator
Related Products
-
Reliable Quality Lab Drum Wet Low-intensity Magnetic Separator//Magnetic Ore Separator/Wet Drum Separator/High Gradient ElectroUS$ 1,000 - 5,000MOQ: 1 Set -
Low Price High Strength DLS Pulsating High Gradient Magnetic Separation MachineUS$ 1,000 - 9,000MOQ: 1 Set
-
Laboratory Magnetic Ore Separator / Small Size Wet Low-intensity Magnetic SeparatorUS$ 1 - 9,000MOQ: 1 Set
-
Laboratory Magnetic Tube/ Laboratory Magnetic Separator EquipmentUS$ 1,000 - 8,000MOQ: 1 Set
-
Laboratory Magnetic Separator/Experimental Magnetic Separator/ Small Size Magnetic Separator/US$ 1 - 9,000MOQ: 1 Set
Wet drum separator is used in magnetic media recovery, purification of solids carried in liquid suspension, and iron ore,etc.
Wet magnetic separator:
The liquid flows through a semi-circular separating chamber beneath a stainless steel drum to which the magnetisable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all Magnetic-Separators.
For recovering Magnetic/Ferro-silicon in dense media plants and iron ores, wet drum separators are mainly used. They remove contamination from the product stream, increasing product purity and plant productivity. In the applications where the product purity is most essential, the wet drum separators can use NDFeB Magnets, which can remove very fine and weak contaminants even from dense materials.
Wet magnetic separator features:
1) Wet drum magnets have high magnetic recovery and discharge.
(2) The feed slurries recover the magnetic.
(3) It is available in single or multiple drum applications.
(4) Recover magnetic solids in as clean as a magnetic concentrate.
(5) Permanent magnet assembly eliminates coil burn-outs
(6) The magnet/pole elements are bolted to a mild steel shaft.
(7) The drum is made from thick stainless steel for long service life.
(8) Wet drum separators are available in different configuration like single drum, double drum and multiple drum. In double drum two separators are arranged back to back with a common feed back.
Wet magnetic separator technical specification :
Specificiation |
Magnetic field strength |
Capacity (t/h) |
Motor(kw) |
Weight(kg) |
CTB600×900 |
1450 |
8-15 |
1.1 |
910 |
CTB600×1800 |
1500 |
15-25 |
2.2 |
1340 |
CTB750×1800 |
1550 |
30-45 |
3 |
2050 |
CTB900×1800 |
1650 |
35-60 |
4 |
3000 |
CTB1050×2400 |
1650 |
60-95 |
5.5 |
5020 |
CTB1200×3000 |
1650 |
80-150 |
7.5 |
7800 |
|
Send Inquiry to This Supplier
