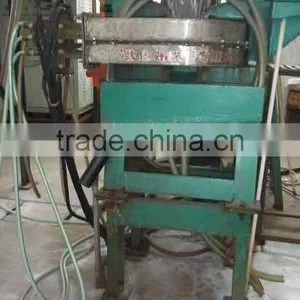

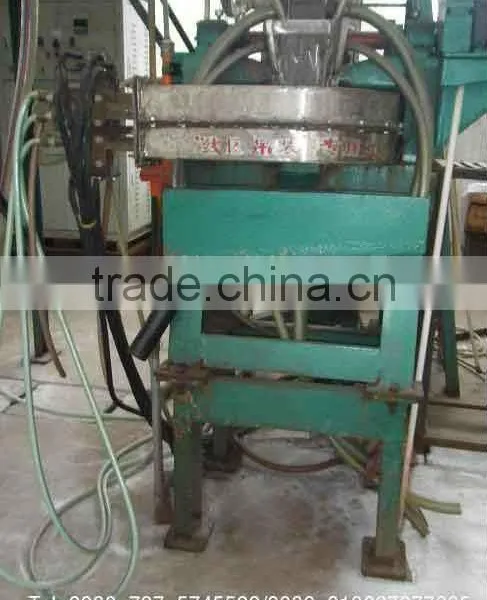

Help CenterDLS Pulsating High Gradient Magnetic Separation Machine
Related Products
-
Magnetic Separator /Magnetic Ore Separator/Wet Drum SeparatorUS$ 27,200 - 27,300MOQ: 1 Set -
DLS Pulsating High Gradient Magnetic Separation MachineUS$ 125,500 - 535,000MOQ: 1 Set
-
Great Performance Electrostatic Separator/ Most Efficiency High Voltage Electrostatic SeparatorUS$ 32,550 - 35,000MOQ: 1 Set
-
High Capacity Scrap Electronic/Electrostatic Separator MachineUS$ 125,500 - 535,000MOQ: 1 Set
-
High Separation Rate Electrostatic Separator Supplier/Great Performance Electrostatic SeparatorUS$ 125,500 - 535,000MOQ: 1 Set
Specifications
1. Max. magnetic intensity: 8,000 OE;2. Easy to operate3. The number of axial magnetic can be adjusted in accordance with mate
DLS pulsating high gradient magnetic separation machine is best and technology at home and abroad and performance of the most advanced strong magnetic separation equipment, the aircraft from the fundamental solution to the flat ring strong magnetic separation machine peace ring the high gradient magnetic medium easy to jam the world technical problems, it has a big, enrichment ratio to feed size, concentration and grade fluctuation adaptable, reliable and convenient operation and maintenance, the weak magnetic separation ore concentrate grade and realized the high recovery of high analyzed advantages
Flat ring the high gradient magnetic separation machine to feed size demand is strict, we studied the unique magnetic system structure and optimized combination of magnetic medium, make DLS magnetic separation machine feed size limit of 2.0 mm
specifications |
DLS-200 |
DLS-250 |
DLS-300 |
|
ring diametwer(mm) |
2000 |
2500 |
3000 |
|
rotating speed of ring(r/min) |
0-4 |
0-4 |
0-4 |
|
ore-feeding size (mm) |
-1.3 (30~100) |
-1.3 (30~100) |
-1.3 (30-100) |
|
ore-feeding concentration(%) |
10~40 |
10~40 |
10-40 |
|
slurry put through(m³/h) |
100~200 |
180~450 |
350-650 |
|
|
Dry mineral processing capacity(t/h) |
50~80 |
80~150 |
150-250 |
|
background field(T) |
0~1.1 |
0~1.1 |
0~1.1 |
|
energizing current(A) |
0~1400 |
0~1700 |
0~1800 |
|
energizing voltage(V) |
0~53 |
0~55 |
0~62 |
|
energizing power(KW) |
0~74 |
0~94 |
0~112 |
|
|
Swivel ring power(KW) |
5.5 |
11 |
18.5 |
|
pulsating power(KW) |
7.5 |
11 |
18.5 |
|
pulsating stroke (mm) |
0~30 |
0~30 |
0-30 |
|
pulsating frequency (r/min) |
0~300 |
0~300 |
0-300 |
|
water pressure (mpa) |
0.2~0.4 |
0.2~0.4 |
0.2-0.4 |
|
water consumption (m³/h) |
100~200 |
200~400 |
350-530 |
|
machine weight(t) |
50 |
105 |
175 |
|
weight of heaviest part(t) |
16 |
15 |
25 |
|
overall dimension |
length(mm) |
4200 |
5800 |
6600 |
wide(mm) |
3550 |
5000 |
5300 |
|
high(mm) |
4200 |
5400 |
6400 |
|
