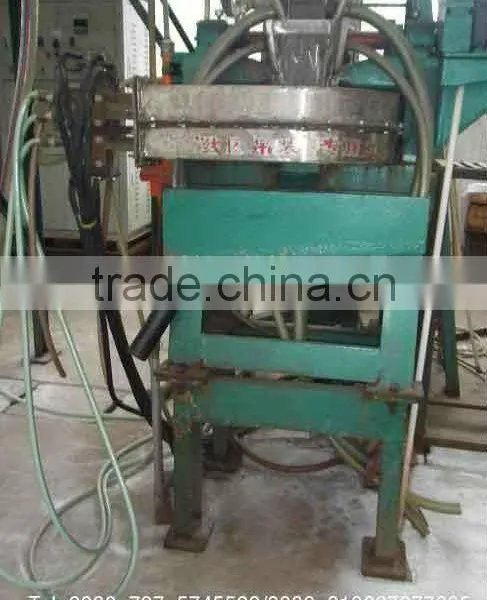

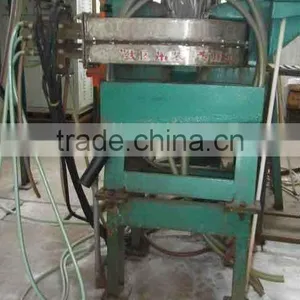

High Capacity Scrap Electronic/Electrostatic Separator Machine

FOB Price

US$ 125,500 - 535,000 / Set

1 Set(Min. Order)

Port Xiamen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	50-80 t/h	Place of Origin	Jiangxi, China
Brand Name	oasis	Model Number	DLS-200
Voltage	0-53 V	Power(W)	0-74000
Dimension(LWH)	4200/3550/4200	Weight	16 t
Certification	ISO9001:2008	Warranty	One year
After-sales Service Provided	Overseas service center available

Product Description

DLS pulsating high gradient magnetic separation machine is best and technology at home and abroad and performance of the most advanced strong magnetic separation equipment, the aircraft from the fundamental solution to the flat ring strong magnetic separation machine peace ring the high gradient magnetic medium easy to jam the world technical problems, it has a big, enrichment ratio to feed size, concentration and grade fluctuation adaptable, reliable and convenient operation and maintenance, the weak magnetic separation ore concentrate grade and realized the high recovery of high analyzed advantages

Flat ring the high gradient magnetic separation machine to feed size demand is strict, we studied the unique magnetic system structure and optimized combination of magnetic medium, make DLS magnetic separation machine feed size limit of 2.0 mm

specifications		DLS-125	DLS-150	DLS-175	DLS-200	DLS-250	DLS-300
ring diametwer(mm)		1250	1500	1750	2000	2500	3000
rotating speed of ring(r/min)		0-4	0-4	0-4	0-4	0-4	0-4
ore-feeding size (mm)		-1.3 (30~100)	-1.3 (30~100)	-1.3 (30~100)	-1.3 (30~100)	-1.3 (30~100)	-1.3 (30-100)
ore-feeding concentration(%)		10~40	10~40	10~40	10~40	10~40	10-40
slurry put through(m³/h)		20~50	50~100	75~150	100~200	180~450	350-650
Dry mineral processing capacity(t/h)		10~18	20~30	30~50	50~80	80~150	150-250
background field(T)		0~1.1	0~1.1	0~1.1	0~1.1	0~1.1	0~1.1
energizing current(A)		0~1000	0~1050	0~1400	0~1400	0~1700	0~1800
energizing voltage(V)		0~35	0~42	0~44	0~53	0~55	0~62
energizing power(KW)		0~35	0~44	0~62	0~74	0~94	0~112
Swivel ring power(KW)		1.5	3	4	5.5	11	18.5
pulsating power(KW)		2.2	4	4	7.5	11	18.5
pulsating stroke (mm)		0~20	0~30	0~30	0~30	0~30	0-30
pulsating frequency (r/min)		0~300	0~300	0~300	0~300	0~300	0-300
water pressure (mpa)		0.15~0.3	0.2 ~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2-0.4
water consumption (m³/h)		30~50	60~100	80~150	100~200	200~400	350-530
machine weight(t)		14	20	35	50	105	175
weight of heaviest part(t)		4	5	11	16	15	25
overall dimension	length(mm)	3200	3600	3900	4200	5800	6600
	wide(mm)	2340	2900	3300	3550	5000	5300
	high(mm)	2700	3200	3800	4200	5400	6400
