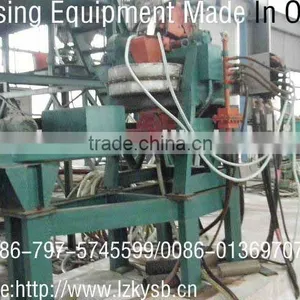

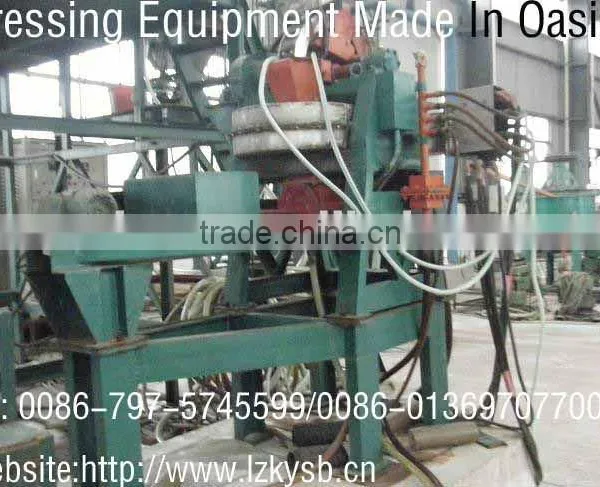

DLS pulsating high gradient magnetic separation machine

FOB Price

US$ 125,000 - 535,100 / Set

1 Set(Min. Order)

Port Guangzhou
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	0.1-0.5 t/h	Place of Origin	Jiangxi, China
Brand Name	oasis	Model Number	DLS-75
Voltage	0-17 V	Power(W)	550
Dimension(LWH)	2000/1360/1680	Weight	3 t
Certification	ISO9001:2008	Warranty	One year
After-sales Service Provided	Overseas service center available

Product Description

DLS pulsating high gradient magnetic separation machine is best and technology at home and abroad and performance of the most advanced strong magnetic separation equipment, the aircraft from the fundamental solution to the flat ring strong magnetic separation machine peace ring the high gradient magnetic medium easy to jam the world technical problems, it has a big, enrichment ratio to feed size, concentration and grade fluctuation adaptable, reliable and convenient operation and maintenance, the weak magnetic separation ore concentrate grade and realized the high recovery of high analyzed advantages

Flat ring the high gradient magnetic separation machine to feed size demand is strict, we studied the unique magnetic system structure and optimized combination of magnetic medium, make DLS magnetic separation machine feed size limit of 2.0 mm

specifications		DLS-50
ring diametwer(mm)		500
rotating speed of ring(r/min)		0-4
ore-feeding size (mm)		-1.0 (30~100)
ore-feeding concentration(%)		10~40
slurry put through(m³/h)		0.5~1.0
Dry mineral processing capacity(t/h)		0.05~0.25
background field(T)		0~1.1
energizing current(A)		0~1300
energizing voltage(V)		0~12
energizing power(KW)		0~16
Swivel ring power(KW)		0.18
pulsating power(KW)		0.37
pulsating stroke (mm)		0~50
pulsating frequency (r/min)		0~400
water pressure (mpa)		0.1~0.2
water consumption (m³/h)		0.75~1.5
machine weight(t)		2
weight of heaviest part(t)		0.5
overall dimension	length(mm)	1800
	wide(mm)	1400
	high(mm)	1320
