Cocktail and Juice Straw Making Machine
Brief Introduction:
Cocktail and Juice Straw Making Machine Model:CY01 is a tubing extrusion line.
It is composed of extruder and die,Vacuum calibration and cooling unit, hauloff and rotary cutter or coiler, all the machine's controls base with the control elements ergonomically adapted to permit easy operation. The system is also suitable for extruding straws, refiltubes and most small diameter tubing and a wide range of industrial applications.
Main Specification of Cocktail and Juice Straw Making Machine:
| Typical Capacity: | |
Drinking Straws | 30,000 --- 40,000pcs/hour |
| Cotton swab sticks | 60,000pcs/h |
| Pen Refills | 40,000pcs/h |
Min. Diameter | 3.0mm |
Max.Diameter | 12.00mm |
Min. Length | 90mm |
Max.Length | 300mm |
Diameter of Extruder Screw | 50mm |
Total Power | 25 KW |
Working Power | 10 KW |
| Material | PP |
| Ends | 90°/90°,90°/45°,90°/60°,45°/45°,60°/60° |
| Colors | Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES |
| Operator | One operator is sufficent to run the line |
Area Requirement | Length: around 8 meter. |
| Width: around 2 meter. | |
Raw Material | Polypropylene (P.P ) |
Grade | Extrusion & Drawing |
Shape | Pellet |
Melt Index | 2.5 |
Drawing Intensity | 380/ 350 |
Kneading Modulus | 17000 |
Rockwell Hardness | 100 |
Vica Soften Temperature | 160 C |
Rotary Cutter:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding. Inverter control
Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.

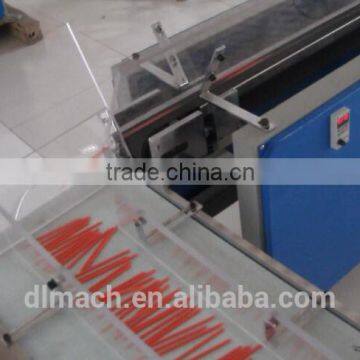

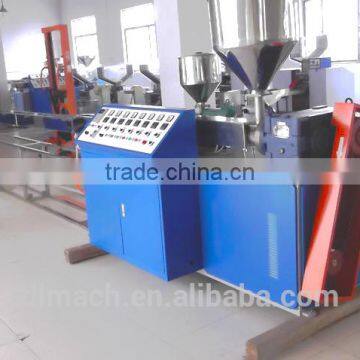

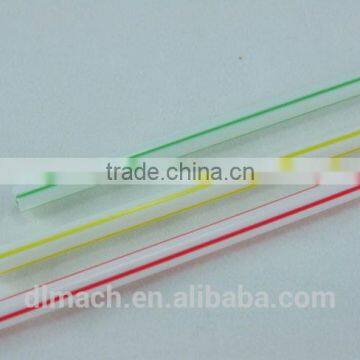

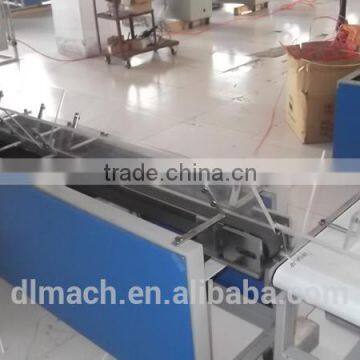

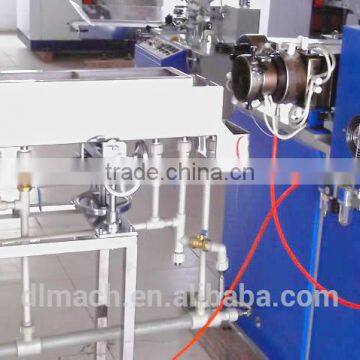

Pictures of Cocktail and Juice Straw Making Machine:

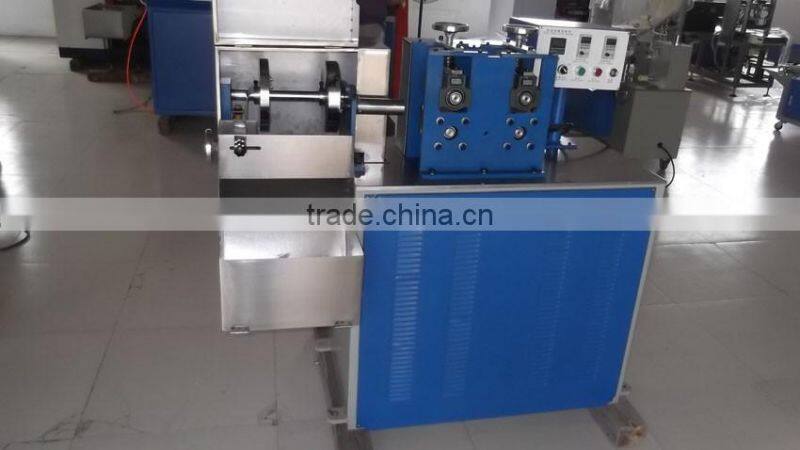

Haul-off & Cutting Machine
Tool Box
We can supply plastic drinking straw machine in one color, two colors, three colors.
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The Cocktail and Juice Straw Making Machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the Cocktail and Juice Straw Making Machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the straw machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
Dalian Mach Co., Ltd. have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our plastic drinking straw machine will put on good performance based on high quality.
Our plastic drinking straw making machine have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service
Q:Why choose our Cocktail and Juice Straw Making Machine?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
Other Straw Bending Machine and Straw Packing Machine
