Home > Packaging & Printing > Packing Machinery > Wrapping Machine > CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine photo-1

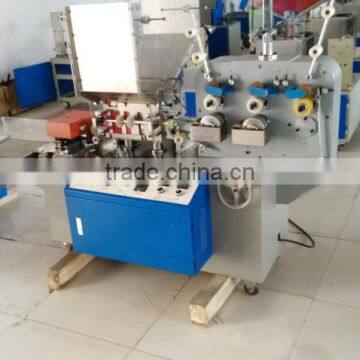

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine photo-2

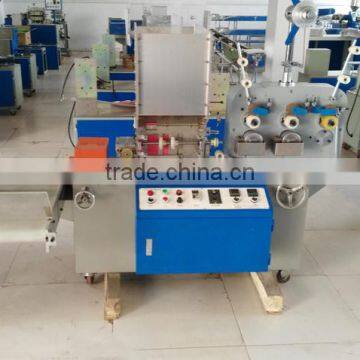

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine photo-3
CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine photo-4
US$ 8,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Film
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V 50HZ
Power 900W
Place of Origin Liaoning, China
Brand Name MACH
Model Number CY031
Dimension(L*W*H) 2000x1250x1900mm
Weight 500KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine





Product Description

Brief Introduction of Individual Drinking Straw Filling and Sealinging Machine:

Model CY031 is a full automatic single straw packing machine. Teh machine is composed of motor, paper stripe supporting assembly, printing section, straw feeding section, sealing section, take off section and electronic controlled system, etc.

The machine provides a high packing rate, and automation, two-color printing capacity.To complete printing filling in & packing at a time. It not only makes your straw packing operations easier, but also provides you with a high reliability.







Technical Data of drinking straw packing machine:

Driving motor:                    0.75kw
Capacity:                           280- 400 pcs/min
Packing method:            3 sides sealing
Packing material:              Paper, Plastic film, like BOPP
Width of paper:                  25-30mm
Straw Size:                        Dia: 3-12mm;  Length: 180-250mm ( normal)
Other specifications are customizable.
Machine Dimension:         1800x 600 x 1300 mm
Machine Weight:                400 Kgs

Packing Raw Material:
Cigrette Paper,    Size: 29g/m2,    Width: 29mm
Price:    USD2650.00/ton   FOB China Port  ( NET Price )

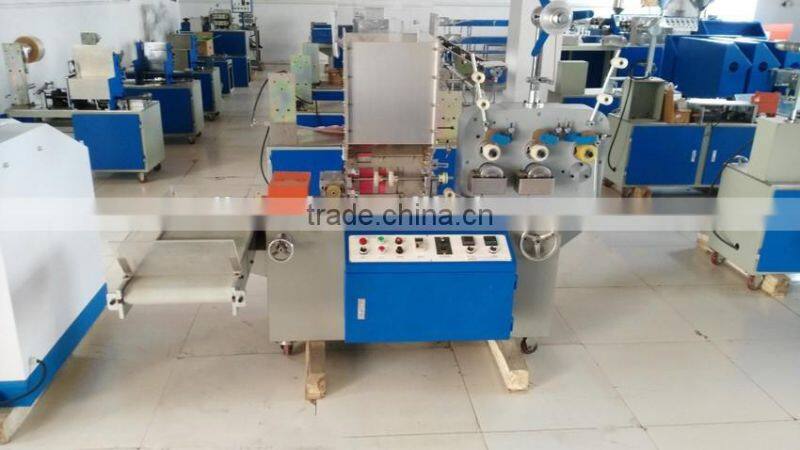

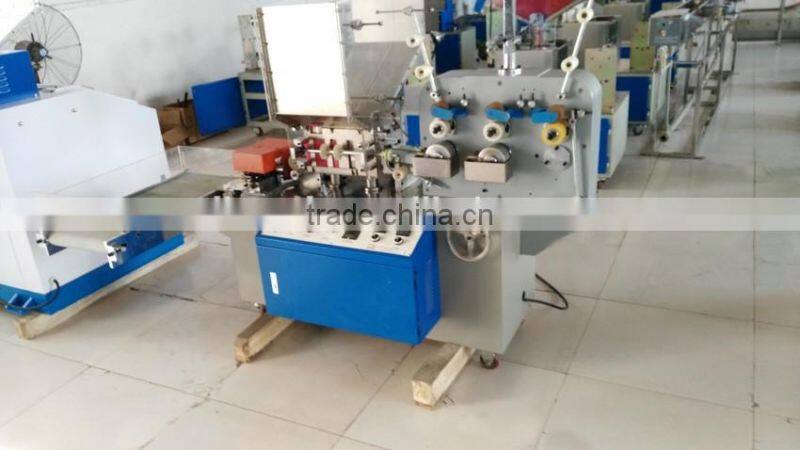

Picture of automatic Individual Drinking Straw Filling and Sealinging Machine:

 CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine

CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine




Packaging & Shipping

 In standard exporting wooden cases:



CY031 High Efficiency Automatic Individual Drinking Straw Filling and Sealinging Machine









Our Services

Quality Warranty:

We supply standard accessories and spare parts accompanied with the machine when shipment.  Within one year after receiving our machine, In the right operation, If  there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately FREE OF CHARGE.



Company Information

  Our factory is professional manufacturer of producing Drinking Straw Making Machine and Production Line in China. Our Drinking Straw Machines are sold to many countries. Such as: Singapore , India , Indonesia , Malaysia , U.A.E , South Africa and other countries. Our machines are very popular with customers by its high quality and competitive prices.







FAQ

Q: Why choose our small automatic Individual Drinking Straw Filling and Sealinging Machine?

A: 1 . High quality with competitive price
     2 . 25 years export experience
     3 . CE,ISO Certificates
     4 . 12 months quality warranty
     5 . Oversea engineers available for problem resolving



Q: Can we start with small quantity ?What's the MOQ?
A:  We can accept orders with any quantity. The MOQ is 1 unit.

Q:  How can we learn to operate the Individual Drinking Straw Filling and Sealinging Machine?
A:  Operation teaching video and instructions even engineer are available.
