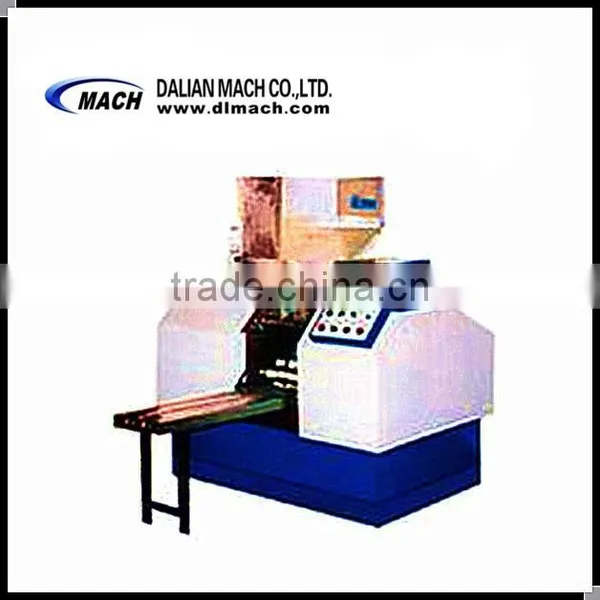

Automatic Straw Bending Machine
The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to form flexible. And delivered to the output conveyor automatically.
The main drum always carrying 12 straws in successive different operations. This development represents a giant step forword for higher production of flexible straws.
2. Characteristics
* High efficiency and high production rate
* Automatic product counting
* Product quantity pre-set. Once the pre-set valut is reached, the machine will stop and an alarm will sound, convenient for quantity packing into bags.
* Automatic machine stop in the event of straw jamming.
3. Specifications
Capacity: 200 -- 300 pcs/min.
Driving motor: 380V, 50Hz, 3-phase, 1.5kw (inverter control)
APPLICABLE STRAW DIMENSIONS
Length of straight straw: 165---260mm
Length of flexible straw: 150---245mm
Inside diameter: 5.8±0.1mm (for 6mm straw)
4.8±0.1mm (for 5mm straw)
3.8±0.1mm (for 4mm straw)
Caution: Change diameter must change spare parts
Wall thickness: 0.15±0.02~0.18±0.02mm
Top section length: 30~50mm (adjustable)
Length of flex. part: 8~11mm (adjustable)
About Our Company:
Dalian Mach Co., Ltd. specializes in exporting all kinds of machinery such as Metal Processing Machines, Paper Processing Machines, Packaging Machines, Rubber Machinery, Pharmaceutical Machines, Daily Product Making Machines and Forklifts. With more than twenty years' experience, our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.
Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service
....
