CY021 Automatic U Shape Drinking Straw Bending Machine
The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to form flexible. And delivered to the output conveyor automatically.
The main drum always carrying 12 straws in successive different operations. This development represents a giant step forword for higher production of flexible straws.
Characteristics of U Shape Drinking Straw Bending Machine:
* High efficiency and high production rate
* Automatic product counting
* Product quantity pre-set. Once the pre-set valut is reached, the machine will stop and an alarm will sound, convenient for quantity packing into bags.
* Automatic machine stop in the event of straw jamming.
Specifications of U Shape Drinking Straw Bending Machine:
Capacity: 200 -- 300 pcs/min.
Driving motor: 380V, 50Hz, 3-phase, 1.5kw (inverter control)
Length of straight straw: 165---260mm
Length of flexible straw: 150---245mm
Inside diameter: 5.8±0.1mm (for 6mm straw)
4.8±0.1mm (for 5mm straw)
3.8±0.1mm (for 4mm straw)
Caution: Change diameter must change spare parts
Wall thickness: 0.15±0.02~0.18±0.02mm
Top section length: 30~50mm (adjustable)
Length of flex. part: 8~11mm (adjustable)

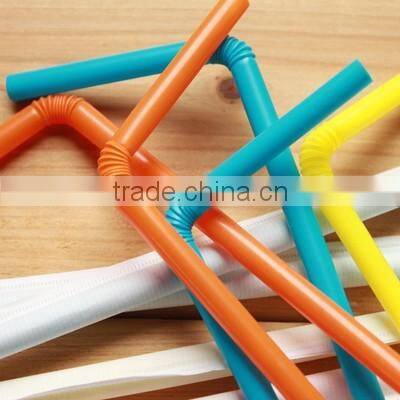

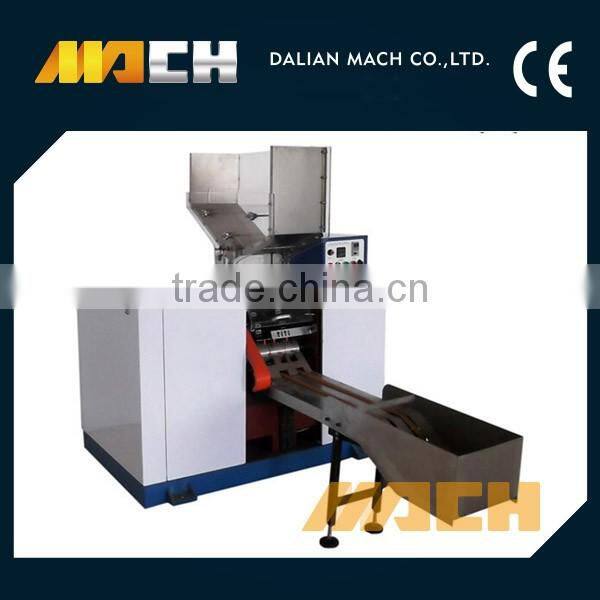

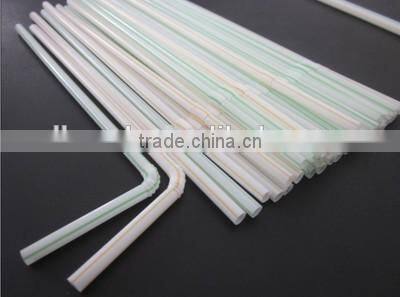

Pictures of U Shape Drinking Straw Bending Machine:
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The U Shape Drinking Straw Bending Machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the U Shape Drinking Straw Bending Machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the straw machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
Dalian Mach Co., Ltd. have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our plastic drinking straw machine will put on good performance based on high quality.
Our plastic drinking straw making machine have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service
