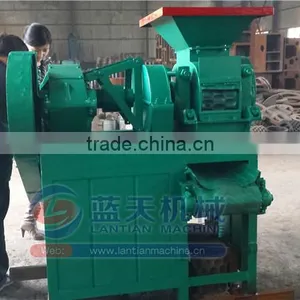

Energy saving calcium charcoal coal carbide briquette ball press machine Working Priciple
This series of briquette machine will pass the power on to the two pressure roller through the reducer.
The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode,
with the roll rotation, material pressure on a small become larger, When the material to the two rollers
rotating line contact point, the pressure of materials has reached the peak.
Tremendous pressure in the role of line, the materials become a finished product from the powder ball
Ball press machine include coal briquetting machine,coke briquetting machine,mineral powder briquetting machine,lime briquetting machine.
Raw materials ---crushing---feeding---mixing---briquetting---drying---finished products
Charcoal ball press machine is widely used in metallurgical, chemical, coal and refractories industries, etc. which is suitable for wet powder briquetting by use of adding an appropriate amount of water and other adhesives. This series machine adopts a unique hydraulic system, so that improve the briquetting rate and strength. It applies to many raw materials, such as light burning magnesium, iron oxide skin, manganese alloy, sludge, gypsum, carbon,silicon carbide, copper powder, iron powder and various refractory, etc.

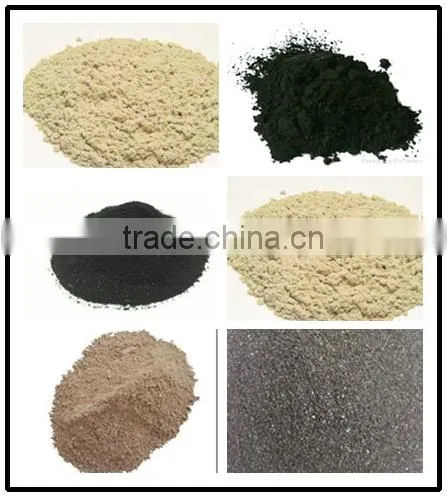

Materials of coal/charcoal ball press machine:
Charcoal powder, carbon dust, bamboo charcoal dust, shisha charcoal powder, coconut shell charcoal powder, jujube charcoal powder, coke charcoal powder, etc. Besides, our briquette charcoal machine can be also used to press coal, brown coal, white coal powder or dust, coke powder, coking coal, etc. This equipment is widely used in the field of chemical, refrectories, ceramics, mining, and metallurgy, etc.
The working flowchart of the charcoal ball press machine
Raw Material—>Crushing—>Feeding—>Mixing—>Pressing—>Drying—>Briquettes
1)raw material prepared: sieving, pulverizing the charcoal lumps/chunks or coal materials into fine powder.
2)Get appropriate binder.
3) Mixing process: mixing coal / charcoal powder with binders and some other additives if needed. 4)Briquetting process/Extruding process: briquetting/extruding mixed charcoal powder into specific shape with charcoal making machine.
5) Drying process: sun drying or automated tunnel type continuous drying
6)Packing process: carton packing, gunny packing, paper packing
Features of energy saving calcium carbide briquette ball press machine
1.The roller is made by hard materials with good wear resistance and long life time.
2.The service life of wearing parts is up to 4000 hours.
3.The machines electricity coal reduce by 60%.
4.The machine is easy to operate and maintain.
5.The molding materials are energy saving, easy to tansport and higher utilization of waste.
6.The final products are smokeless, non-toxic, none peculiar and environmental protection.

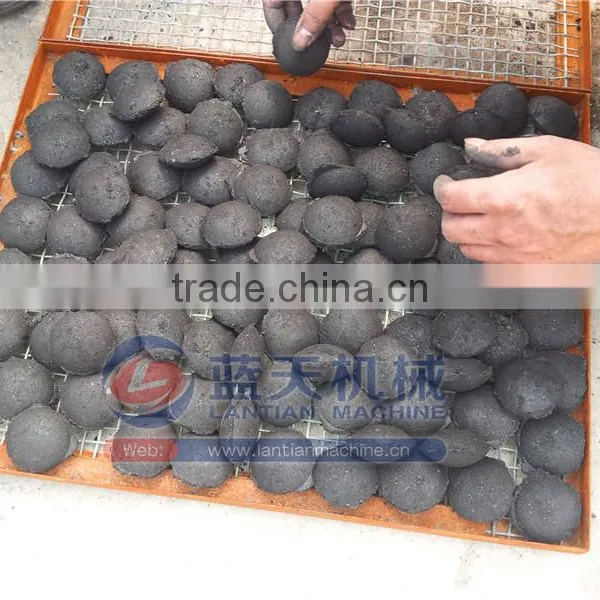

7.The end outlet shape of products can be oval, round, square, ball egg-shaped and pillow shaped.

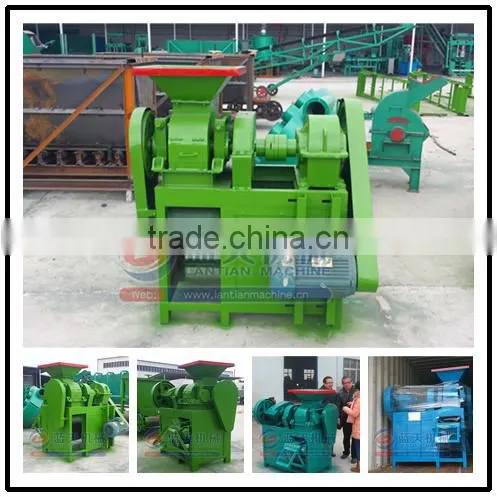

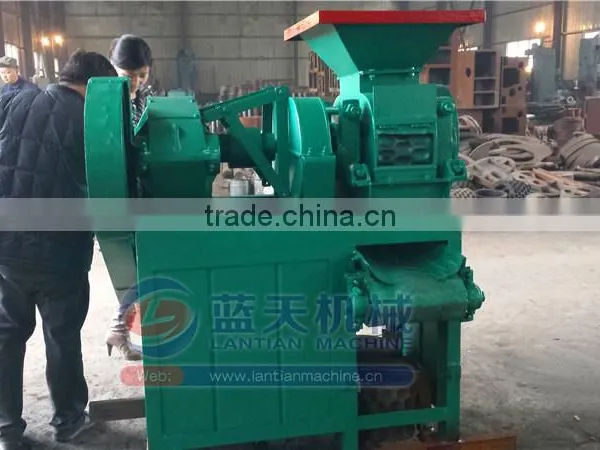

Our coal/charcoal ball press machine consists of three main parts: the feeding part; transmission part; molding part.
1. The feeding part: it is meanly for coal powdery material from hopper evenly into the machine between the rollers for briquetting.
2. The transmission part: it is the main drive system, including the motor, reducer, triangle strip, coupling, driving spindle, open gear.
Technical parameters of charcoal coal ball press machine:
| Model | Capacity | Roller diam | Motor power | Pressure | Roller speed | Briquette size |
| LT-290 | 1.5-2 t/h | 290 mm | 5.5 kw | 40 | 15-17 r/min | 10-80 mm |
| LT-360 | 2.5-4 t/h | 360 mm | 7.5 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-450 | 4-5 t/h | 450 mm | 15 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-500 | 6-8 t/h | 500 mm | 22 kw | 60 | 15 r/min | 10-80 mm |
| LT-650 | 10-15 t/h | 650 mm | 30 kw | 80 | 15 r/min | 10-80 mm |
| LT-850 | 25-35t/h | 850 mm | 37-45 kw | 100 | 13 r/min | 10-80 mm |
| LT-1000 | 35-40 | 1000 mm | 75-90 kw | 120 | 12 r/min | 10-80 mm |
Gongyi Lantian mechanical plant is located in Gongyi,which is a enterprise with nearly 30 years history,Our factory mainly product coal equipment, charcoal equipment, drying equipment, mineral processing equipment, such as ball briquette machine, dryer, hydraulic press machine, tablet machine, granulator, extrude machine, charcoal machine, honeycomb briquet machine or other auxiliary equipment, etc.
Before the sales
1. According to the customer's requirement, provide the most suitable project design, process design and the purchase program.
2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the Activated Carbon Tennis Ball Making Machine.
2. Lead to visit all of our machines.

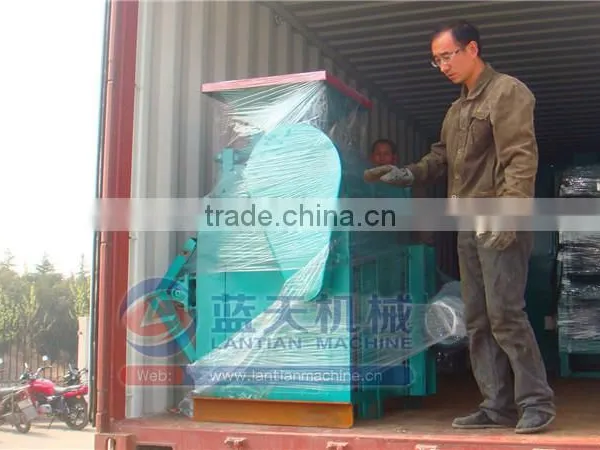

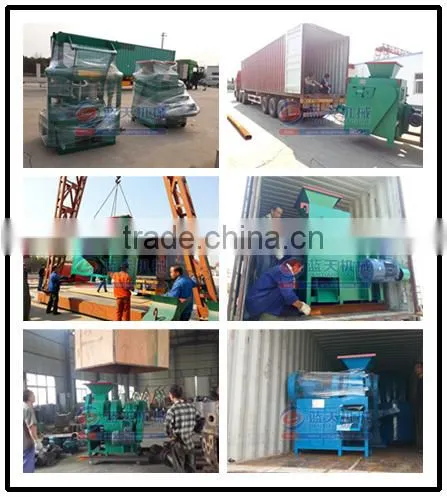

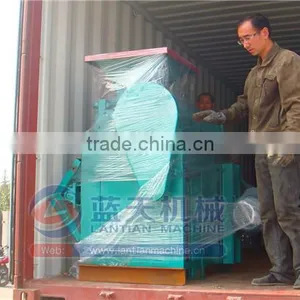

3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.
