introduction
1. Coal powder briquettes making machine is a machine using a hydraulic cylinder to generate a compressive force.
2. Coal powder briquettes making machine uses the hydraulic equivalent of a mechanical lever.
3.Coal powder Briquettes making machine is widely used in metallurgical, chemical, coal and refractories industries, suitable for wet powder briquetting, which is, adding an appropriate amount of water and other adhesives.
This series briquette making equipment uses a unique hydraulic system, improving the briquetting rate and strength.
4. It is suitable for many materials such as light burning magnesium, iron oxide skin, manganese alloy, sludge, gypsum, carbon, silicon carbide, copper powder, iron powder and various refractory materials.
Characteristics of hydraulic coal sawdust briquette machine
1). Operate easily and stably;
2). Convenient charging;
3). The machine can produce products with different shapes and specifications by changing the roller;
4). Use different roller to make different shape and size briquettes according to the users needs to meet and the demands of the market;
5). Multi-use, it can make different material briquettes.
6). High briquette ratio.
7). High intensity and high quality.
8). Easy operation and no flying dust
9). Smokeless, non-toxic, no peculiar smell, environment protective
1) We have two classes: mechanical type and hydraulic type.
Hydraulic type has larger pressure, even some not shaping materials, such as dry powder, fertilier, AL powder, iron powder, etc, can press good shape, also the pressure can be adjusted according to different raw material.
2) Different types: 290,360,450,550,650,750,850,1000,etc.
Take 290 the roller diameter is 290mm, finished charcoal briquette size is 20-60mm.
Parameter information
|
Model
(unit) |
Power
(kw) |
Capacity
(kg/hr) |
Rollers Diameter (mm) |
Briquette diameter (mm) |
Max feeding size (mm) |
Material of Roller
|
Packing Dimension
|
LTQ-290 |
5.5 |
1500-3000 |
290 |
Less than 50 |
3 |
Mn65 |
customized |
LTQ-360 |
7.5 |
2500-5000 |
360 |
Less than 50 |
3 |
Mn65 |
customized |
LTQ-450 |
22 |
5000-8000 |
450 |
Less than 50 |
3 |
Mn65 |
customized |
LTQ-650 |
30 |
8000-16000 |
650 |
Less than 50 |
3 |
Mn65 |
customized |
LTQ-1000 |
55 |
18000-25000 |
1000 |
Less than 50 |
3 |
Mn65 |
customized |

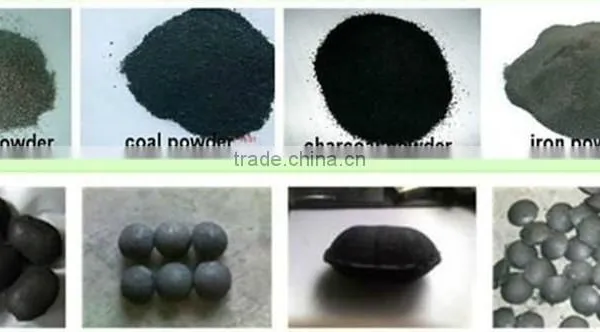

3)suitable raw materials can be Coal, coal fine, coal slurry, charcoal, charcoal dust, charcoal fine, metal powder, metal scrap, limestone, copper, sludge, iron oxide, peat, Carbon black, mineral powder, white coal, Lignite coal, brown coal
4) Four-rollers charcoal briquette machine: in order to reduce density between charcoal powder and make best quality charcoal briquettes, we design four rollers charcoal briquette machine, which can press charcoal powder two times.
Working principle of hydraulic coal sawdust briquette machine
1.This series of hydraulic coal sawdust briquette machine will pass the powder on to the two pressure roller through the reducer.
2.The two sides and roll rotation, in both the rotating roll.
3.Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger.
4.When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak.
5.Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

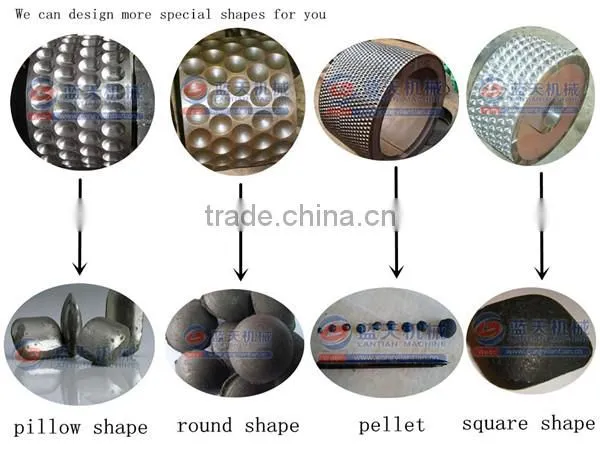

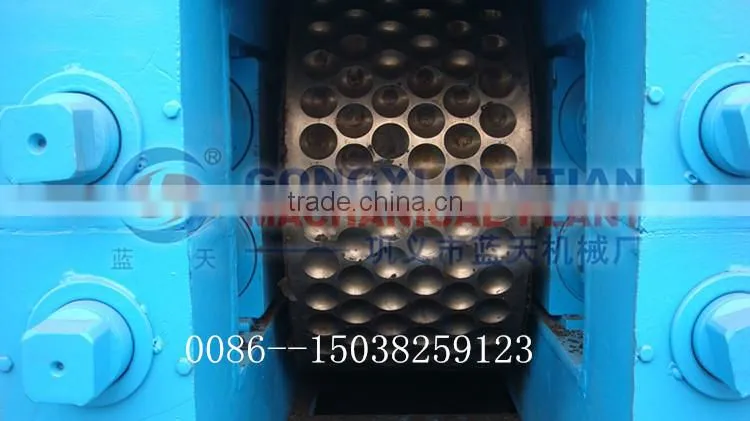

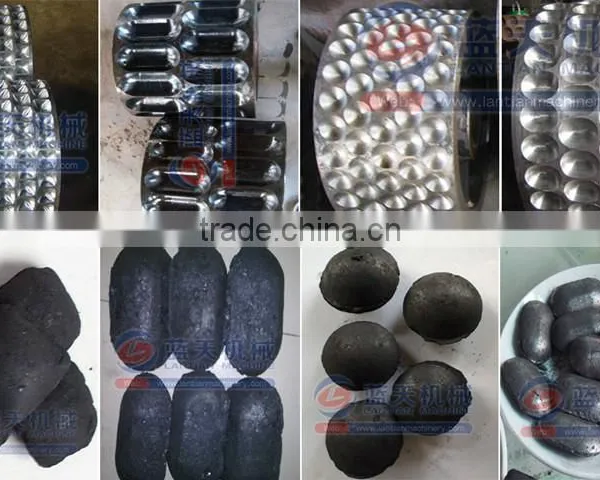

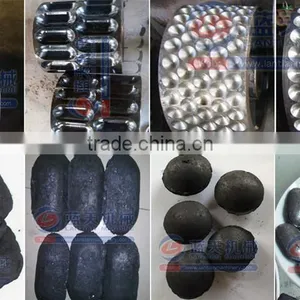

The molds of hydraulic coal sawdust briquette machine
Our services:
Before sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging

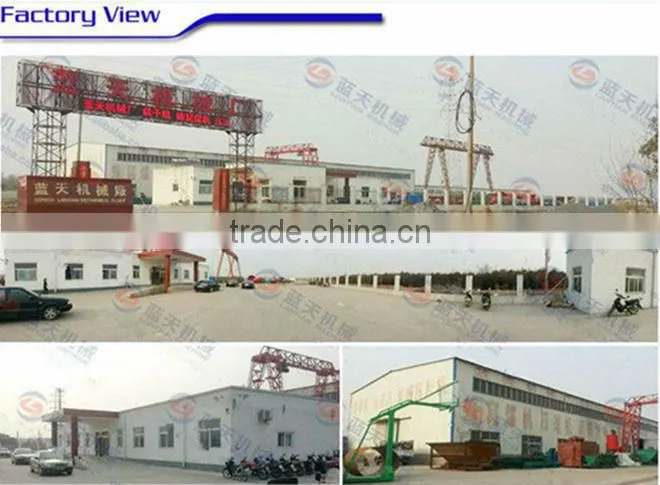

Company information:
Gongyi lantian mechanical plant is a professional manufacturer, specializing in the production coal dust ball press machine,charcoal briquette machine, mental briquette machine ,dryer, mixer,crusher.ect.
During nearly 30 years ,we constantly improve our technology and active innovation. our company has set up branches and has developed into a largesized enterprise
integrating engineering, trade, research and development, production and sale. Our company has
modern standard workshops and the firstclass advanced technologies and testing equipment.
Extensively cooperating with coal researchinstitutions and other research departments, we have
continuously improved our product value and performances. Our coal briqutte machine have been experted
to the indian,korea, Kazakhstan, Vietnam, Indonesia and other countries .our products are popular among
customers.
