This machine is a kind of fuel making machine, used to make briquettes from all kinds of biomass like wood, sawdust, wood chips, wood branches, rice husks, peanut shell, coconut shells, bamboo, wheat brans, wheat straws and others. The final briquettes can be with different shapes like round, square, hexagonal. Among these, the hexagonal shape is the most preferred one by clients. The final briquettes can be used for heating and cooking, thus his machine is widely used in many industries like sawdust plant and boiler industry!
2. Main features
a. Our machine is made of fine materials, thus have long using life.
b. It is professionally designed, with compact structure, easy to transport and operate.
c. It has temperature system. And during the whole production, there is no need to add any binder.
d.Easy to burn, high heat value, low production cost, money saving, no smoke, no smell, clean and environmental friendly compared to coal.
e.The spare parts like heating rings, screw propellers, shaping molds are made of fine materials, have long using life.
f. Widely used in industries, such as deep processing of activated carbon, silicon carbide, silicon metal, carbon disulfide factory, explosive factory, copper processing plant, foundry, etc.
3. Technical data
| Model | ZBJ-1 |
ZBJ-2 |
ZBJ-3 |
Power |
15kw |
18.5kw |
22kw |
Heating ring power |
4.5kwe |
9kw |
13.5kw |
Capacity |
150-200kg/h |
250-300kg/h |
300-370kg/h |
Moisture of raw materials |
10-12% |
10-12% |
10-12% |
Consumption of KW per hour |
15.6kw |
22kw |
22kw |
Size of final products |
round or hexagon,70mm |
round or hexagon, 70mm,75mm or 80mm |
round or hexagon,
70mm,75mm or 80mm |
Weight |
600kg |
700kg |
800kg |
Size |
1.7x0.60x1.3m |
1.7x0.65x1.3m |
1.7x0.75x1.3m |
Heating temperature |
300-330℃ |
300-330℃ |
300-330℃ |
4. Raw materials scope
Lantian wood sawdust briquette mahine is mainly used for pressing biomass materials, such like pini kay, straw, wood sawdust,, bamboo, palm, grass, corn, stalk, sunflowerr stalk, peanut shell, rice husk, wood chips, wood branch, wood waste, wood shaves, coconut shell, shell, agricultural waste and etc.

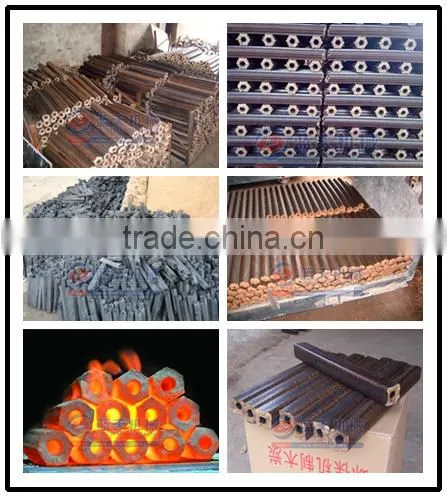

5. The final briquettes picture show
The charcoal briquettes made by our machine can be with shape square, hexagonal, and round with hole in center. The briquettes diameter is 50mm-80mm, you can decide the briquette length yourself with a cutter device. The most important is that the final briquettes are with high density!

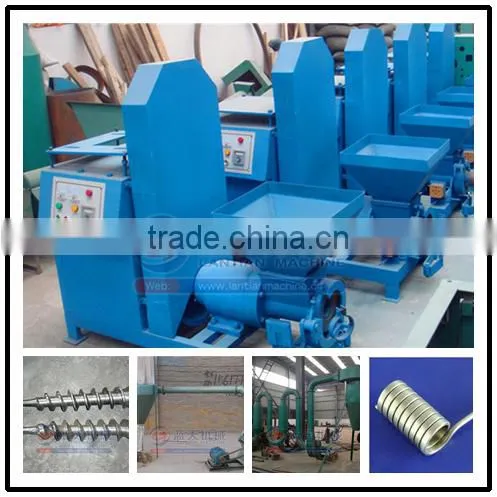

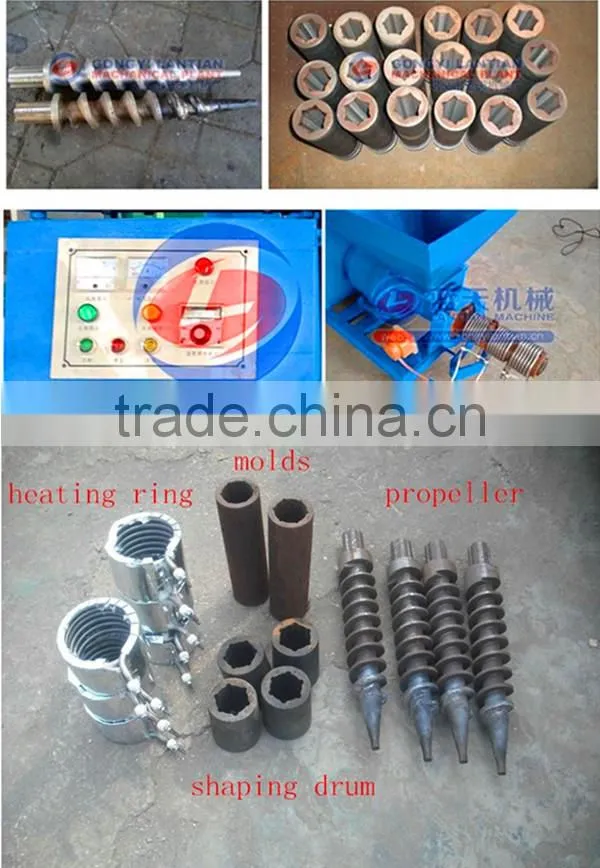

6. Machine spare parts

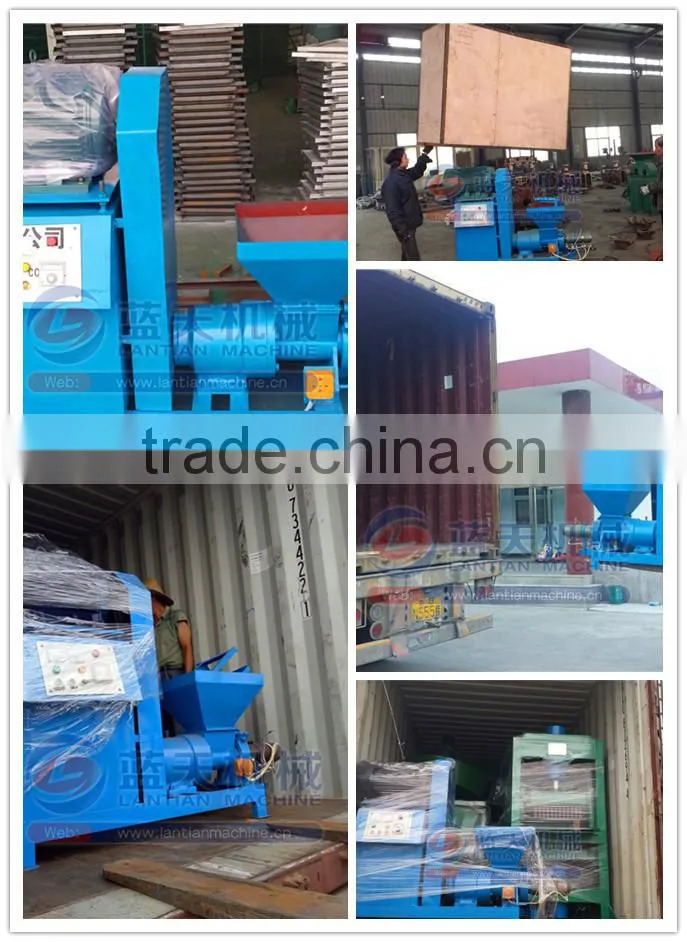

our packaging terms
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost
Our shipping terms
We can accept EXW FOB and CIF terms. Also our freight forwarding has high effieiency and quick shipping speed.If stock machine,we can send out your products within 5 days.If you need special molds or customizedproducion line, the delivery time according to you machine quantity, but we will send out as soon as possible.
(4)Our payment terms
T/T, L/C, Western Union or others.
Before sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
