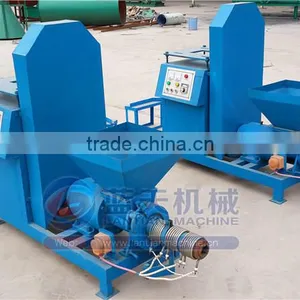

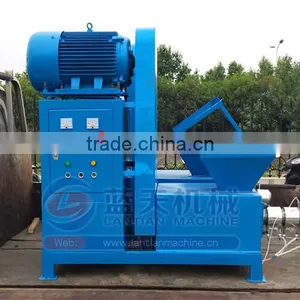

China factory direct supplier wood sawdust briquette machine wood charcoal block making machine milling machine
Raw materials of wood charcoal block making machine
Sawdust, melon seed shells, walnut bark, twigs, bark, trunk , rosacea, vinegar residue , wood branches,wood, wood residues, rice husk, sunflower shell, peanut shell, corn stalk,
straw, bamboo, cotton stalk, coconut shell, olive, furfural dregs, bagasse, corncob, corn stalk,
shurbs,and any other agricultural waste.
Requirement of the raw material:
1.Size:smaller than 5mm , if not, it should be crush first.
2.Moisture :8%-12%,If raw material has high moisture it should be dried first.
Introduction of wood charcoal block making machine
Wood charcoal is a kind of new-style energy with renewable, environmental protection, biomass clean and low cost. It is widely used of heating, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental protection, and solved the problem of higher industry fuel costs.
Wood charcoal block making machine is belong to environmental protection machinery, High production and low loss. Uses the raw material of wood sawdust, peanut shell,
corn cob, bagasse, cotton stalk, corn stalks, rice hull, miscellaneous branches etc shattered into granular.

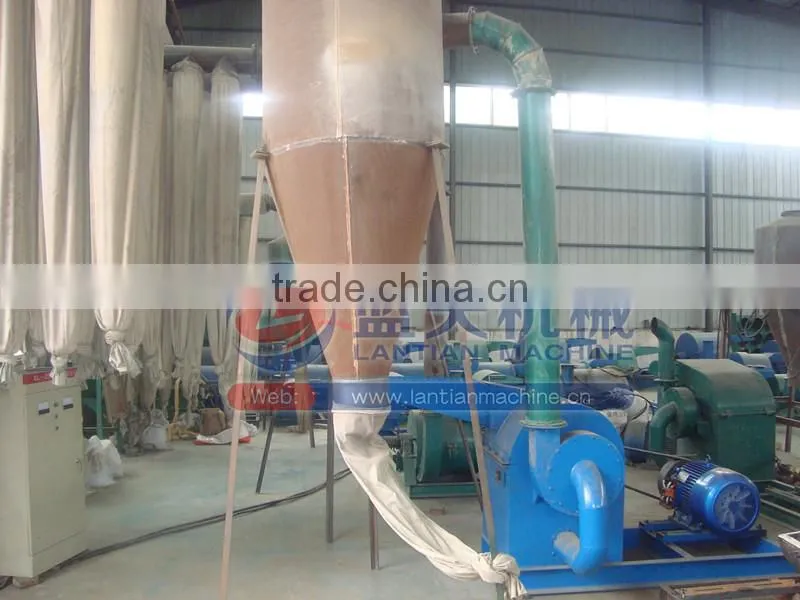

Within 3 to 5 mm by sawdust crusher; then the dryer dry material till water content is within 12%; through high temperature, high pressure of molding (do not add any additives) of the bar machine to the process of carbonization of coking furnace, then finished product of charcoal formed.

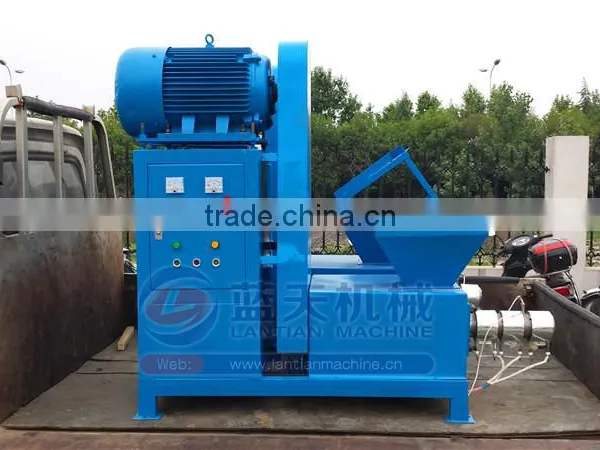

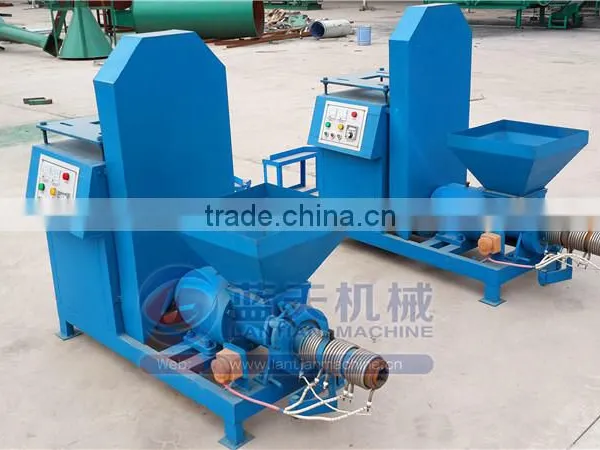

Structures of wood charcoal block making machine
1.Hopper 2.Heating rings 3.Heat insulation cover 4.Propellers 5.Heating tube 6.Taper sleeve 7.Stents inner sleeve 8.Stents 9.Electric control
Features of wood charcoal block making machine
♦ High capacity and performance of rice straw sawdust charcoal machine
♦ Long service life both for the briquette machine and main spare part
♦ CE, ISO, SGS certification
♦ Various shapes and diameter for your selection of rice straw sawdust charcoal machine
♦ Easy to burn , high heating value and long burning time
♦ Easy to operate, maintain, replace the main spare parts
Working principle of wood charcoal block making machine
1.The briquette machine uses flat module and the pressure between the impact extrusion wheel
2.and the mechanism of the interaction between frictionmodel hole make the material gain to shape.
3. During the processing ,the materials do not need any binder.
Spare parts of wood charcoal block making machine

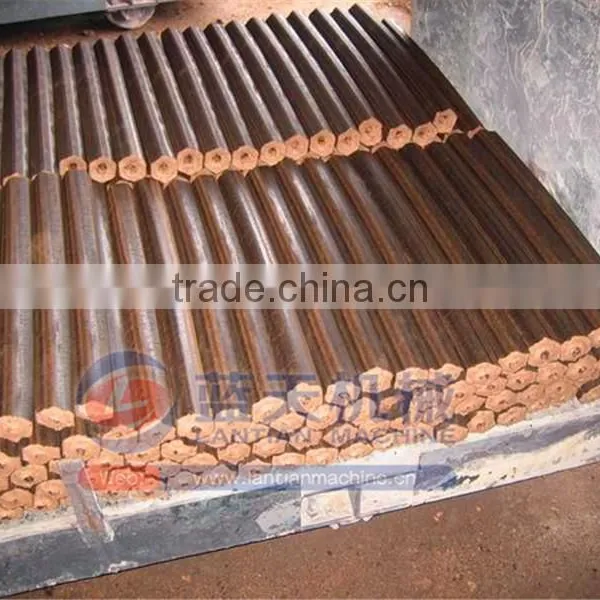

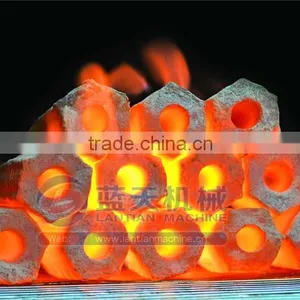

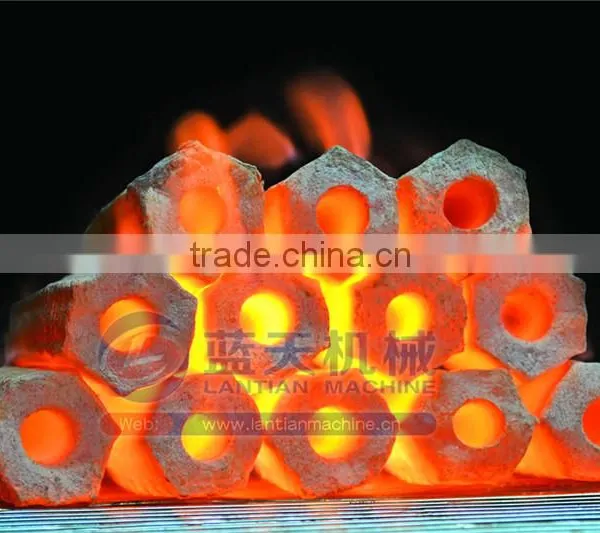

Finished product of wood charcoal block making machine
After the processing of drying, compressing under the high pressure and high temperature, the biomass briquette is characterized by high density, better combustion , capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 50-70mm in diameter, occurs in the wood round rod, hollow quadrangular or hexagonal cylinder with a 15-20mm hole body.
Technical parameter of wood charcoal block making machine
Power(kw) |
Capacity(t/h) |
Material temperature |
Weight(t) |
Appearance size(m) |
|
LTV50-9 |
11-15 |
0.12-0.22 |
8-12% |
0.55 |
2.2*0.6*1.3 |
LTV50-C |
22 |
0.35-0.42 |
8-12% |
0.75 |
2.7*0.7*1.5 |
LTV60-9 |
15-18.5 |
0.22-0.25 |
8-12% |
0.65 |
2.4*0.7*1.35 |
LTV70-9 |
18.5-22 |
0.28-0.34 |
8-12% |
0.78 |
2.4*0.7*1.4 |
LTV80-9 |
22 |
0.32-0.36 |
8-12% |
0.85 |
2.4*0.75*1.4 |
LTV90-9 |
30 |
0.38-0.45 |
8-12% |
0.98 |
2.6*0.8*1.5 |

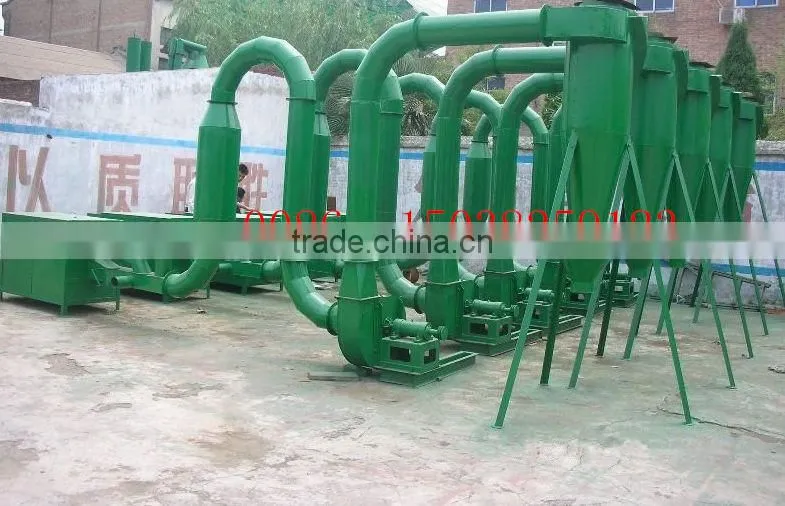

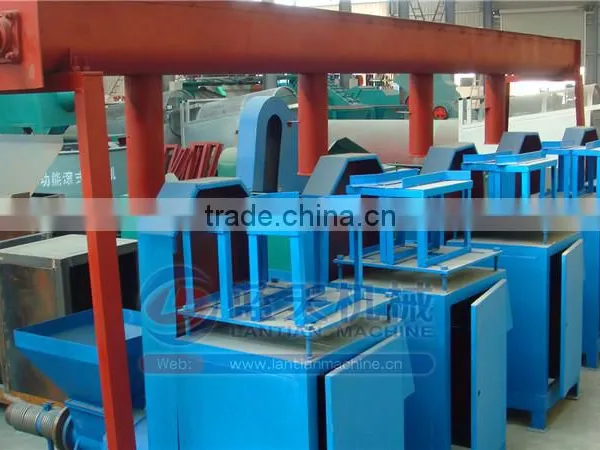

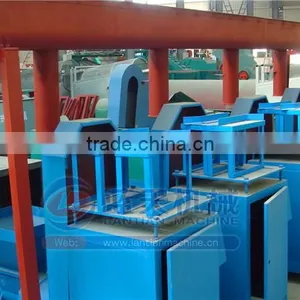

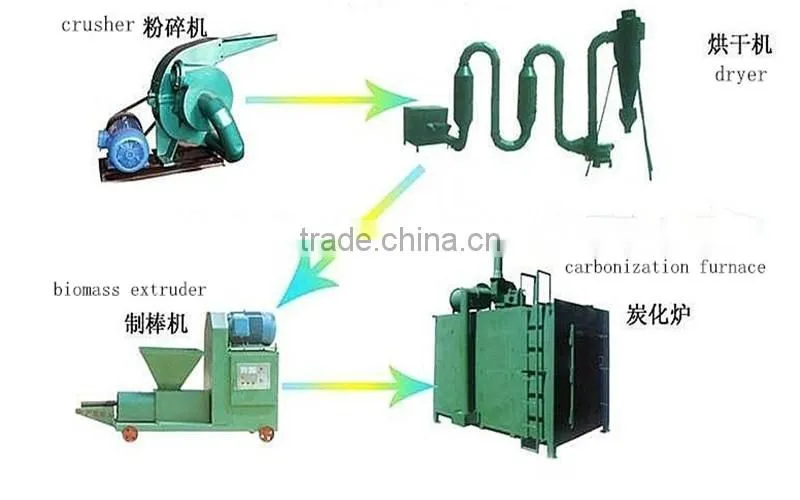

Production line of wood charcoal block making machine
Our services
(1)Pre-sales service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
(2)After-sales service
a. Assist you build up factory and production li ne.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
Wood charcoal block making machine shipping
We can accept EXW FOB and CIF terms. Also our freight forwarding has high effieiency and quick shipping speed.If stock machine,we can send out your products within 5 days.If you need special molds or customized producion line, the delivery time according to you machine quantity, but we will send out as soon as possible.
Company information
Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
