1.Introduction of the coal ball press machine:
Coal briquette machine can be used to make coal briquettes of differen shapes. The raw material comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or cahrcoal stick and recycled for barbecue, room heating etc.
2.Features and Advantages of the coal ball press machine:
1.Molding pressure, the host rpm adjustable with screw feeding device.
2.ball press machine with the ball high, low power consumption, the obvious advantages compact for easy maintenance and debugging.
3.Pressure ball density requirements to adjust the pressure and production flexibility.
3.The application of Coal briquette ball press machine
The purpose of Coal briquette ball press machine is to reduce dust, control volume-weight, improve transport characters and recycle materials. Coal briquette ball press machine has advanced technology and reliable quality. ball forming machine is suitable for large, medium and small factory to build large scale production line. ball forming machine is applied to industrial gas making, boiler, cold briquetting process.
6.Main Features of Coal briquette ball press machine
(2) Height become higher, this machine press 13cm height is no problem.
(3) It's more convenient to maintain.
(4) Simple operation, it has automatic and manual operation two kinds, you just need press button step by step.
1. High profit and low cost in raw material
2. Increase the net calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product

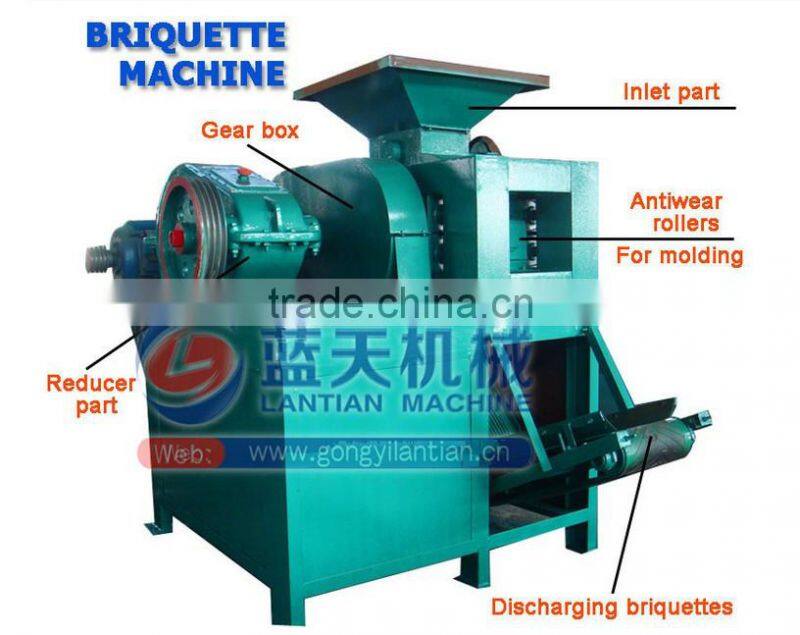

8.The structure and composition of the coal ball press
machine:
1. The feeding part, is used to feed material so that the material can feed to rolloer evenly ,it is drived by Spiral comprises electromagnetic motor.
2. The transmission part, main transmission system is: Motor - triangle belt - reducer - Open Gear - roll.
3. Forming part, mainly refers to the part of the host machine, its core part is roller.
9.Parameters of the coal ball press machine:
We have seven kinds of coal briquette machine, The capacity is varying from 1 t per hour to 30 t per hour, and this kkind of machine has many moulds, this can make different shapes and sizes final products. So, before ordering, tell us which kinds of shapes you prefer. The detailed information about the machine is as belows:
Model |
Roller Diameter(mm) |
Power (kw) |
Capacity (t/h) |
T 290 |
290 |
5.5 |
1-3 |
T 360 |
360 |
7.5 |
4-6 |
T 430 |
430 |
15 |
6-8 |
T 500 |
500 |
18.5 |
8-10 |
T 650 |
650 |
25 |
10-15 |
T 800 |
800 |
30 |
15-20 |
T 1000 |
1000 |
45 |
22-30 |
10. The services for coal ball press machine:
We could provide customized service for clients:
Binder: Professional advice for you. Organic and inorganic binder: starch, molasses, pitch, asphalt, sodium silicate, gypsum, magnesia, etc.
Hydraulic system: Hydraulic system could supply higher, stable pressure and protect machine from the damage of impurities entrained in the raw materials.
Feeding system: According to the property of raw materials, gravity feeder or force-feeder is equipped.
Dry/wet press: Some materials require no binder added. In this case, dry press is necessary.

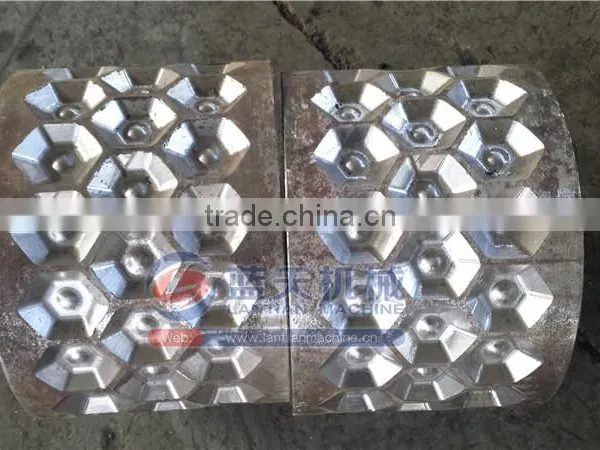

Size and shape: We can design the pockets on the surface of roller to meet the request for size, shape, capacity.

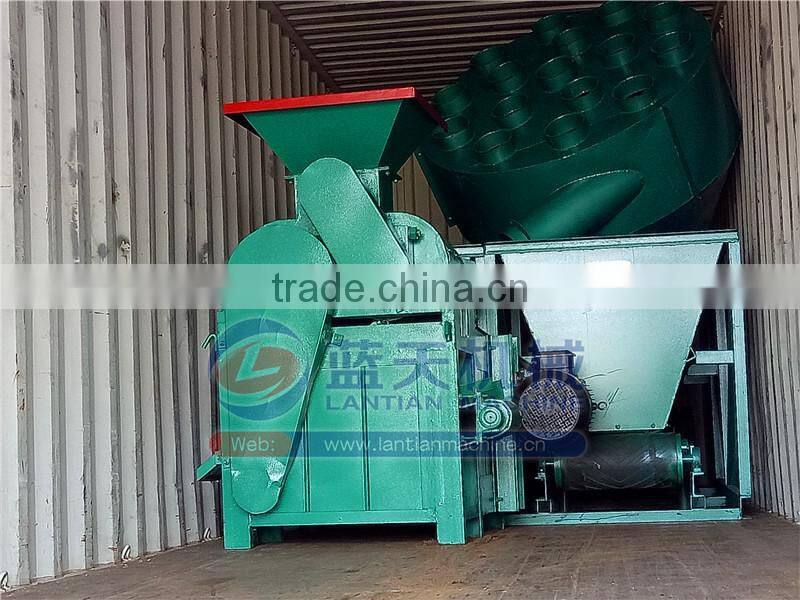

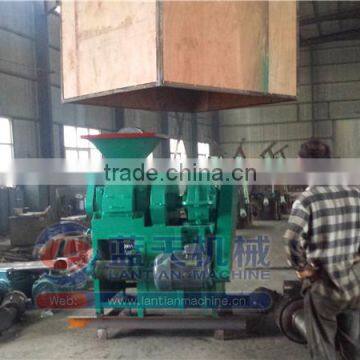

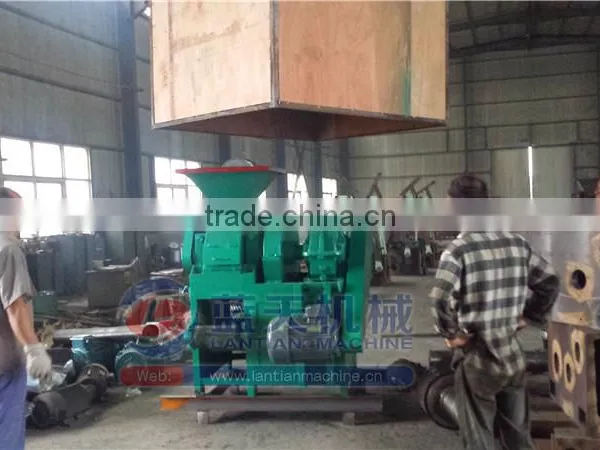

11. The packaging & shipping for the coal ball press machine:
12.The information of our company:

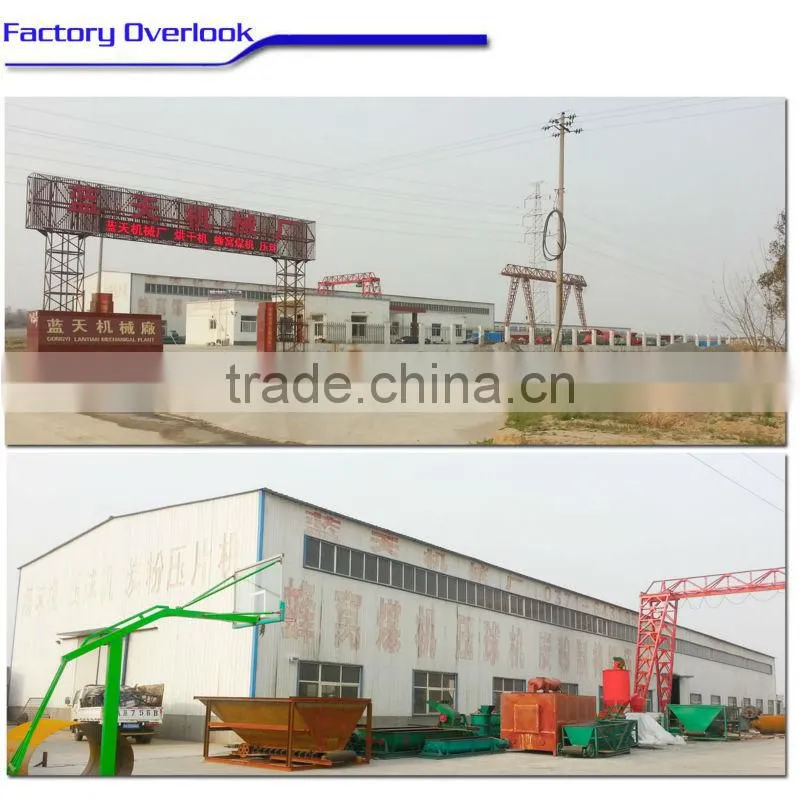

Through 30 years of development and technology innovation, our Gongyi Lantian Machinery Equipment has been developed to a professional manufacturer set design, manufacture, after-sale service as a whole. In order to meet the different requirements of our customers, we designed and researched many types of charcoal process machines, include charcoal & coal briquette machine, shisha & hookah charcoal tablet machines, charcoal & coal extruder machines, and biomass charcoal briquette machines, etc.
