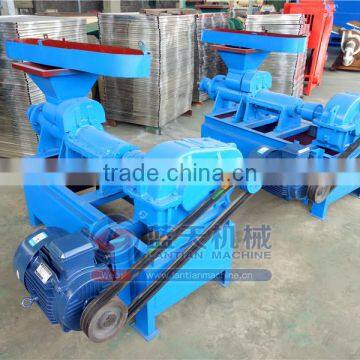

Our this charcoal powder briquette extruding machine is the device of using the screw extrusion principle to squeeze the charcoal powder, coal powder materials and other materials (chemical materials, refractory materials, cement materials iron ore, copper or other matallurgical materials) into certain density stick shape briquettes (round, rectangular, hexagonal, plum-flower, triangular etc.) with or without hole in the middle. It is also an ideal equipment for large, medium and small smelting plant, refractory plant, charcoal and coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producer, shaft kiln, cement plant etc. This charcoal powder briquette extruding machine can make full use of charcoal resources, and in the production process, it can reduce the fuel cost and improve the calorific value of coal, which increase the efficiency greatly.
The outlet briquettes of charcoal powder briquette extruding machine:
The requirements for feeding materials:
The working principle of this bbq charcoal extruder machine:
The rotating vane wheel of bbq charcoal extruder machine load the raw coal or charcoal from feeding hopper, and when the machine impel the charcoal, the coal will be compressed, closed and mixed. And at the same time, there is intense friction accurred between materials and vanes. Then the coal materials temperature will go up, water and binder will be even, and coal materials are easliy shapping. Through the molding effect, the coal will be compressed closer and closer, and at last, the materials go into the flat part of mould and the briquettes come out.
The parameter of this bbq charcoal extruder machine:
| Model | Power | Capacity | Speed | Outlet diameter | Helical blade |
| MBJ-140 | 7.5-11 kw | 1-2 ton/h | 46-60 r/min | 15-50 mm | 4 pcs |
| MBJ-180 | 18.5-22 kw | 2-3 ton/h | 39-60 r/min | 15-60 mm | 4 pcs |
| MBJ-360 | 15+5.5+4 kw | 3-5 ton/h | 45-60 r/min | 15-60 mm | 4 pcs |
Our another type screw type briquettes making machine:
The Introduction of BBQ charcoal extruder machine:
Our this bbq charcoal extruder machine takes wood, rice husk, peanut shell, plant stalk, and other woodiness carbon containing materials as feeding materials ( no any additives) to make stick shape briquettes under the condition of high pressure and temperature.
The outlet briquettes has the features of high density, small volume, good flammability, which can take place of fuel wood and coal. The common diameter of briquettes is 50-80mm, and the shape can be square, rectangular, round with a hole in the center.
Our overseas customers coming our factory to see the automatic charcoal production line of bbq charcoal extruder machine
The Materials Requirements of bbq charcoal extruder machine:
1. The inlet size of bbq charcoal extruder machine should be less than 5mm. If the raw materials are bigger size, they must be crushed firstly.
2. The inlet moisture of raw materials must be less than 12%, otherwise, the outlet briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.
The Moulds And Spare Parts of bbq charcoal extruder machine:
Each parts of our bbq charcoal extruder machine are made in our factory which is to make sure the accuracy of parts.
1. Heating ring:
The quality material of heating ring is the stainless steel, and inner is the electric heating wire. The role of heating ring is to make the surface of briquette rods hardening. Each this bbq charcoal extruder machine has three heating rings, and its working temperature is more than 350 celsius degree.
2. Propeller:
Propeller of bbq charcoal extruder machine is to propel the raw materials for briquetting.
3. Shaping Drum:
Each bbq charcoal extruder machine has one shaping drum.
The Parameters of bbq charcoal extruder machine:
Each model of bbq charcoal extruder machine has been improved quality and the parts are durable and long life.
Model | Power | Inlet size | Capacity | Outlet diameter | Dimension |
ZBJ-50 | 15 kw | ≤ 5mm | 180-220 kg/h | 50 mm | 1700x660x1500mm |
ZBJ-80 | 18.5 kw | ≤ 5mm | 280-350 kg/h | 70mm or 80 mm | 1700x800x1300mm |
ZBJ-N | 22 kw | ≤ 5mm | 350-400 kg/h | 50-80mm | 1800x700x1500mm |
The Charcoal Production Line of bbq charcoal extruder machine:
The production line of bbq charcoal extruder machine to make charcoal is: Crusher (crush the sugarcane bagasse into less than 5mm particles) --> Dryer (the dryer can be rotary dryer or airflow type dryer which are drying the small particles to less than 12% moisture) --> BBQ charcoal extruder machine (make the small dry particles into wood briquettes) --> Carbonization furnace (carbonize the briquettes into charcoal briquettes).
