Wood Charcoal Square Stick Making Machine Extruder Making Machine for lantian
Wood Charcoal Square Stick Making Machine can produce a diameter of 260 mm, height 120 mm below the various specifications of the shape. The machine adopts spline connection of drive shafts, which make the whole machine with novel design, compact structure, smooth operation, accurate indexing, reliable positioning, low noise, high output and easy maintenance.
Advantage of machine
1.Applicable to a wide range of materials,pressure can be adjusted according to different materials.
2.For different materials you can choose with binder or not, finished high purity, high molding rate, shape, integrity, smooth surface.
3.Specially designed auxiliary equipment, can realize automatic feeding, automatic discharge, save labor.
4.Can easily swap molds, through the exchange of molds can produce a variety of shapes of products, a multi-purpose machine.
5.High degree of automation, the entire production line can achieve more than one machine control, low labor intensity and long-term continuous operation and so on.
Materials requirements
The inlet particle size of wood charcoal powder must be less than 3mm.We have to add suitable binder for some kind of materials for shaping easily.The moisture of materials must be moderate, and the water content usually is 12%-15%.

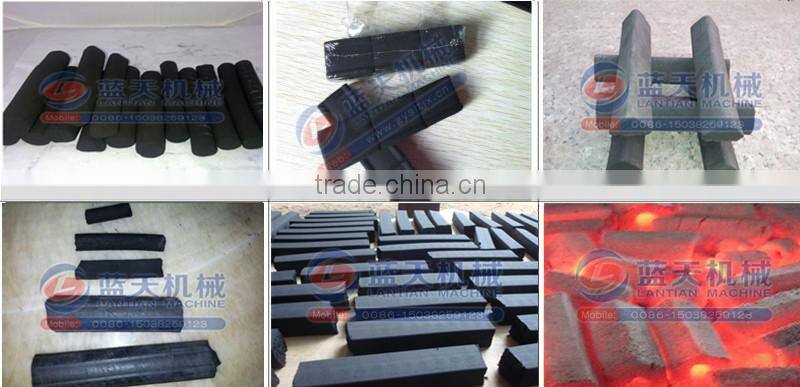

Shape: The outlet shapes can be round stick, hexagonal stick, rectangular stick, etc. And we can customize the different shapes according to your requirements.
Size: Toutlet briquettes can be 15-60mm, and length can be 15-80cm,
Features: The outlet briquettes are of high density, easy fire, smokeless, high value calorific, good looking, long burning, etc.
Show the molds
Different model have different capacity. the mold adopt durable materials, on one hand can increase the density of products, high strength ,high hardness,high features, the other hand which can improve mold service life greatly.
The mold of Wood Charcoal Square Stick Making Machine is easy to repair and install. Change mold can be different shapes, we can customize the mold as your requirements, If the mold be weared. we can provide the mold with low price and high quality.
| Type | Capacity | Powder | Weight | Speed | Specification |
| MBJ-140 | 1-2t/h | 7.5-11KW | 600kg | 40-46r/min | 30-40mm |
| MBJ-180 | 2-3t/h | 18.5-22KW | 750kg | 39-60r/min | 30-60mm |
| MBJ-360 | 0.8-1.5t/h | 15+5.5+4KW | 800kg | 45-60t/min | 15-60mm |

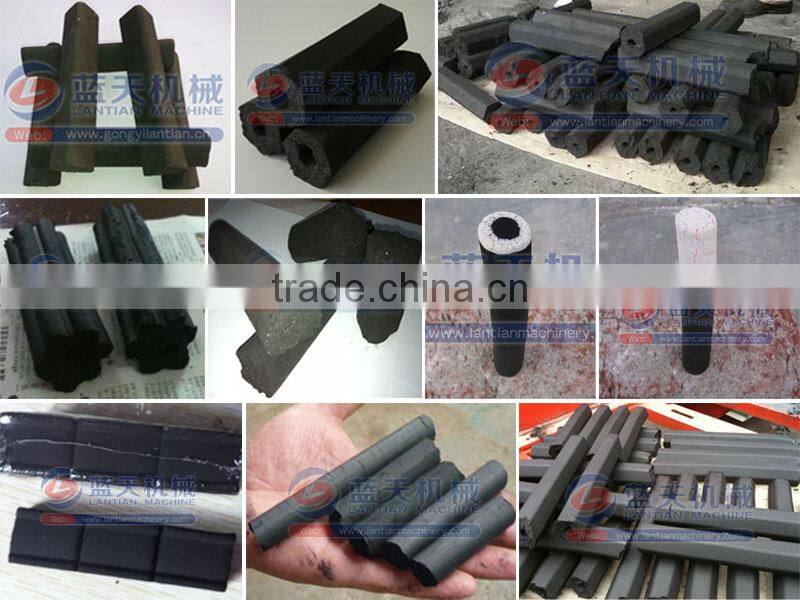

The main shapes are: carbon rods (BBQ charcoal), spherical (BBQ, ignition carbon), hookah charcoal, we will provide you with first-class products and technology, while training a variety of carbonization technology.
1) Crusher: Using crusher to crush wood charcoal into fine powder,less than 3mm.
2) Screw conveyor: Use screw conveyor to convey wood charcoal powder into wheel mixer.
3) Mixer: Use liquid mixer to make binder for wood charcoal powder.
4) Wood Charcoal Square Stick Making Machine : Shaping fine wood charcoal powder into different shape you want.
5)Dryer: The final products has a big moisture,use the dryer to dry the moisture.
1. First of all the machine with plastic film(including the motor)
2. According to the size and weight, use wooden or metal box, fixed the machine into the box. (box materials can be used as your requirements)3. Required of the machine parts will be placed on a fixed container to avoid collision and wear or lost.
Gongyi Lantian mechanical plant was founded in 1989s, which is a company specializing in the production of coal equipment, charcoal equipment, drying equipment, processing equipment, set research and development, production, sale, import and export trade as a whole.
We established of a set of complete service system and experienced service team after 30 years of exploration.Free for customers planning field, flow chart of design and installation, to provide the most professional technical training, and send technicians to guide the field installation and debugging of the equipment.So far, the company has won eight national patents, long-term exchanges and cooperation with overseas countries, won a wide range of international market.
