Easy OperationTwin Screw Extruder Wood Round Stick Machine

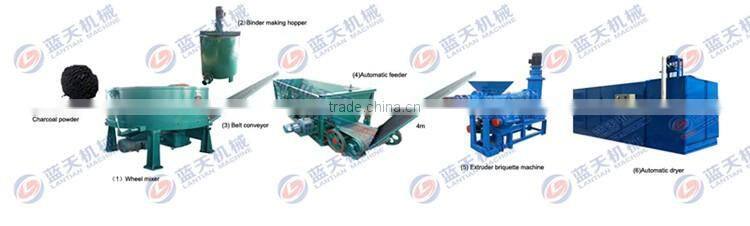

1) Crusher: Using crusher to crush raw material into fine powder,less than 3mm.
2) Conveyor: Use conveyor to convey fine powder into feeder.
3) Wheel mixer: Make wood charcoal powder with binder mixing more evenly.
4) Binder mixer : To make binder,and make adhesive mixing more evenly.
5) Feeder: Stoer the mixing materials,connect next machine.
6)Extruder machine: To product any shape you want.

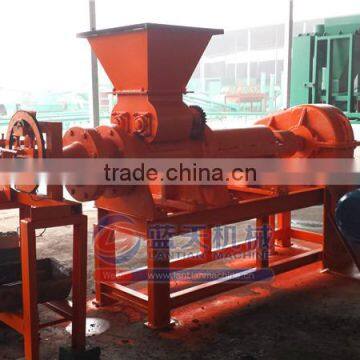

Twin Screw Extruder Wood Round Stick Machine use of double-screw press principle, make wood charcoal powder with a special binder together,press with a certain hardness of the predetermined shape of the product. Twin Screw Extruder Wood Round Stick Machine small size, high bearing capacity, Impeller with thicker blade design, Each part is made by wear-resistant materials, the use of time 4-5 times higher than ordinary materials, the mold can be easier changed and maintenanced.
After years of research and experiment, a new type of extruder machine has been improved. Mainly used in coal, coke, lignite, anthracite, charcoal powder and other raw materials molding equipment.
Our Twin Screw Extruder Wood Round Stick Machine has three electric motors and two discharging heads which can strengthly producing the briquettes with high density. The new type machine also can make different shapes of hollow or solid briquettes. And its output capacity is twice than the old ones.
The inlet size of materials must be less than 3mm.We need to add some suitable binder in order to shaping easily.The moisture of materials must be moderate, and the water content usually is 12%-15%.
With our special binder, the outlet briquettes are of high density, esay shaping, smokeless, easy fire, long burning, etc.The outlet shapes can be round, rectangular, hexagonal, triangular etc.Smooth surface and convenient to store and transport.
Twin Screw Extruder Wood Round Stick Machine rely on the screw rotation generated by the pressure and shear, making the material evenly mixed through the die molding; so sometimes using an extruder can simultaneously complete the mixing, molding and a series of processes , So that continuous production.
In general, the most basic and most common single screw extruder. Its main include: transmission, feedingdevice, hopper, screw, head and die, and other six parts.
Transmission is usually by the motor, gear box and bearings and other components. In the extrusion process,the screw speed must be stable, not with the screw load changes, so as to maintain the uniformity of theresulting product.
| Type | Capacity | Powder | Weight | Speed | Specification |
| MBJ-140 | 1-2t/h | 7.5-11KW | 600kg | 40-46r/min | 30-40mm |
| MBJ-180 | 2-3t/h | 18.5-22KW | 750kg | 39-60r/min | 30-60mm |
| MBJ-360 | 0.8-1.5t/h | 15+5.5+4KW | 800kg | 45-60r/min | 15-60mm |
Choose what material for Twin Screw Extruder Wood Round Stick Machine is important ,copper and iron friction is not easy to heat, greatly improving the life of Machine.

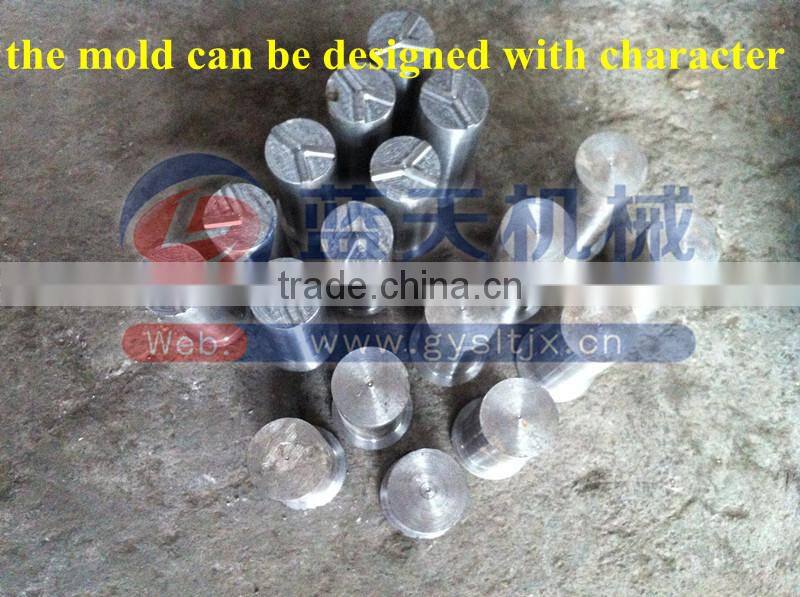

In order to meet the different needs of different customers,our factory has designed different types of mold and all of the molds are produced by ourselves according to the customer's requirements,meanwhile the mold materials are very durable.
Different model have different capacity. the mold adopt durable materials, on one hand can increase the density of products, high strength ,high hardness,high features, the other hand which can improve mold service life greatly.
Before the sales
1. According to the customer's requirement, provide the most suitable project design, process design and the purchase program.2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the Twin Screw Extruder Wood Round Stick Machine.
2. Lead to visit all of our machines.
3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.
Gongyi Lantian mechanical plant was founded in 1989s, whice is a company specializing in the production of coal equipment, charcoal equipment, drying equipment, processing equipment, set research and development, production, sale, import and export trade as a whole.
We established of a set of complete service system and experienced service team after 30 years of exploration.Free for customers planning field, flow chart of design and installation, to provide the most professional technical training, and send technicians to guide the field installation and debugging of the equipment.So far, the company has won eight national patents, long-term exchanges and cooperation with overseas countries, won a wide range of international market.
