scrap oil filter element crusher/recycling used engine oil filter processing line
(Whatsapp: +8615937198193)

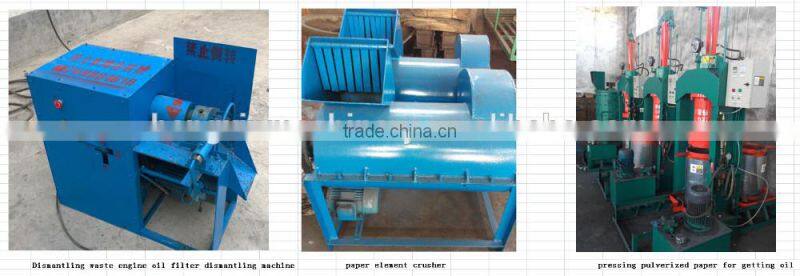

Process Flow
1. Crushing waste engine oil filter and meanwhile separating out metal lumps by installing a magnetic separator at the discharging belt .

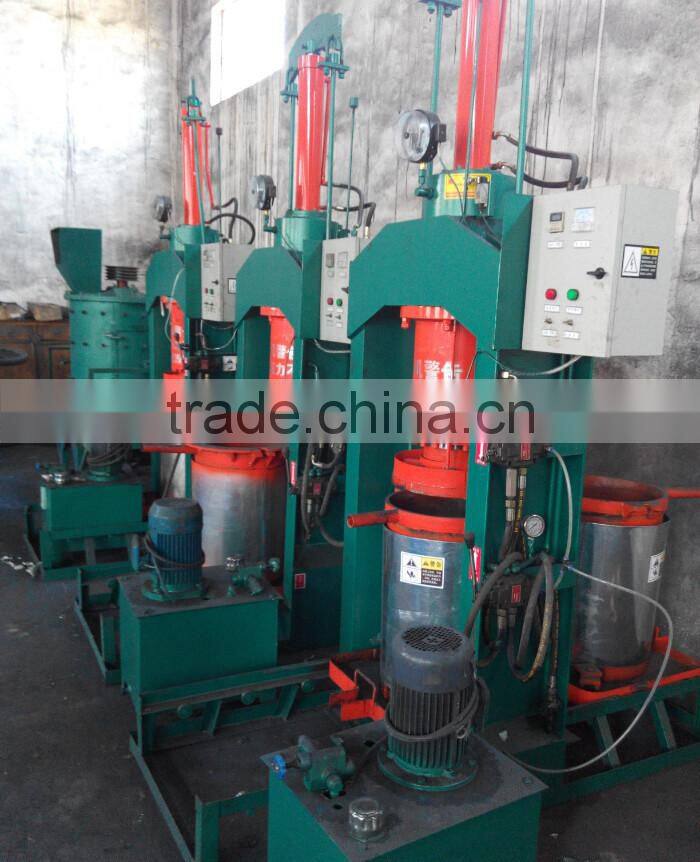

2. pressing those paper element in a bucket type hydraulic press filter for collecting waste oil .
Remark: for those metal lumps , and that is possible for you to sell them to big steel mill , as I know , usually it cost higher than the ones in big volume .
for those waste engine oil you got , there are two ways for recycling , one is refinement firstly and then readd new annexing agent ; the other one is used as vessel fuel .
Specifications

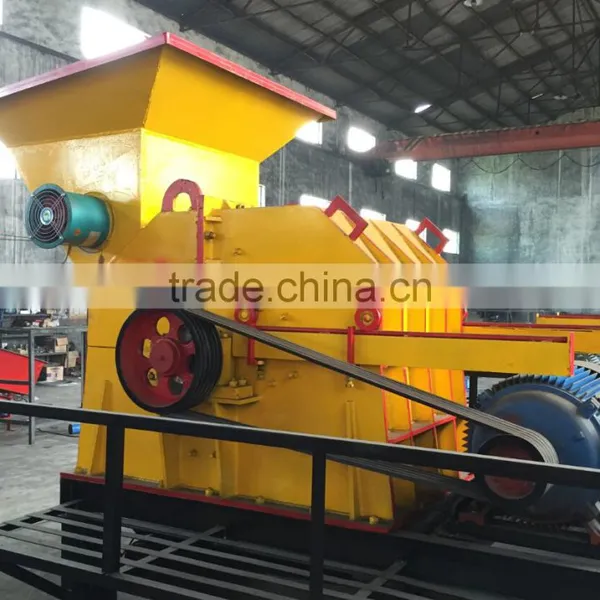

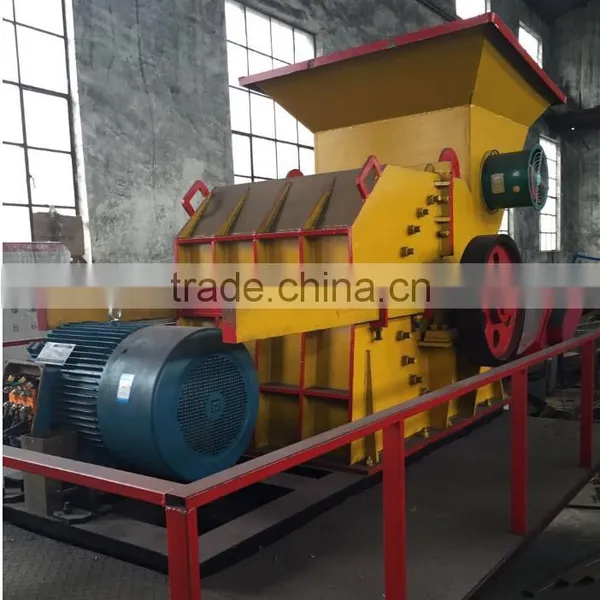

Oil Filter Element Crusher
| Model | machine size | weight | handling capaciy | power | rotating speed |
| HDFS-700 | 2.8*2*2.5M | 3ton | 2ton/h | 45KW |
motor:1470r/min rotation plate :800r/min |
| HDFS-900 | 2.8*2.2*2.5M | 4.5ton | 3ton/h | 55KW |
Belt Conveyor
feeding belt conveyor : length 10M & 3KW motor ;
discharging belt conveyor : length 6M & 0.75kw motor ;
Remark: belt width for aboved two both kind are 500mm .
Hydraulic Press :
size: 1.8*0.8*2.75M
weight : 1400kgs
handling capacity : no exact data , but as testing , per ton can get near 200kgs waste engine oil .
power:3kw
max working pressure :40Mpa
pressing time for one barrel :20-30 minutes
material: carbon steel and common iron
barrel size :425mm dia. * 680mm height
steel plate :24pcs
oil contained in paper residue cake :2%
Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
Operating video will be sent to clients together with instruction book , to help them for a better use , If you are willing to pay , okay for our technician go abroad for a installation and debugging and training your workers .
Any Problems occurred while running , professional advice(technic support) will be given by us at soonest via email.
One year guarantee for whole machine except spare part of blade (we promise supply all the year round with low price)
THE QUALITY IS OUR CULTURE , WITH US YOUR BUSINESS IN SAFE , YOUR MONEY IN SAFE.
CONTACT US NOW !
1. Q: Can I get a discount ?
A: Yes. For big order like a whole production line , or for regular Customer.
2. Q: How we can get to your factory for a visiting ?
A: We are located in Gongyi,zhengzhou city , henan province , china.
and XINZHENG INTERNATIONAL AIRPORT is the nearest one from us , you can fly there firstly and then we pick up you.
If you take the bullet train , our station is Gongyi Nan .
3. Q: Whether that crushing cavity will catch fire under the double actions of high temperature and engine oil ?
A: not will happen due to following three reasons :
- discharging by the full screen netting , so speed comes in fast ;
- machine are designed with two draught fans and water cooling device to help reduce the temperature of crushing cavity;
