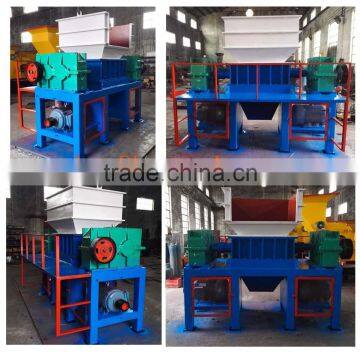

industrial waste carton crushing machine for small lumps
- 10 Set / Sets per Month
- qingdao
- T/T Credit Card
- industrial scrap newspaper shredder crusher machine
- Tire rubber crusher / Waste tyre recycling shredder
- hot selling groundnut sheller /soybean sheller / automatic peanut sheller for sale
- farm use low price electric peanut shelling machine
- high efficiency small dry peanut husking machine
- energy saving groundnut/earthnut/earthpea/peanut decorticator
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HENGXIN |
Shaft Design: | Other, single or double shaft | Capacity: | coarse breaking , 3-10cm small lump,per your request | Voltage: | 380V/50Hz/3Phase |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Industrial Waste Carton Crushing Machine for small lumps (whatsapp:+8615937198193)
1. Q: How did your machine work ?
A: The main components are a relative rotation of the roller, the roller success teeth tops spirally arranged. After the material into the machine by the teeth staggered rotation of high hardness and wear-resistant material shear pull bite is split, broken and crushed to less than the set size after being forced to exclude outside. Roller driven by a motor through reducer having a large torque encountered difficulties debris, it will automatically reverse the role of PLC automatic control system, and repeatedly reversing, until the material is broken exhaust.
2. Q: What raw material of your machine are suitable for ?
A:3. Q: Final size scope of your machine support after crushing ?
A: This kind of industrial shredder machine is designed for coarse smash , the width of final slice support 3-10cm and length can be customized per clients request .
4. Q: What is the purpose for crushing ?
A: Increase bulk density of raw material to help save transportation cost and space , or improve the handling capacity on further fine grinding
5. Q: what is the features of your waste carton crushing machine ?
A: frame plate thick , low speed, high torque
electrical control cabinet (with function buttons for "on , off , reverse and overload automatic reverse ")
knives are made of alloy steel casting, 55sicr material (other options for 9crsi, and cr12mov , and mainly depends on user' request )
6. Q: What is the specification for your all models ?
A:
Model | Feeding Hole (mm) | Max feeding size(mm) | Discharging Hole(mm) | Handling Capacity | Power(KW) | Wt(ton) | Dimension(L*W*H) |
HDSS-600 | 500*600 | 85 | 10-40 | 0.5-0.7 | 18.5 | 2.2 | 1720*660*1850 |
HDSS-800 | 700*800 | 100 | 10-50 | 1-1.2 | 30*2 | 3.6 | 1910*850*1990 |
HDSS-1000 | 900*1000 | 120 | 14-70 | 2.5-3 | 75 | 6.5 | 2000*1070*1990 |
HDSS-1200 | 1000*1200 | 150 | 20-60 | 3-3.5 | 90 | 10 | 2400*1090*2270 |
HDSS-1600 | 1400*1600 | 160 | 20-100 | 3.5-4.5 | 132 | 19 | 2400*2200*3500 |
HDSS-1800 | 1800*2000 | 180 | 30-100 | 7-8 | 180 | 30 | 2500*2400*5200 |
7. Q: What service you can provide after we bought your ?
A:
Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
Operating video will be sent to clients together with instruction book , to help them for a better use , If you are willing to pay , okay for our technician go abroad for a installation and debugging and training your workers .
Any Problems occurred while running , professional advice(technic support) will be given by us at soonest via email.
One year guarantee for whole machine except spare part of blade (we promise supply all the year round with low price)

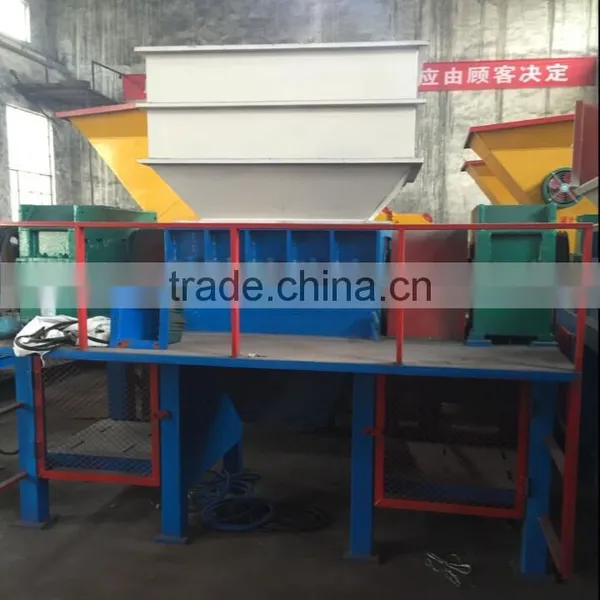

8.Q: Will you show us some photos to see your crushing effection ?
A:
9. Q:What quick-wear part this machine include ?
A : blade
11. Q: How should I contact you ?
A: pls find below photo.
12. Q : What information we should provide for getting a quotation on suitable model ?
A: 1. show me the photo of your raw material ? And moreover advise its biggest size ?
2. what final size you required after shredding ?
3. what handling capacity you asked per hour ?
13.Q: How we can get to your factory for a visiting ?
A: XINZHENG INTERNATIONAL AIRPORT is the nearest one from us , you can fly there and then we pick up you .
If you take the bullet train , our nearest station is GONGYI NAN .
14. Q: What type you can produce ?
A: both single and double axle type .(small and larger)
