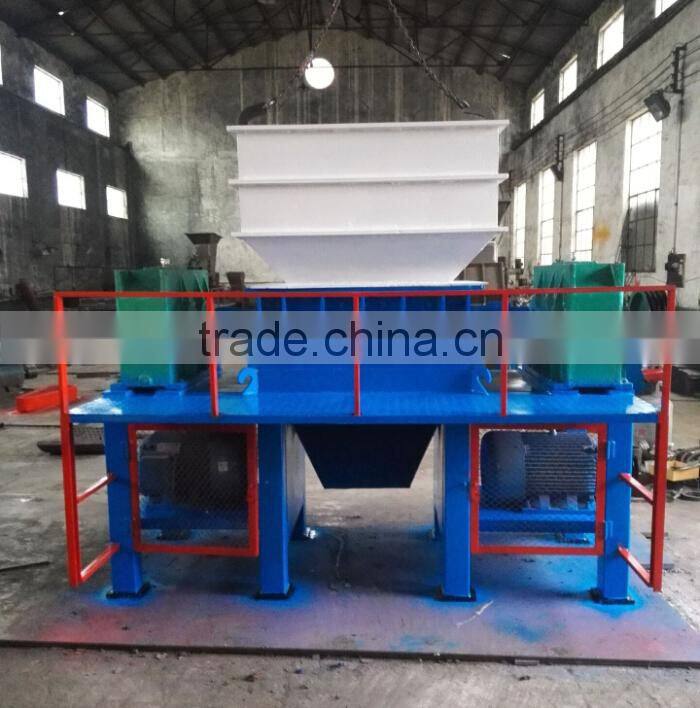

industrial scrap newspaper shredder crusher machine
- 10 Set / Sets per Month
- qingdao
- T/T Credit Card
- Hot Sale Expanded Polystyrene Compactor | Eps Foam Cold Press Recycling Compressing Machine
- New EPS Densifier / Styrofoam Densifier / Waste EPS XPS Foam Cold Press Recycling Machine
- EPE EPP XPS EPS Foam Crusher | extruded polystyrene board XPS board crusher
- EPE EPS EPP XPS Polystyrene Foam Recycling Machine | Plastic Foam Hot Melting Machine
- Solar Panel Aluminum Frame Removing Dismantling Recycling Machine
- Drug Glass Bottle Crusher Medicinal Glass Bottle Crusher for Recycling
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Hengxin |
Use: | Waste Plastic Crusher | Plastic Type: | Other, all type plastic product | Shaft Design: | Other, both single and double type |
Power: | different design for different model | Capacity: | coarse breaking | Voltage: | 380V/50Hz/3Phase |
Dimension(L*W*H): | varies on different model | Weight: | same situation with machine dimension | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Industrial Scrap Newspaper Shredder Crusher Machine(whatsapp:+8615937198193)
Working principle of Scrap Newspaper Shredder Crusher Machine
The main components are a relative rotation of the roller, the roller success teeth tops spirally arranged. After the material into the machine by the teeth staggered rotation of high hardness and wear-resistant material shear pull bite is split, broken and crushed to less than the set size after being forced to exclude outside. Roller driven by a motor through reducer having a large torque encountered difficulties debris, it will automatically reverse the role of PLC automatic control system, and repeatedly reversing, until the material is broken exhaust.
Available raw material
Technical Parameters for All Models of Scrap Newspaper Shredder Crusher Machine
Model | Feeding Hole (mm) | Max feeding size(mm) | Discharging Hole(mm) | Handling Capacity | Power(KW) | Wt(ton) | Dimension(L*W*H) |
HDSS-600 | 500*600 | 85 | 10-40 | 0.5-0.7 | 18.5 | 2.2 | 1720*660*1850 |
HDSS-800 | 700*800 | 100 | 10-50 | 1-1.2 | 30*2 | 3.6 | 1910*850*1990 |
HDSS-1000 | 900*1000 | 120 | 14-70 | 2.5-3 | 75 | 6.5 | 2000*1070*1990 |
HDSS-1200 | 1000*1200 | 150 | 20-60 | 3-3.5 | 90 | 10 | 2400*1090*2270 |
HDSS-1600 | 1400*1600 | 160 | 20-100 | 3.5-4.5 | 132 | 19 | 2400*2200*3500 |
HDSS-1800 | 1800*2000 | 180 | 30-100 | 7-8 | 180 | 30 | 2500*2400*5200 |
Introduction of Scrap Newspaper Shredder Crusher Machine
machine function | reduce the wastes size into 3-10cm for saving transportation cost , |
coarse breaking firstly to improve the handling capacity on fine crushing | |
machine features | use thick steel plate for machine frame , low speed reducer,high torque |
machine will reverse automatically if overload | |
different knife design on shape and material for different raw material | |

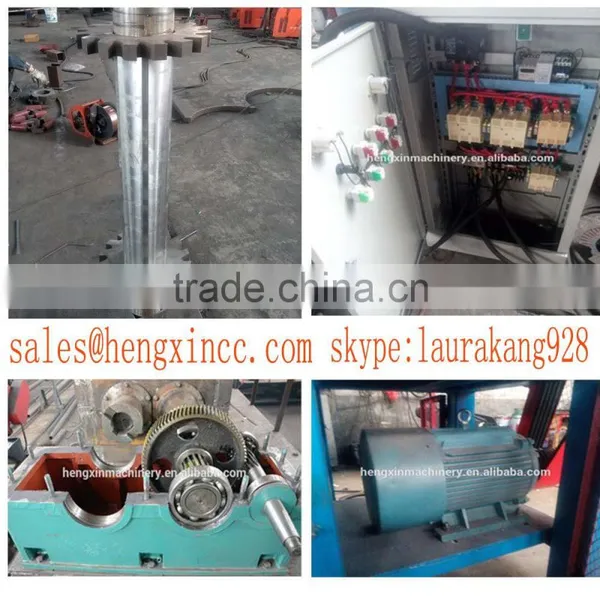

machine structure (standard configuration) | electric control cabinet , shredding chamber,motor and gear box
|
handling capacity | this info is not fixed even on same model , mainly depends on density and hardness of raw material |

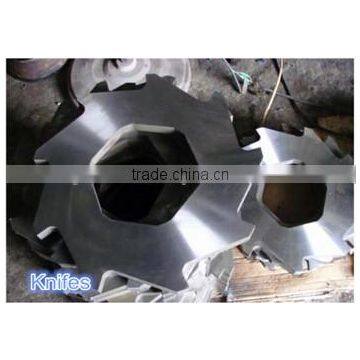

A: knives are made of alloy steel casting, 55sicr material (other options for 9crsi, and cr12mov , and mainly depends on user' request )
7. Q: What service you can provide after we bought your scrap newspaper shredder crusher machine?
A:
Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
Operating video will be sent to clients together with instruction book , to help them for a better use.
Any Problems occurred while running , professional advice(technic support) will be given by us within 24 hours via email
Ware parts of hammer , blade and screen mesh are supplied from us all the year round .
One year guarantee for whole machine except spare parts .

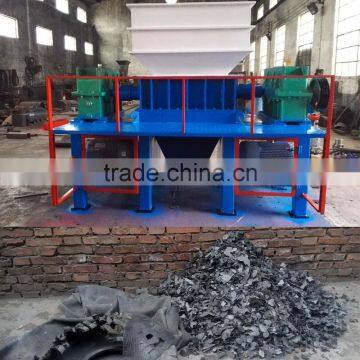

8.Q: Will you show us some photos to see your crushing effection ?
A:
11. Q: How should I contact you ?
A: pls find below photo.
12. Q : What information we should provide for getting a quotation on suitable model ?
A: 1. show me the photo of your raw material ? And moreover advise its biggest size ?
2. what final size you required after shredding ?
3. what handling capacity you asked per hour ?
13.Q: How we can get to your factory for a visiting ?
A: XINZHENG INTERNATIONAL AIRPORT is the nearest one from us , you can fly there and then we pick up you .
If you take the bullet train , our nearest station is GONGYI NAN .

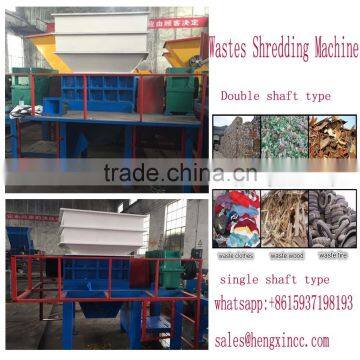

15. Q: What type of scrap newspaper shreder crusher machine you can make ?
A: both single and double shaft type,as photo are for your reference .
