Ore Ball Mill for sale
1.Ball Mill Features
1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
2.Ball mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

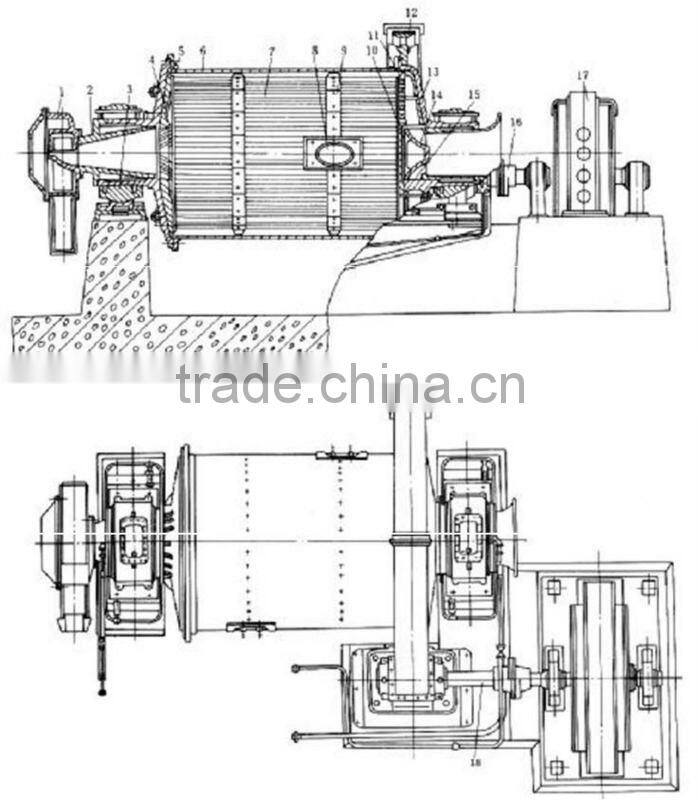

3.Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Model |
Rotary speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity (t/h) |
Motor power(kw) |
Weight(t) |
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-04 |
8-48 |
280 |
50 |
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
56 |
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
137 |
