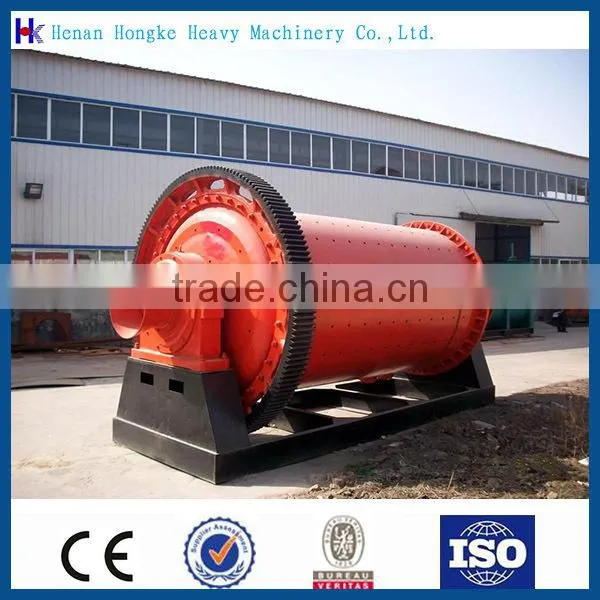

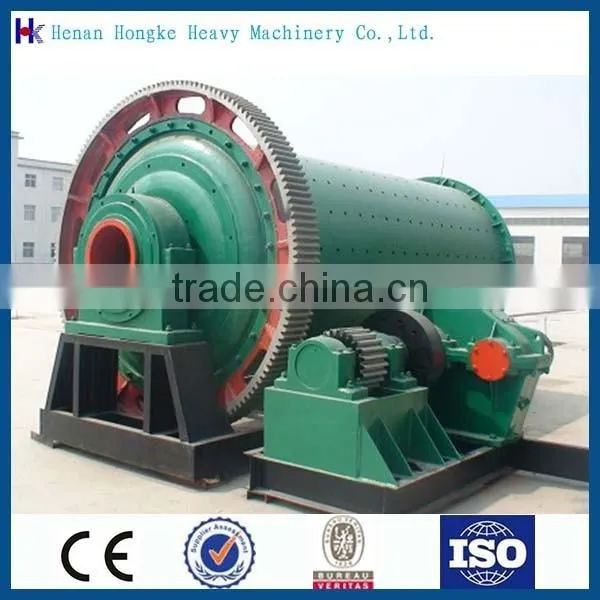

Structures of mine beneficiation plant dry ball mill:
The machine is composed by feeding part,discharging part,rotation part and driving part(reducer,small driving gear,electric motor and electric control).
Features of mine beneficiation plant dry ball mill:
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work are obvious advantages;
3. Various barrel lining and grinding media, excellent corrosion resistance;
4. Installation and adjustment are very convenient and easy to operate.
5.Cylinder is rolled and welded with Q235B steel plate. (the steel thickness is generally 1/100 of the cylinder diameter, for example ball mill of Φ1500, the steel plate thickness is 16 mm), the material of inlet and outlet hollow shaft is ZG35.
6.The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
| Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
ø900*1800 |
36-38 |
1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| ø1200*4500 | 32.4 |
