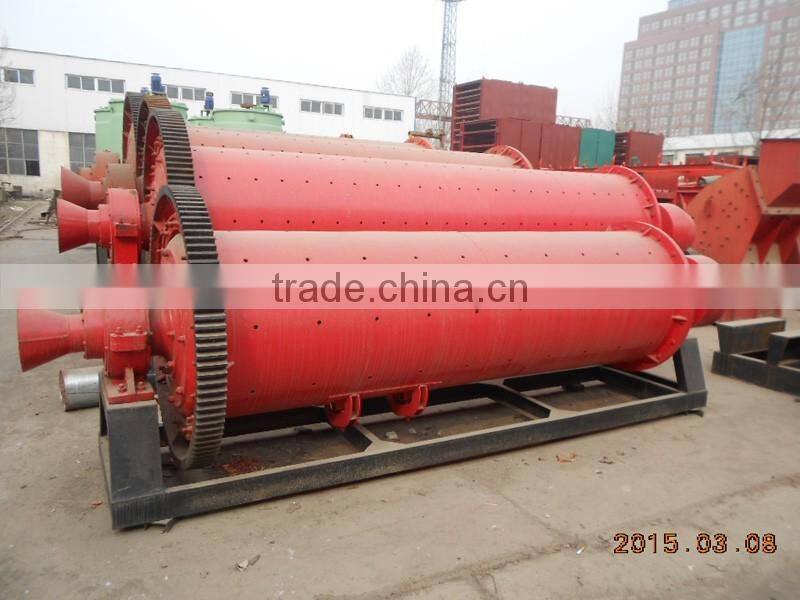

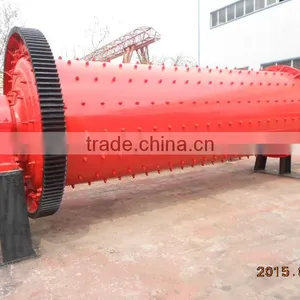

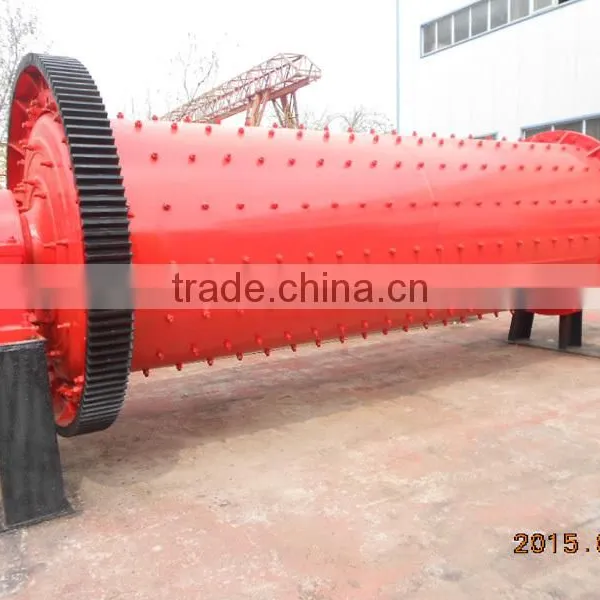

Energy Ball Mill for Grinding Coal
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
QD
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dry Ball MillUS$ 50,000 - 250,000MOQ: 1 Set -
2400*4500 Energy Saving Ball MillUS$ 10,000 - 100,000MOQ: 1 Set
-
Professional Raymond Mill With Best PriceUS$ 10,000 - 10,000MOQ: 1 Set
-
Energy Ball Mill for Grinding CoalUS$ 1,000 - 10,000MOQ: 1 Set
-
MB1530 Wet Ball MillUS$ 10,000 - 500,000MOQ: 1 Set
Condition
New
Type
Ball Mill
Motor Type
AC Motor
Power(W)
50KW
Capacity(t/h)
0.65-90
Place of Origin
Henan, China
Brand Name
HK
Model Number
HGM80/90/100/100L/125
Dimension(L*W*H)
Customized
Weight
34t~60T
Certification
ISO9001:2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Ball Mill Main Features and Benefits
1.The machine is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.
2. The hollow axis adopts the cast steel and the lining can be replaced. The big rotary gear is forged from cast rolling gears.
3. The barrel body is inlaid with wearable plates.
4. The machine runs steadily and efficiently.
2. The hollow axis adopts the cast steel and the lining can be replaced. The big rotary gear is forged from cast rolling gears.
3. The barrel body is inlaid with wearable plates.
4. The machine runs steadily and efficiently.
Working Principle of Ball Miller:
The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Technical Data
| Model | Rotary Speed(r/min) | Ball Quantity (t) | Input Size (mm) | Output Size (mm) | Capacity(t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ900x1800 | 38 | 1.5 | ≤20 | 0.075~0.89 | 0.65~2 | 18.5 | 3.6 |
| Φ900x3000 | 38 | 2.7 | ≤20 | 0.075~0.89 | 1.1~3.5 | 22 | 4.6 |
| Φ1200x2400 | 32 | 3.8 | ≤25 | 0.075~0.6 | 1.5~4.8 | 45 | 12.5 |
| Φ1200x3000 | 32 | 5 | ≤25 | 0.074~0.4 | 1.6~5 | 45 | 12.8 |
| Φ1200x4500 | 32 | 7 | ≤25 | 0.074~0.4 | 1.6~5.8 | 55 | 13.8 |
| Φ1500x3000 | 27 | 8 | ≤25 | 0.074~0.4 | 2~5 | 90 | 17 |
| Φ1500x4500 | 27 | 14 | ≤25 | 0.074~0.4 | 3~6 | 110 | 21 |
| Φ1500x5700 | 27 | 15 | ≤25 | 0.074~0.4 | 3.5~6 | 132 | 24.7 |
| Φ1830x3000 | 24 | 11 | ≤25 | 0.074~0.4 | 4~10 | 180 | 28 |
| Φ1830x6400 | 24 | 23 | ≤25 | 0.074~0.4 | 6.5~15 | 210 | 34 |
| Φ1830x7000 | 24 | 25 | ≤25 | 0.074~0.4 | 7.5~17 | 245 | 36 |
| Φ2200x5500 | 21 | 30 | ≤25 | 0.074~0.4 | 10~22 | 370 | 48.5 |
| Φ2200x6500 | 21 | 30 | ≤25 | 0.074~0.4 | 14~26 | 380 | 52.8 |
| Φ2200x7500 | 21 | 33 | ≤25 | 0.074~0.4 | 16~29 | 475 | 56 |
