Home > Products > Grinding Machine > China Good Performance Limestone Raymond Milling Machine for Sale

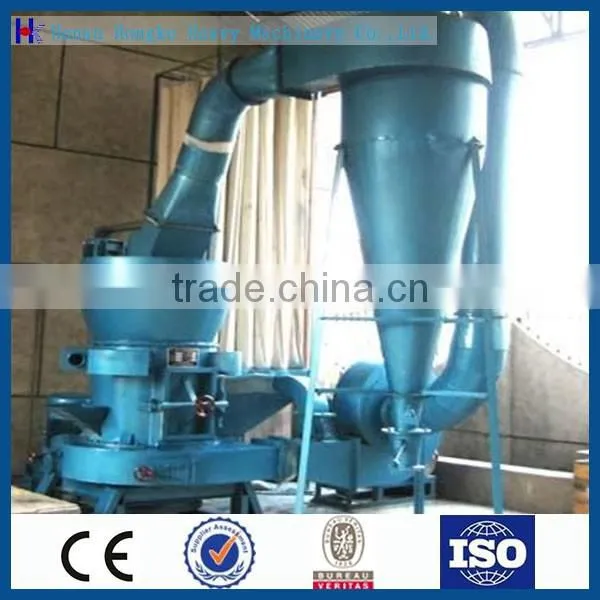

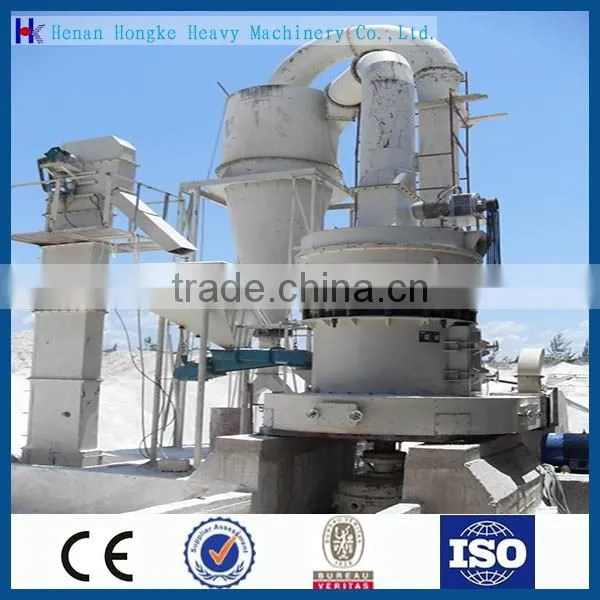

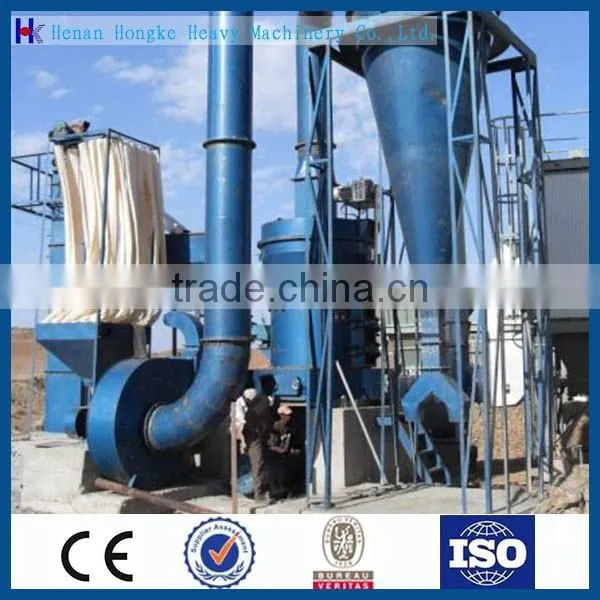

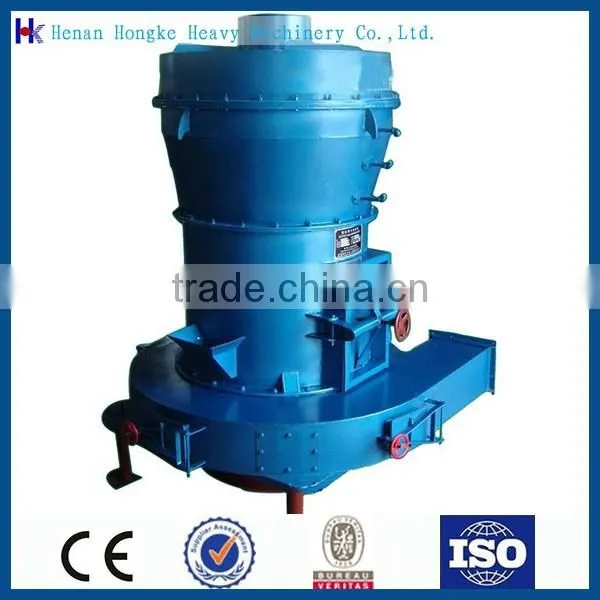

China Good Performance Limestone Raymond Milling Machine for Sale
- 150 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Ball Mill for Grinding Iron Ore
- China Professional Manufacture Dry Ball Mill Grinding Machine with Best Quality
- Reliable quality small conical ball mill
- High quality roll bearing ball mill with long service time
- Reliable quality small ball mill factory
- High quality 2 tons ball mill with long service time
Product Details
Condition: | New | Type: | Raymond Mill | Motor Type: | AC Motor |
Power(W): | 7.5-75kw | Capacity(t/h): | 0.8-60 | Place of Origin: | Henan, China |
Brand Name: | Henan Hongke | Model Number: | Raymond Mill Machine | Dimension(L*W*H): | Reference as the form |
Weight: | 2-26.5T | Certification: | BV CE ISO9001:1008 | Warranty: | more than 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard Export Package or Wooden Boxes Package
Product Description
Introduction of the Raymond Mill Machine
Raymond mill manufactured in Hongke Machinery has the feature of high efficiency, low energy consumption, small occupation and less capital investment without harming the environment. As a result of so many years of practice and continuous improvement, its structure has been improved steadily.
Raymond mill is widely used for the grinding and processing of mineral materials in the fields of metallurgy, building materials, chemical engineering and mine, which is suitable for the processing of non-flammable and non-explosive materials such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation materials with Moh’s hardness less than 9.3 and humidity less than 6%.
Raymond grinding mill is also used in mining, building materials, chemical engineering and metallurgy industries for size reduction, dispersion, or specialized needs, powder generation and processing in industrial process.
Features of Raymond mill
1. Raymond mill is spatial structure with small occupation and strong complete set, which can be a production system by itself from lump materials to finished powder
2. The finished powder has uniform fineness that other grinding mill seldom has with a screening rate of 99%.
3. The driving gear of host is equipped with sealing gear case and belt wheel with smooth driving and reliable operation.
4. The major parts of Raymond mill is made of superior steel while wear-resistant parts adapt high-performance wear-resistant materials. The abrasive resistance of this complete machine is very high with reliable operation.
5. The equipment uses concentrate control, and unmanned operation almost can be realized in the milling workshop with convenient maintenance.
Working principle of Raymond mill
When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.
Technical Parameter of the Raymond Mill Machine
Type Parameter | 6R4525 | 5R4119 | 4R3216 | 3R90 | 3R85 | 3R75 | 3R65 | 3R60 |
---|---|---|---|---|---|---|---|---|
4R90 | 4R85 | |||||||
Feeding size (mm) | ≤30 | ≤25 | ≤25 | ≤25 | ≤20 | ≤20 | ≤15 | ≤15 |
Particle size of finished product (mm) | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 | 0.125- 0.044 |
Shift output of different material fineness (t) | 16-120 | 8-60 | 4-45 | 3-35 | 2-28 | 1.5-20 | 1-18 | 0.5-8 |
Rotation speed of central shart (r/min) | 82 | 105 | 130 | 160 | 160 | 160 | 180 | 280 |
Diameter of pulverizing ring (mm) | 1770 | 1400 | 1073 | 973 | 885 | 865 | 725 | 495 |
Diameter of pulverizing roller (mm) | 450 | 410 | 320 | 300 | 270 | 260 | 210 | 140 |
Height of pulverizing roller (mm) | 250 | 190 | 160 | 160 | 150 | 150 | 150 | 100 |
Main Motor | Y315m- 4-132 | Y280s- 4-75 | Y225s- 4-37 | Y225m- 8-30 | Y225m- 8-22 | Y225s- 8-18.5 | Y200L- 8-15 | Y160m- 6-7.5 |
Fan Motor | Y315m- 4-132 | Y250m- 4-75 | Y200L- 4-37 | Y180m- 4-22 | Y160L- 4-15 | Y160L- 4-15 | Y160m- 4-11 | Y132s- 2-5.5 |
Analyzer motor | Y160m- 4-11 | Yc200- 4B-7.5 | Yc120- 4a-5.5 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y112m- 6-2.2 | Y90L- 6-1.1 |
Testing
If ore sample is provided by customers, we may do free spectrum or other testing. The testing reported is conducted by Mineral Prospecting Institute, and ranks the top in China.
Reagent Recipe
According to requirements for final products, we may provide free reagent ratio and dosage to customers.
Workflow
After knowing detailed information from customers, our technicians will provide the workflow and configuration for free.
Local Design
Our technicians will provide local design, layout, and tailing design for free after knowing detailed area of customers.
Guidance
Our engineer may provide 10 day’s training and guidance for free if necessary (including operation of machines, working notes and maintenance).
Company Profile
Henan Hongke Heavy Machinery Co., Ltd. . is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing. We are a newly-risen dazzling star in China's machinery industry with the development of market economy.
Our manufactory is a high-tech enterprise that specializes in the research and production of rotary kilns, driers, and crushers. Our major products, for example, rotary kilns, Raymond mills, a series of crushers, stone crushers, and a series of screens, jaw crushers, hammer crushers, impact crushers, cone crushers, and sand making machines, rank highly in the domestic market and some products have reached international advanced level.
Due to decades of venture and the self-improvement of our staff, our company has developed well. Employing a large number of talents who are keen on innovation and enjoy a high level in outstanding scientific research and management in the industry, our company cultivates talents with strict disciplines and high efficiency in order to forge ahead together. In order to meet the needs of the development of our company and the market competition, we have built the first-class modern production and testing base, established a worldwide sales network, and provided considerable services for our respectable customers. We adhere to the pioneering ideas of "quality prospers our company", pursue the service tenet of "we satisfy our customers with our whole heart", and insist on the operation essential of "honest and good faith, and seek truths from facts". We have won honorable titles like Good Credibility of After-Sales Service, and our "Hongke" trademark has become a symbol of the reputation.
The quality is the life of our enterprise. Our company has modern scientific management, advanced production equipment and strict testing means to improve products. Our company will continue to uphold our concept, serve our nation sincerely, and rejuvenate our nation. We are willing to work together with friends from all over the world to create a bright future and flourish our national industry.
Contact Us
- Henan Hongke Heavy Machinery Co., Ltd.
- Contact nameKevin Wang
- Phone86-371-67816766
- AddressGongye Road and Tonghang Er Road crossing, Shangjie District, Zhengzhou City Zhengzhou,Henan
