China Professional Manufacture Dry Ball Mill Grinding Machine With Best Quality

China Professional Manufacture Dry Ball Mill Grinding Machine With Best Quality thumbnail-1
China Professional Manufacture Dry Ball Mill Grinding Machine With Best Quality photo-1
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Hongke Heavy Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 37kw
Capacity(t/h) Very High, 3-6
Place of Origin Henan, China
Brand Name Henan Hongke
Model Number Dry Ball Mill
Dimension(L*W*H) Reference as the form
Weight According to the Type
Certification ISO9001:1008 BV CE
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas

Feed Size:

Less than 30 mm

Discharge Size:

0.4-0.047mm

Driving Mode:

Edge drive

Grinding Way:

wet grinding or dry grinding

Lining Material:

Manganese alloy, ceramic, rubber

Overview of Dry Ball Mill Grinding Machine

According to different ways of ore discharging, ball mill is divided into grate ball mill and overflow ball mill, which is currently the most common ore grinding machine. Overflow ball mill is the key equipment for grinding after the crushing process, and it is widely used in the manufacture industries such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Overflow Ball Mill are generally used to grind materials with 1/4 inch and finer to the particle size of 20 to 75 microns. In order to achieve reasonable efficiency with ball mills, they must be operated in a closed system with oversize material continuously being recirculated back into the mill to be reground.

The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, and electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choosing.

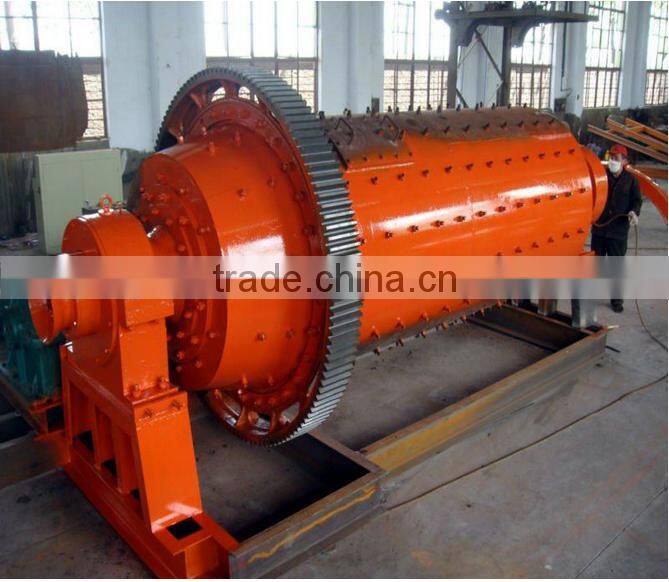

China Professional Manufacture Dry Ball Mill Grinding Machine with Best Quality

The advantages of Dry Ball Mill Grinding Machine:

( 1 ) It can be used for dry or wet milling;
( 2 ) It can be crushed in a closed machine, no dust flying;
( 3 ) It has function of reliable operation, cheap grinding and easy to replace;
( 4 ) Intermittent Operation can also be operated continuously;

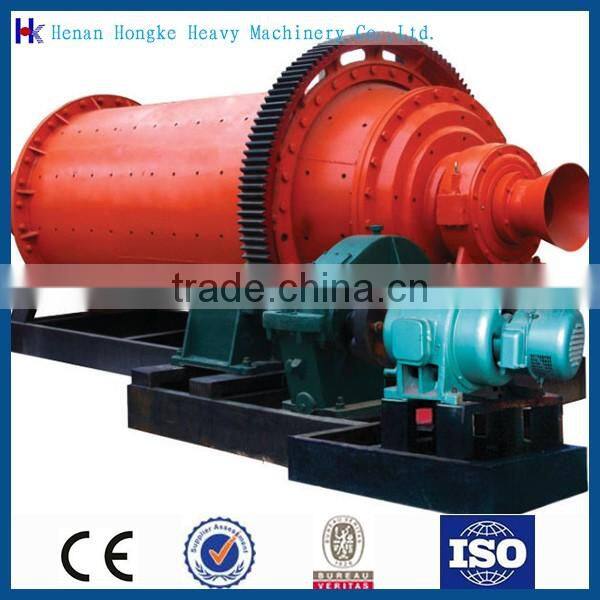

China Professional Manufacture Dry Ball Mill Grinding Machine with Best Quality

Overflow Dry Ball Mill Machine Working Principle:

This overflow ball mill is a horizontal cylinder rotating device. It is equipped with drive gear which drives the cylinder for rotation in the working process outside the cylinder. There are two chambers. Materials go into the first chamber of the grinding machine spirally and evenly through the feeding hollow shaft from the feeding device, and there are ladder lining plates or ripple lining plates inside the first chamber where there are different kinds of steel balls. When the cylinder rotates, it will produce eccentric force to bring the steel balls to a certain height, the steel balls will fall down to impact and grind the materials. After being coarsely grinded in the first chamber, the materials will go into the secondary chamber where there are flat lining plates through the single-layer partition board. There are steel balls for further grinding the materials in the lining plate, and steel ball is set inside the second chamber. Materials will be grinded. Finally the powdery materials will be discharged from the discharging grating bar to complete powder grinding operation.

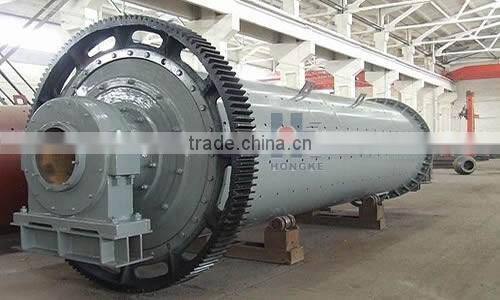

China Professional Manufacture Dry Ball Mill Grinding Machine with Best Quality

Parameter Machine:

Model Shell rotation speed
(r/min)		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
