High Quality Roll Bearing Ball Mill With Long Service Time

Henan Hongke Heavy Machinery Co., Ltd. Gold Verified Supplier
5Yrs
High Quality Roll Bearing Ball Mill With Long Service Time thumbnail-1
High Quality Roll Bearing Ball Mill With Long Service Time photo-1
US$ 2,500 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 22kw
Capacity(t/h) 1.1-3.5t/h
Place of Origin Henan, China
Brand Name Hongke
Model Number 0.9*3m
Dimension(L*W*H) Customized
Weight 6.7t
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

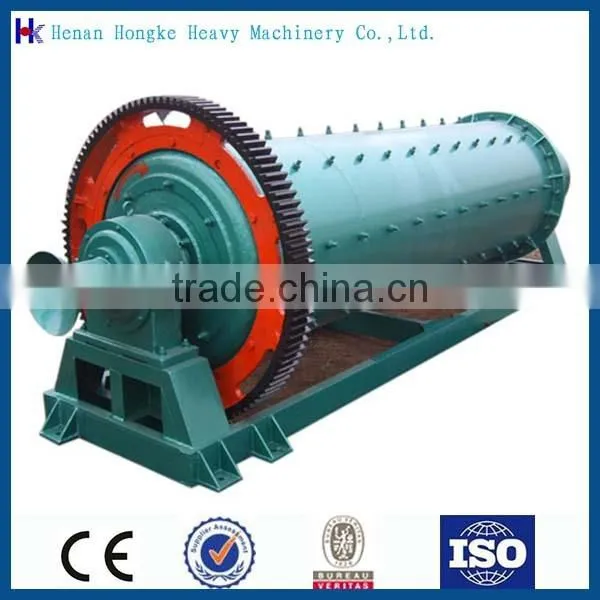

Introduction of  roll bearing ball mill

Roll bearing ball mill  are crucial equipment for grinding after materials are crushed. It is an efficient tool for grinding various materials into powder. Ball Mill is an efficient tool for grinding many materials into fine powder. Cone ball mills are used to grind many kinds of mine and Other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are ways of grinding: The dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material. Lattice Ball Mill are a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, Chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mills can grind ore or other materials that can be grinded either by wet process or by dry process.

Advantages of  roll bearing ball mill

1. As the ball mill transmission adopts rolling bearing instead of sliding bearings, friction is greatly reduced with easy start-up and significant saving energy;
2. Its discharging end adopts cone design, which not only increased the volume, but also forcing grading of ball in cone side. The closer exit, the smaller ball diameter. It increased function of repeated grinding, and further improve fineness of the material;
3. It adopts grooved ring-type lining plate, increased contact surface of ball ore, strengthen grinding effect, has hoisting capacity to ore and reduced power.
4. It adopts whole rack, convenient for civil construction and equipment installation.

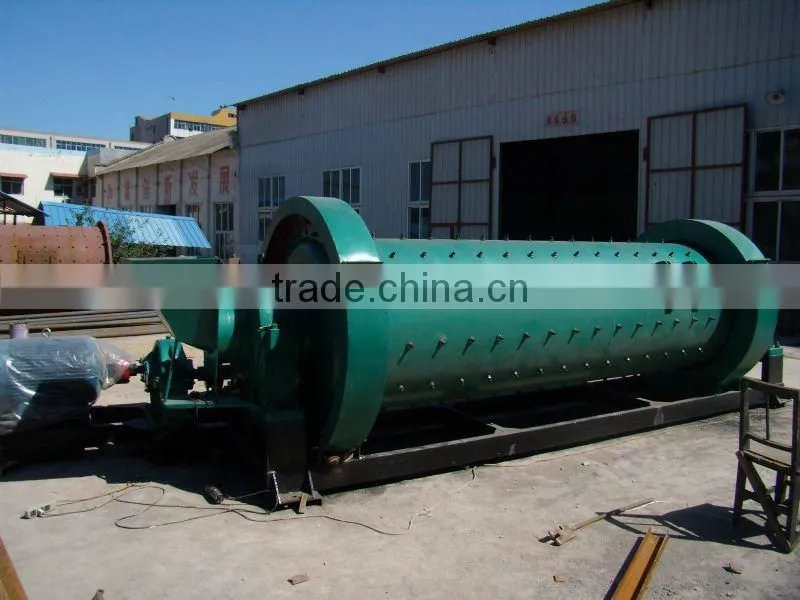

High quality roll bearing ball mill with long service time
Working principle of  roll bearing ball mill

The cone type ball mill for the horizontal tube-shaped rotating device, outer gear, the two positions, the lattice-type energy-saving ball mill. Material from the feeding device into the compound through the air shaft screw evenly into the mill first warehouse, the warehouse there are ladder liner or corrugated lining, built-in different specifications steel ball, rotating cylinder produces centrifugal force will be brought to a certain height balls After the fall of materials produced heavy blow, and abrasive.

Main specification:

ModelShell rotation speed
(r/min)		Ball load
(t)		Feeding size
(mm)		Discharging size
(mm)		Capacity
(t/h)		Motor power
(kw)		Total weight
(t)
900×180036-381.5≤200.075-0.890.65-218.55.5
900×3000362.7≤200.075-0.891.1-3.5226.7
1200×2400363≤250.075-0.61.5-4.83012
1200×3000363.5≤250.074-0.41.6-53712.8
1200×450032.45≤250.074-0.41.6-5.85513.8
1500×300029.77.5≤250.074-0.42-57516.8
1500×45002711≤250.074-0.43-611021
1500×57002812≤250.074-0.43.5-613025.8
1830×300025.411≤250.074-0.44-1013029
1830×450025.415≤250.074-0.44.5-1215535.5
1830×640024.121≤250.074-0.46.5-1521043
1830×700024.123≤250.074-0.47.5-1724543.8
2100×300023.715≤250.074-0.46.5-3615534.8
2100×450023.724≤250.074-0.48-4324542
2100×700023.726≤250.074-0.48-4828056.6
2200×450021.527≤250.074-0.49-4528051.8
2200×650021.735≤250.074-0.414-2638060
2200×700021.735≤250.074-0.415-2838062
2200×750021.735≤250.074-0.415-3038064.8
2400×30002123≤250.074-0.47-5024558
2400×45002130≤250.074-0.48.5-6032069
2700×400020.740≤250.074-0.412-8038094
2700×450020.748≤250.074-0.412-90480102
3200×45001865≤250.074-0.4As per process conditions630137
3600×45001790≤250.074-0.4As per process conditions850158
3600×600017110≤250.074-0.4As per process conditions1250175
3600×850018131≤250.074-0.445.8-2561800252
4000×500016.9121≤250.074-0.445-2081500203
4000×600016.9146≤250.074-0.465-2481600218
4000×670016.9149≤250.074-0.445-2521800238
4500×640015.6172≤250.074-0.454-3062000280
5030×640014.4216≤250.074-0.468-3862500320
5030×830014.4266≤250.074-0.488-5003300403
5500×850013.8338≤250.074-0.4108-6154500525



FAQ

1. What is the raw material do you want to mill?

2. What is the capacity per hour do you need?

3. What is the raw material input size?

4. What is the output size of your product?

Our engineers will suggest you the most suitable one for you according to your information.

We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.

Now please click the following contact to send us email for best offer and more detail!
 ↓↓↓
