GD best seller quarry blasting small portable borehole mining hydraulic hard rock drilling machine

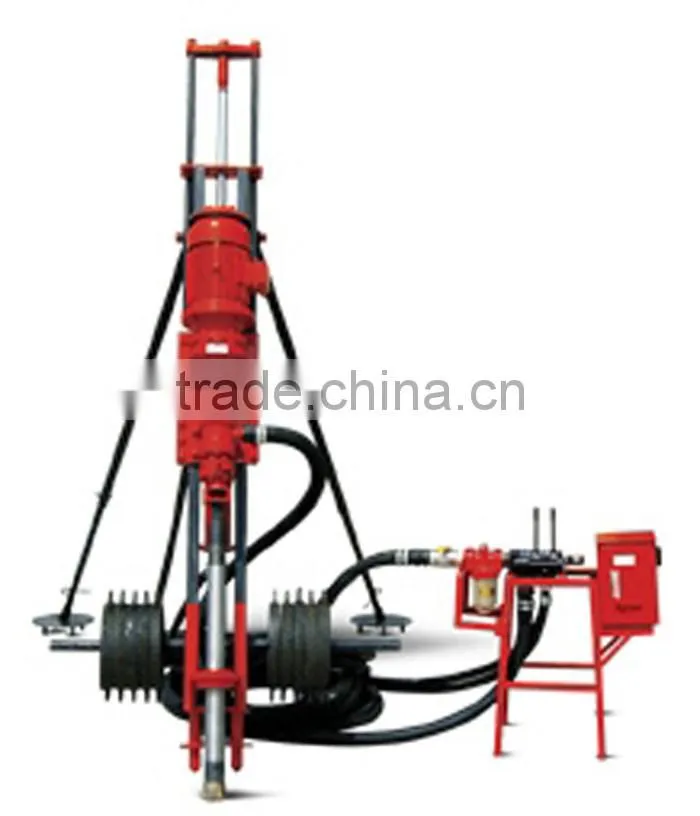

GD70 best seller quarry blasting small portable borehole gold mining drilling equipment is a convenient compact electric down-the-hole(DTH) drill, it has many advantages,such as high efficiency,flexible movement, easy operation, low initial investment, and good economic benefits and so on.
Working Principle:
GD70 electric drilling rig is the equipment that converts the electric energy and compressed air into mechanical energy to break rock. After electrify, the drilling tool is driven by the torque produced by cycloidal reducer through the intake seat. Compressed air are divided into two way after going through oil mist device and pneumatic valve: one way enters into the cavity of promoting cylinder, which produces an axial force drives the drilling tool to promote or elevate through the cylinder piston and guide rod; the other way enters into the impactor through the intake seat, so as to achieve impact drilling.
Application:
GD70 best seller quarry blasting small portable borehole gold mining drilling equipment is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized mine, earth and rock engineering and so on.
Technical Parameter:
| Model | GD-70 |
| Hole diameter (mm) | 60-80mm |
| Hole depth (m) | ≥15m |
| Rock hardness | f=6-20 |
| Pressure (mpa) | 0.5-0.7bar |
| Air consumption (m³/min) | ≥3.5m3/min |
| Rotating speed (r/min) | 0-125rpm |
| Hammer | QCZ70(60) |
| Drilling rod | Φ40mm*1000mm |
| Max. lifting force (N) | 3600N |
| Motor power | 3kw |
| Bit | Φ70(60-80) |
| Drilling components | Standard(option) |
We also have portable pneumatic DTH drilling rig and pneumatic&hydraulic DTH drilling rig.
The power :1 Pneummactic ; 2 Electric&pneumatic ; 3 Hydraulic & pneumatic three type for your choose.
| Model |
hole diameter (mm) |
Hole depth (m) |
rotating speed (rpm) |
working pressure ( MPa ) |
Rod φ (mm) |
Air consumption (m3) |
Lift Power (KN) |
power (KW) |
| GD70 | 60-80 | ≥15 | 0-125 | 0.5~0.7 | 40x1000 | ≥3.5 | 4 | 3kW |
| GD100 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥7 | 9.6 | 4kW |
| GD100B | 80-100 | ≥20 | 0-84 | 0.5~0.7 | 60x1000 | ≥7 | 9.6 | 4kW |
| GD120 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥9 | 9.6 | 5.5kW |
| GD120B | 80-120 | ≥20 | 0-78 | 0.7~1.0 | 60x1000 | ≥9 | 9.6 | 5.5kW |
| GD145B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1000 | ≥12 | 12 | 7.5kW |
| GD150B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12 | 7.5kW |
| GD155B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12 | 7.5kW |
| GD165B | 90-150 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥15 | 12 | 11kW |
| GD165Z | 90-160 |
80 | 0-60 | 0.7~1.4 | 89×1.5 | 220-280L/S | 12 |
8.8kW |
| GEC90 | 80-130 | ≥20 | 0-75 | 0.5~0.7 | 60x1000 | ≥ 6 | 15 | Hydraulic |
| GEC100 | 80-130 | ≥20 | 0-93 | 0.5~0.7 | 60x1000 | ≥12 | 9.6 | Pneumactic |
Advantages:
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment drilling rig is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized

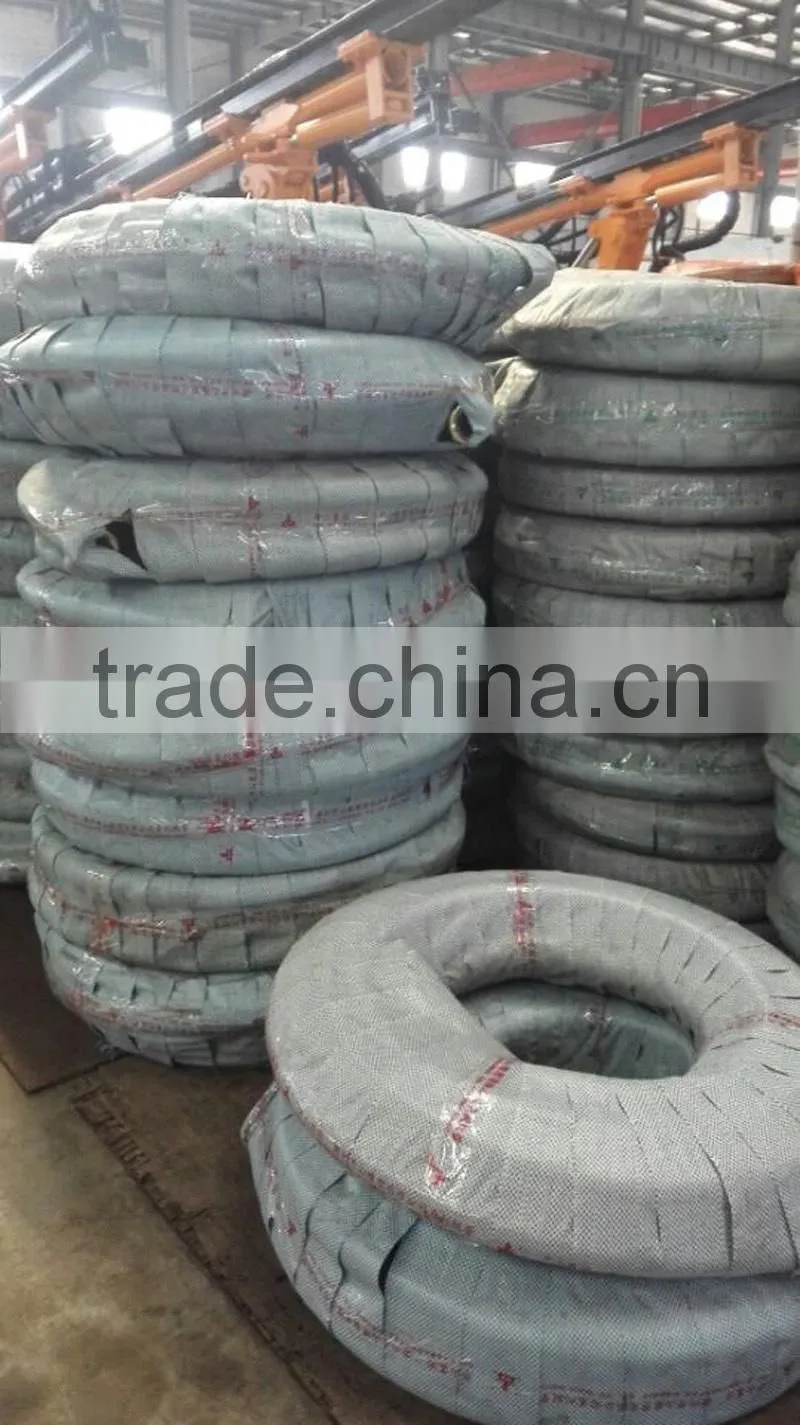

Air hose:

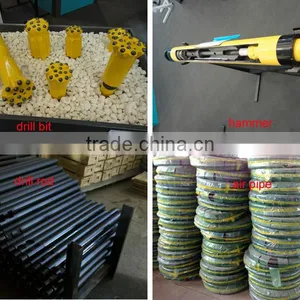

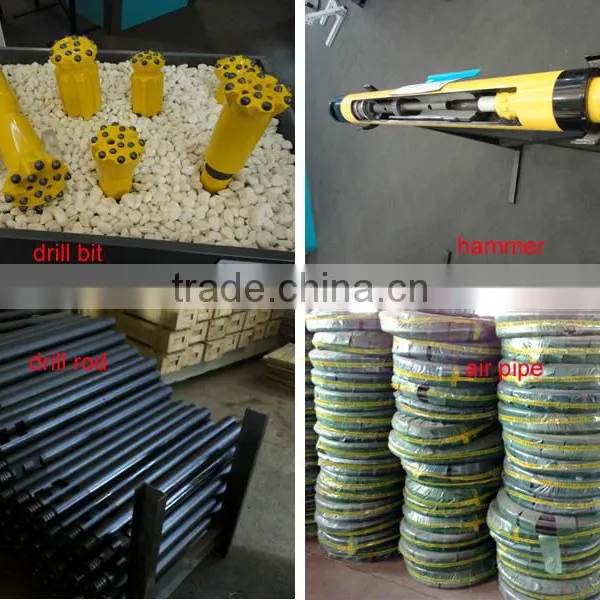

Drill rod:Drill bit:Drill hammer:
Working site:
We have special service team which will offers you professional guidance:
1.Low maintenance cost, high efficiency.Minimizing downtime of the equipment.
2.Planned maintenance budget.Maintenance plans are designed according to the customers' different requirements.Providing dedicated and experienced maintenance technicians.
3.Our sales team will response for your question within 24 hours(holidays excluded) 4.Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5.Quality Control: 1)We have our own experienced QC 2)There will be strict inspection and testing for every order before shipping out. 6.After-sale Service: 1)Quality Guarantee:12 months from delivery date(quick-wear part except) 2)For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)
