Portable Good Performance Water Well Drilling Machine in Stock

Portable Good Performance Water Well Drilling Machine in Stock thumbnail-1
Portable Good Performance Water Well Drilling Machine in Stock photo-1
US$ 5,100 - 5,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, portable water well drilling rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Core Drilling Rig, portable water well drilling rig
Power Type Diesel
Place of Origin Henan, China
Brand Name GEC
Model Number GY-100 water well drilling machine
Usage Water Well
Certification CE, ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

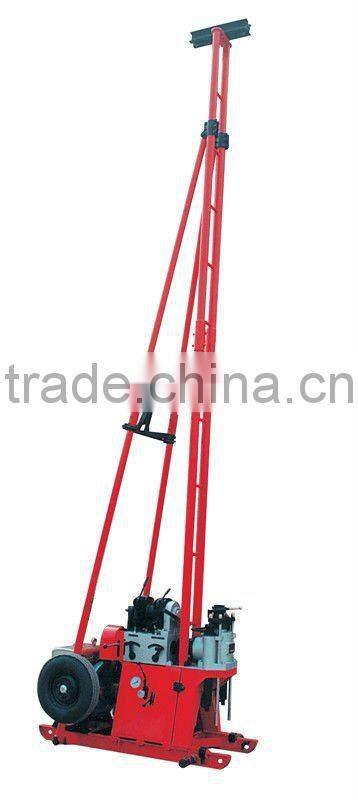

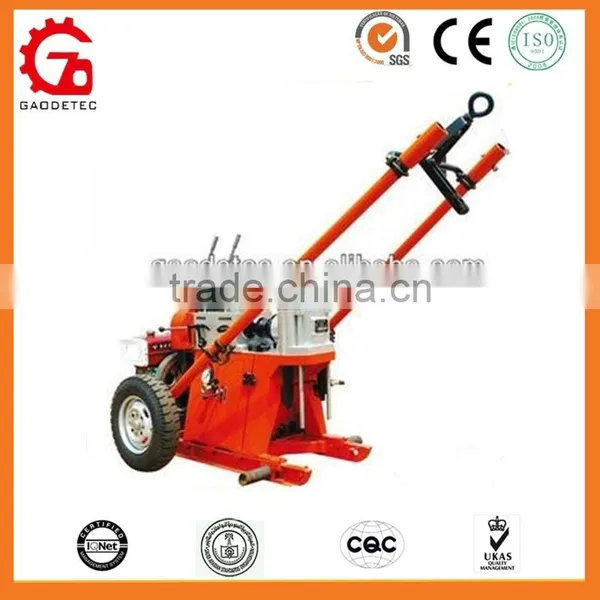

Portable good performance water well drilling machine in stock



Product Description

GY-100 drilling machine is a multi-use engineering drilling machine.

Application:

1.Industrial and civil construction, railway, bridge,etc. engineering geological exploration.

2. small water wells

3.small size foundation pile hole.



Technical Data:



Basic   Parameters
Drilling depth 25,135,175m
Drilling diameter 300,76,46mm
Gross weight of drilling machine 450kg
Dimension (L×W × H) 1580 × 1080× 1200 mm
Revolving Plate
Rotate speed 48   100 200 350 650 r/min
Maximum torque 2000N*m
Maximum Cylinder driving force 20KN
Maximum Cylinder lifting force 30KN
Lifter
Lifting capacity 18KN
Bobbin line speed (2 layers) 0.32,0.66,1.24,2.58 m/s
Bobbin diameter 125mm
Rope diameter 11mm
Rope capacity 24m
Drilling tower
Type Mast drill tower
Height 6m
Drive motor
Type ZS1100 diesel engine
Rated power 11.2 KW (15HP)
Net weight 122 kg
Mud pump
Type single-cylinder double acting reciprocal piston  pump
Liner Diameter 80mm
Stroke 120mm
Displacement 120L/min
Pressure 1.4Mpa
Input Power 4.41kw
Input pipe Diameter 38mm
Output pipe Diameter 25mm
Power Diesel   engine electric   engine
Rated power 4.41kw 4kw
Rated speed 2600r/min 1440r/min
Weight(including engine) 1200kg
Dimension (L×W × H) 1030*570*780mm



 Portable good performance water well drilling machine in stock

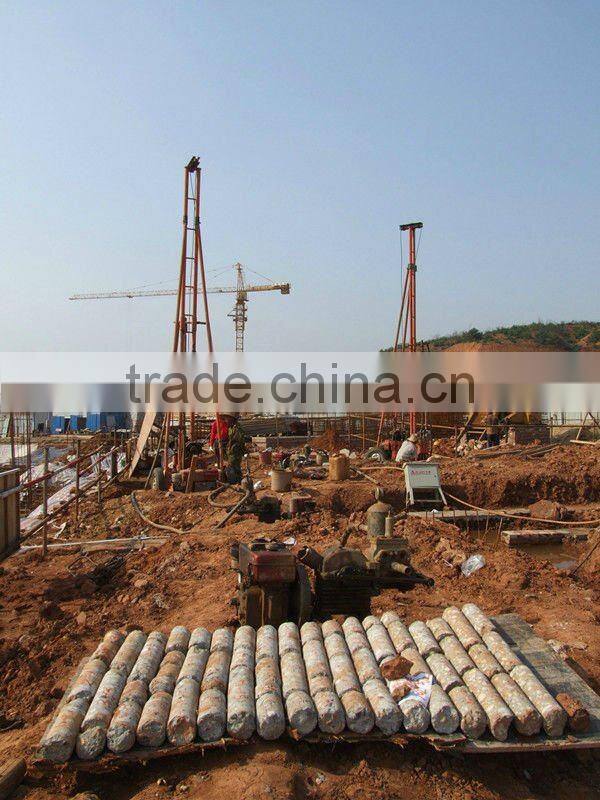

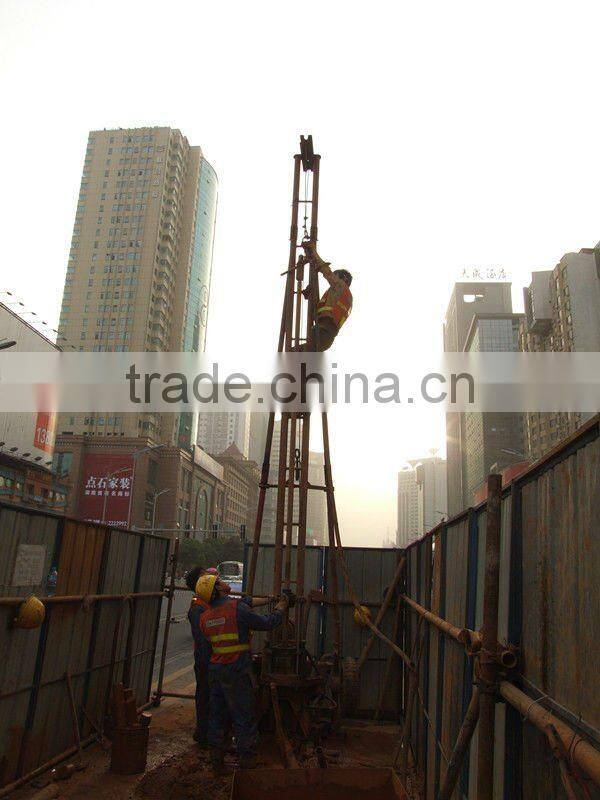

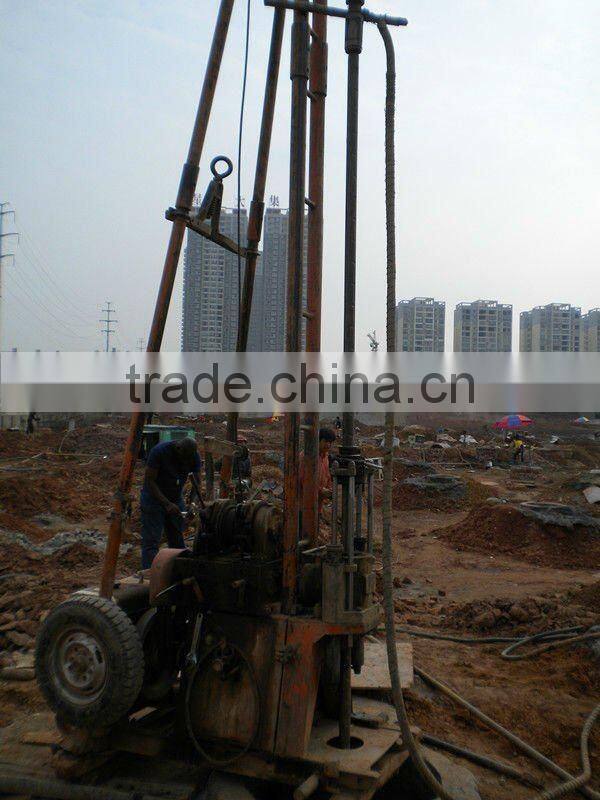

Application

Portable good performance water well drilling machine in stock

Portable good performance water well drilling machine in stock

Portable good performance water well drilling machine in stock

Certifications

Portable good performance water well drilling machine in stock

Our Services

Trade assurance advantages:

1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
