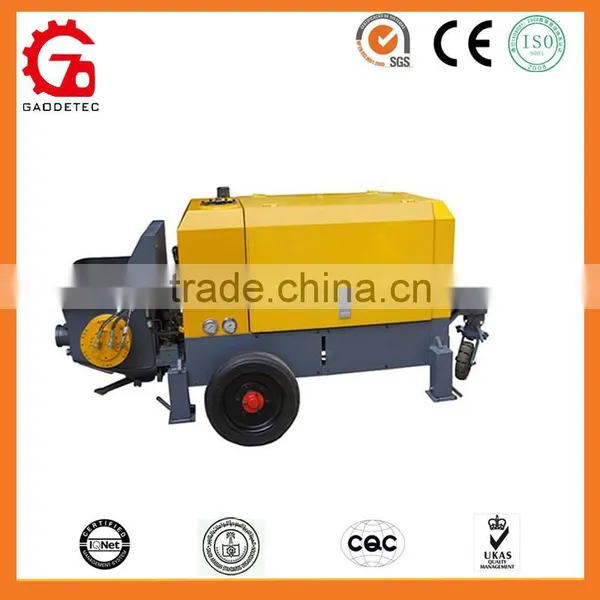

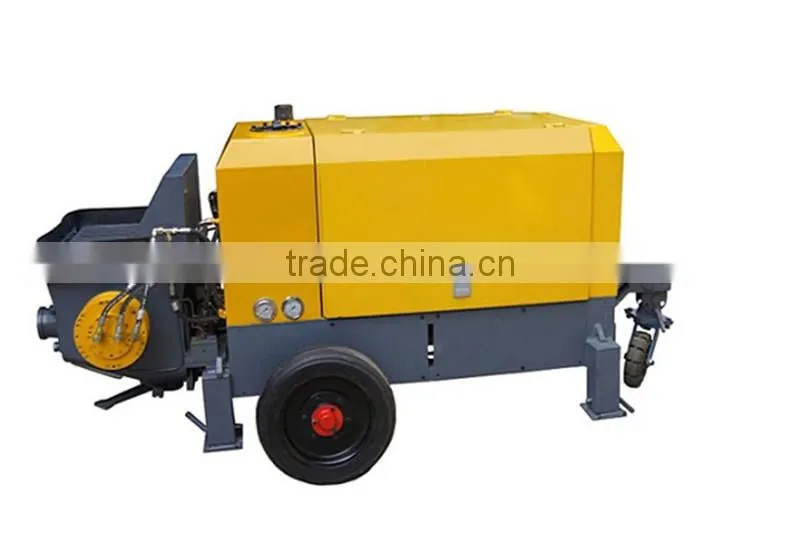

GSZ800 Electric Drive Wet Shotcrete Machine with CE ISO
GSZ800 wet shotcrete machine is a universal concrete spraying machine for the processing of wet concrete.

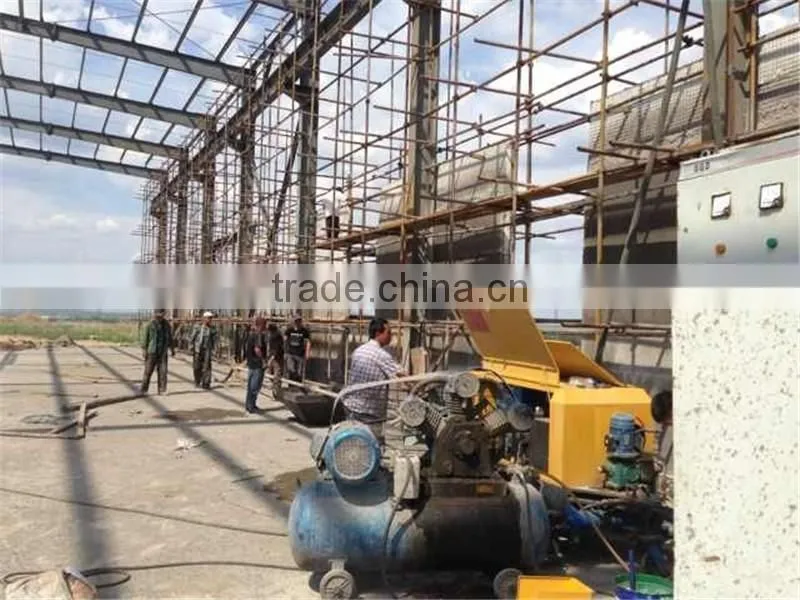

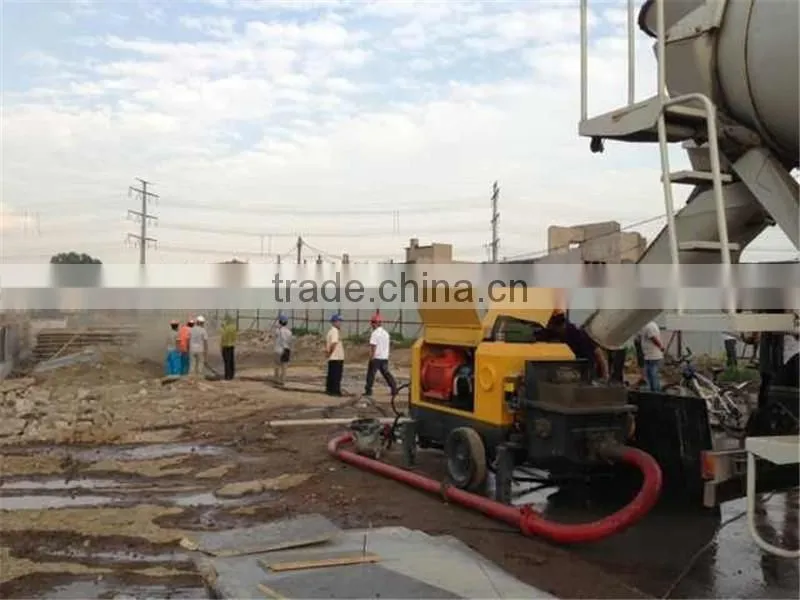

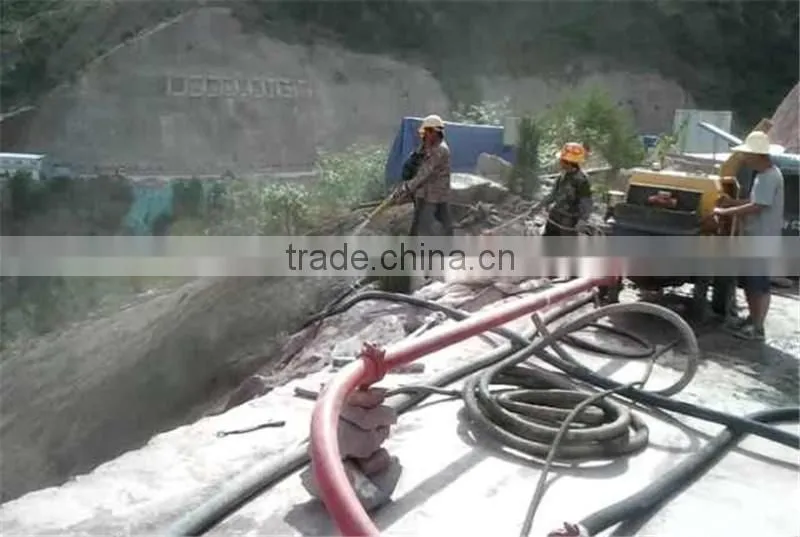

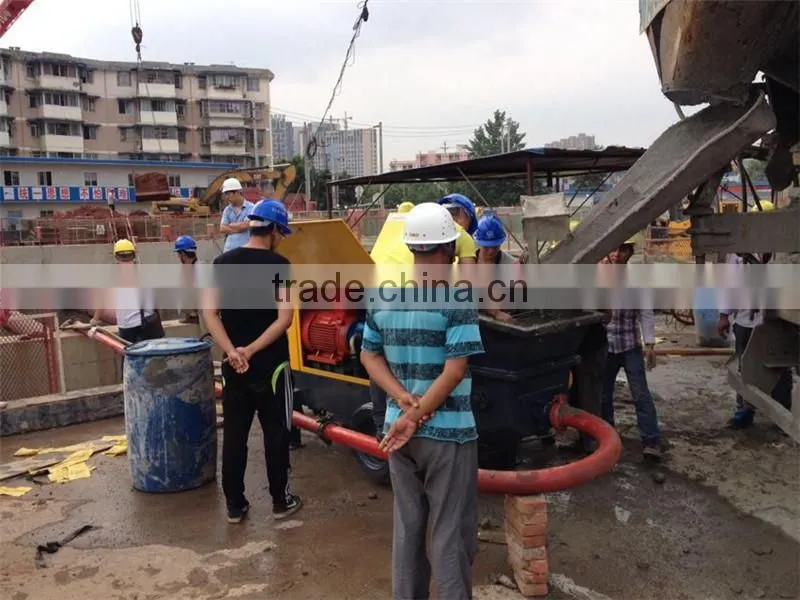

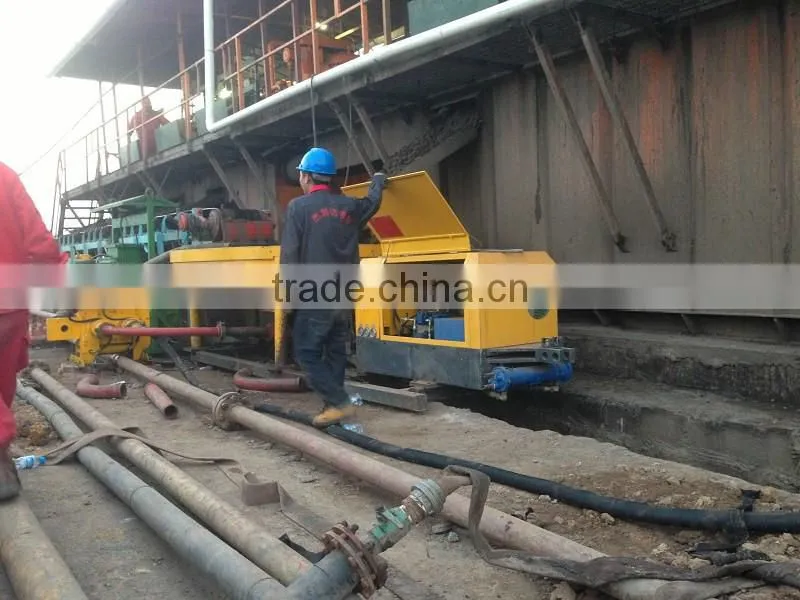

GSZ800 is developed for the application of shotcrete in tunnel, building, mines, slopes, sea port and other pumping and spraying civil project.
Feature:
1) High efficiency: special full hydraulic pumping design;
2) Continuously adjustable spraying
3) Centralized lubricating system makes wearing spare parts working life more longer
4) Easy move, easy maintenance
GSZ800 wet shotcrete machine main technical data:
Rated Output |
4-8m3 /h |
|
Max. Aggregate Size |
15mm |
|
Concrete Slump |
10-20cm |
|
Conveying Hose Inner Diameter |
51/ 64mm |
|
Operating air Pressure |
0.3-0.5MPa (43-86PSI) |
|
System air pressure |
>=0.5Mpa |
|
Air Consumption |
>10m3 /min(357-430CFM) |
|
Max. spraying distance |
Horizontal |
150m |
Verticle |
80m |
|
Dust alongside machine |
<10mg/min |
|
Rebound(under standard technology) |
Average=<20 |
|
Main Motor Power |
22kW |
|
Material charging height |
1100mm |
|
Overall Dimension(L × W × H) |
2580*1110*1180mm |
|
Net Weight |
1600kg |
|
