GDS1500 Hydraulic Powered Wet Shotcrete Machine for Sale
- 20 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Max. Conveying Distance: | 80 m | Max Aggregate Size: | 10 mm |
Hose Inner Diameter: | 38 mm | Air Consumption: | 3 m3/min, 0.5 MPa | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | GDS 1500 Wet Shotcrete Machine for Sale | Voltage: | 230V/380V/415V/440V/600V |
Power(W): | 9.55 kW | Dimension(L*W*H): | 1900*850*1250 mm | Weight: | 650 kg |
Certification: | ISO, CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

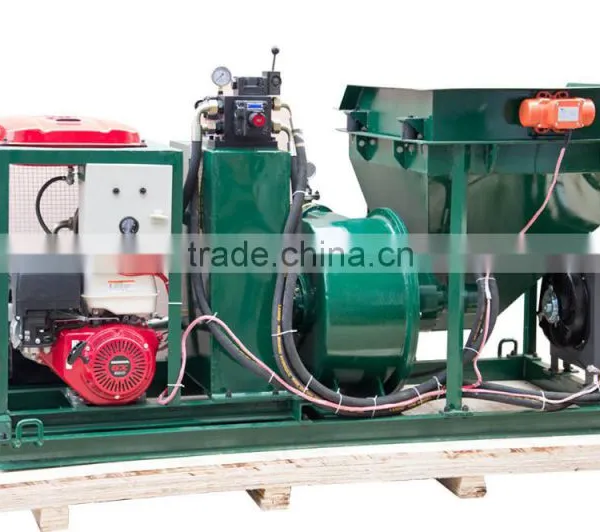

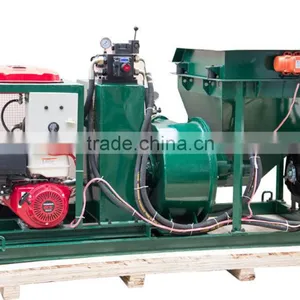

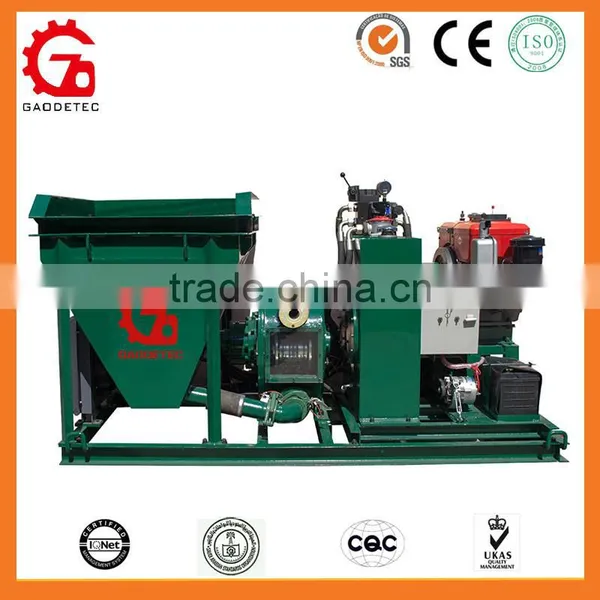

GDS1500 Hydraulic Powered Wet Shotcrete Machine for Sale
The GDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
Electric Motor Driven
Diesel Engine Driven
Gasoline Engine Driven
Features ( Wet Shotcrete Machine for Sale )
· highly-reliable direct drive planetary gearbox
· infinite speed variation
· Easily operating on site work
· Standard spare part supply
Datasheet ( Wet Shotcrete Machine for Sale )
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/ 3.5 Mpa (Trelleborg Hose) |
Output | 1.5-3m3/h |
Max. Aggregate | 8mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze Pump | LH50-455 |
Overall Dimension | 1900x850x1250mm |
Hopper Volume: | 200 Liter |
Requested Air Compressor | 3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Details of GDS 1500 Wet Shotcrete Machine for Sale
Three-roller Squeeze Pump
Yuken Hydraulic Valve
High Pressure Gear Pump
Oil Vibrator
Shock Resistant Pressure Gauge

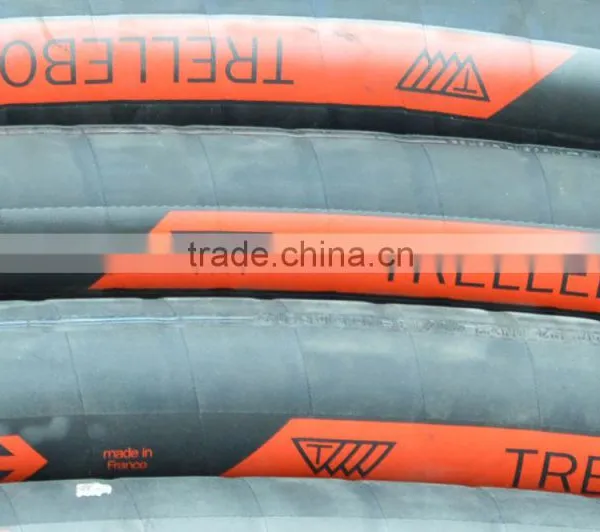

Trelleborg Squeeze Hose
Accessories
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Export Packing ( Wet Shotcrete Machine for Sale )
Packing List
No. | Description | Qty. | Unit | Remarks |
1 | GDS1500 main machine | 1 | set | |
2 | Conveying hose, ID38, L10m | 1 | pcs | |
3 | Conveying hose, ID50, L10m | 1 | pcs | |
3 | Reducer 2’’/1.5’’ | 1 | pcs | |

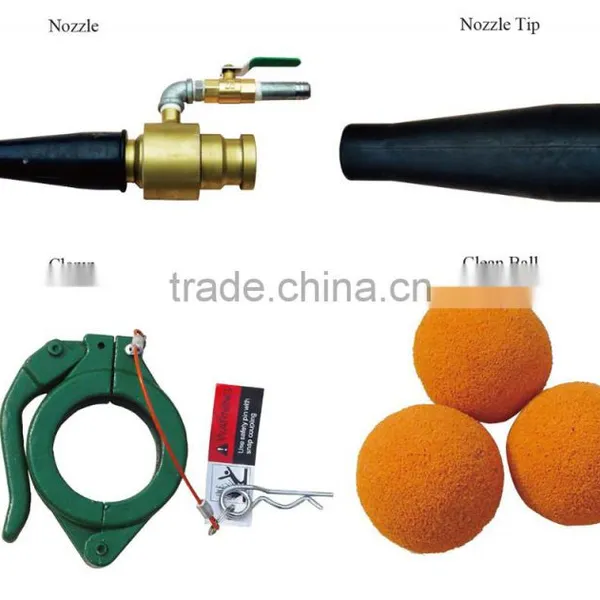

5 | 1.5’’shotcrete nozzle assy. | 1 | set | |
6 | 1.5’’nozzle tip | 1 | pcs | |
7 | Clamp | 2 | sets | One set (one 1.5’’, one 2’’) |
8 | Clean ball | 2 | sets | One set (one 1.5’’, one 2’’) |
9 | Accessories | 1 | Set |
