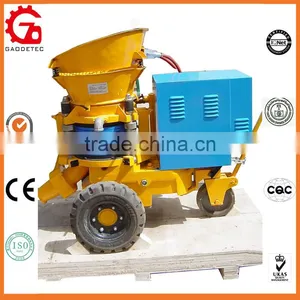

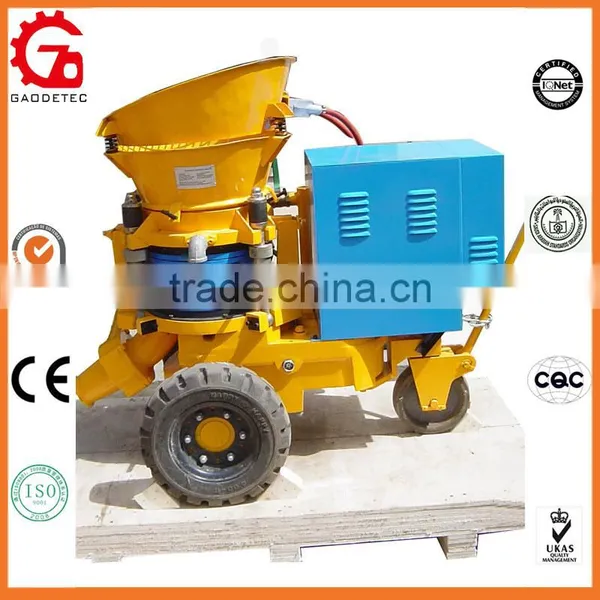

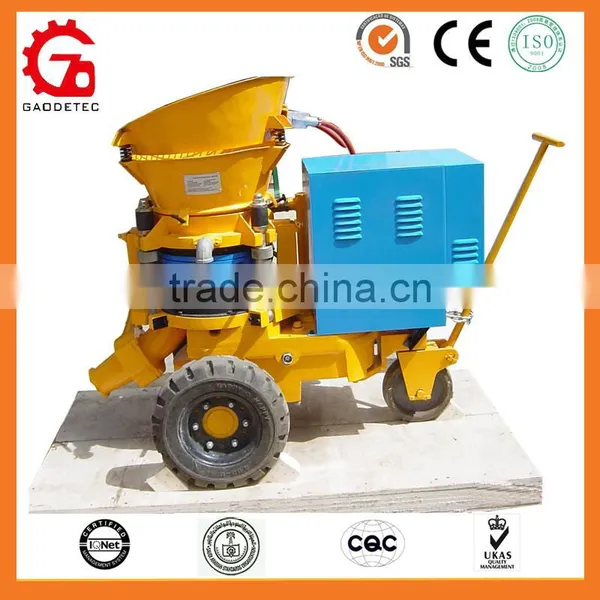

GZ3 World Wide Brand Electric Motor Dry Mix Concrete Spraying Machine
You May Like
-
GSZ3000E ISO Supplier World Wide Electric Motor Wet Shotcrete Spraying Machine
-
GDS1500 Hydraulic Powered Wet Shotcrete Machine for Sale
-
GPS-7 ISO Supplier Shotcete or Convey S Valve Small Size Concrete Pump
-
GZ-5A Tunnel Construction Used Spray Gunite Shot Concrete Machine
-
GDS2000G Gasoline Concrete Shotcrete Pump for Cellular Lightweight Concrete
-
GZ-5 Series Customized Rack-mounted Dry Shotcrete Machine
Product Details
| Condition | New | Max. Conveying Distance | 200m | |
| Max Aggregate Size | 10mm | Hose Inner Diameter | 51 mm | |
| Air Consumption | 5~6m3/min | Place of Origin | Henan, China | |
| Brand Name | GEC | Model Number | GZ-3 | |
| Voltage | 220v 380v 440v 660v 50/60HZ | Power(W) | 3kw | |
| Dimension(L*W*H) | 1.13*0.54*1.02m | Weight | 430kg | |
| Certification | ISO CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

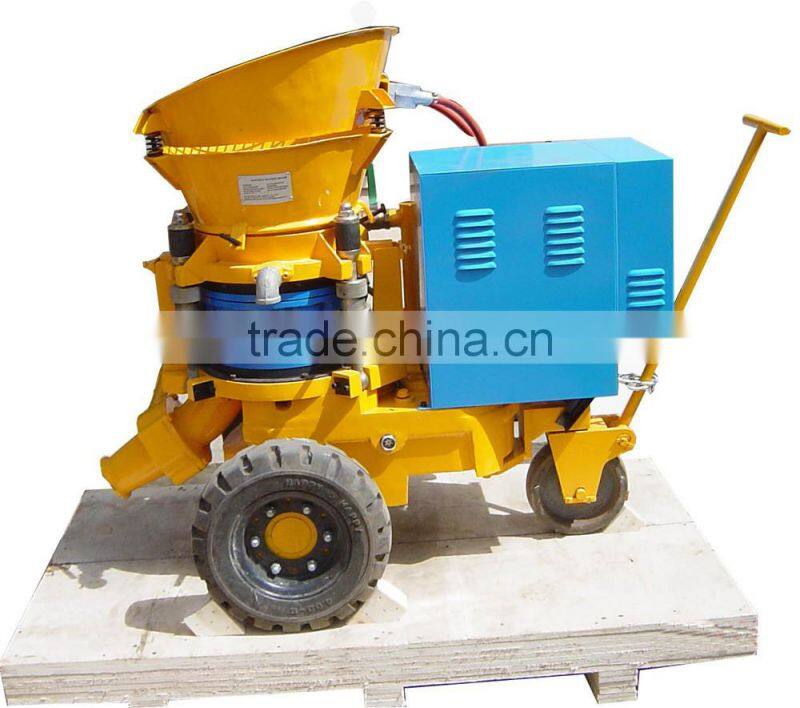

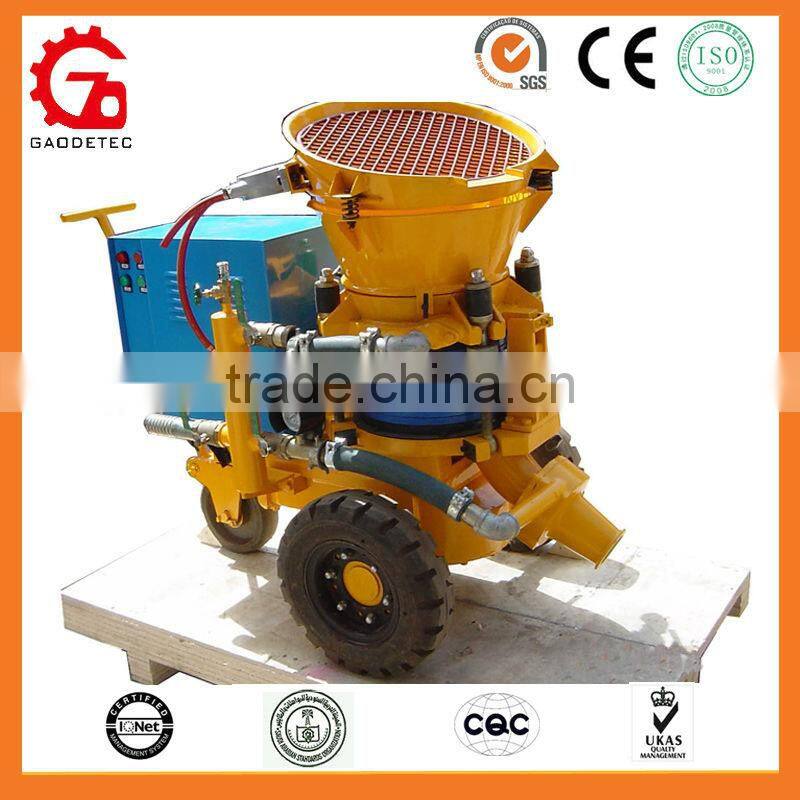

GZ3 world wide brand motor electric dry mix concrete spraying machine
GZ-3 dry mix concrete gunning mahcine is small-sized shotcrete machine for the dry spraying process.
GZ-3 dry mix concrete gunning mahcine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

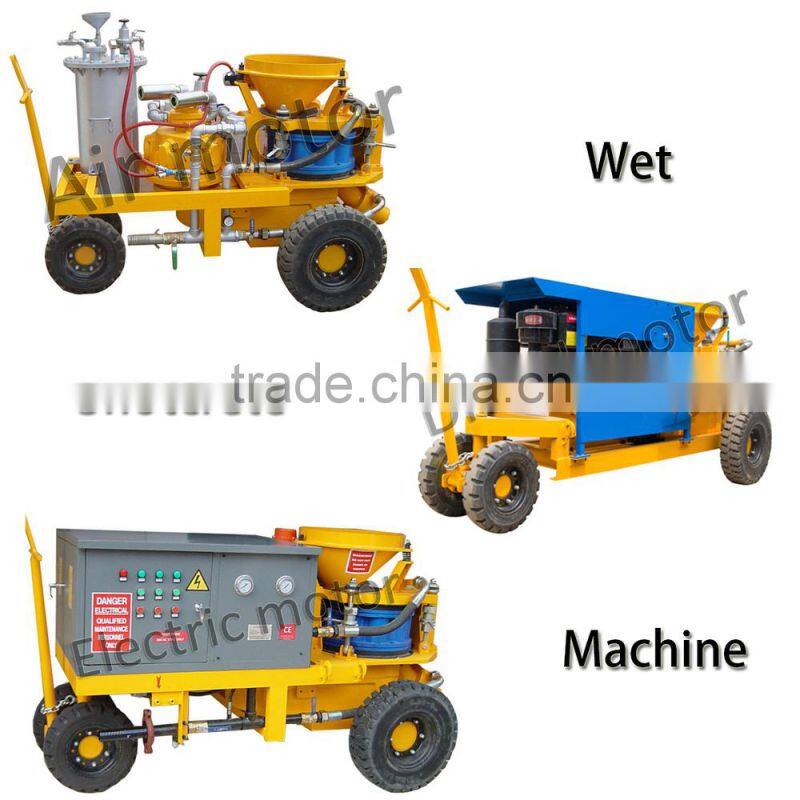

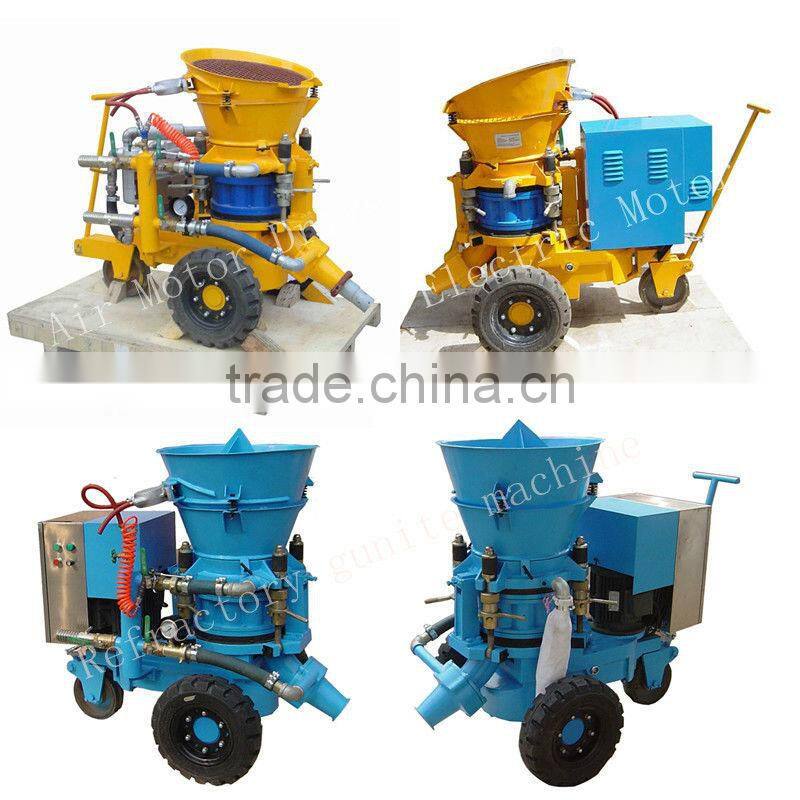

GZ-3 dry mix concrete gunning mahcine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
GZ3 world wide brand motor electric dry mix concrete spraying machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the pressure between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Technical data:
Electric Motor Driven:
Output Capacity | 3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ38/Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |

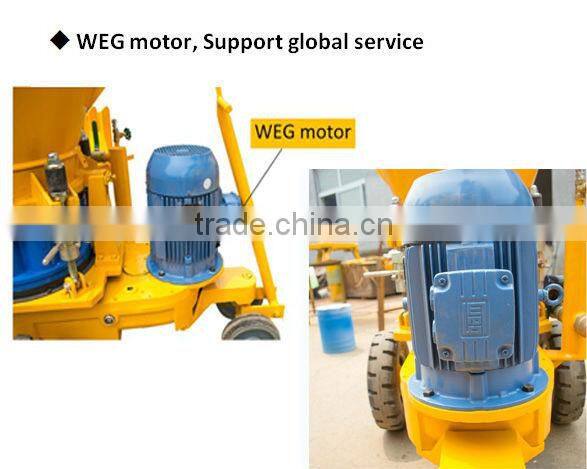

Motor Power | 3kW(4hp),IP55 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg |
Air Motor Driven:
Output Capacity | 1.5-3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Air Motor Air Pressure | 0.5MPa(71PSI) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Air Motor Type | TMH3.2 |
Air Motor Air Consumption | 4.8m3/min(171CFM) |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg(947lbs) |
Diesel driven:
Rated Output | 2-3m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1: 3~5 |
Max. Aggregate Size | Φ 10 mm |
Conveying Hose Inner Diameter | 38/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m 3 /min(180-215CFM |
Diesel Engine | 10hp,2200rpm |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Material Charging Height | 0.9m |
Rotor Speed | 9-13r/min |
Overall Dimension(L× W× H) | 1.8× 0.8× 1.2m |
Net Weight | 480kg |
GZ-5 dry-mix shotcrete machine
Wet shotcrete machine
Gunite machine
Package:
Application:
Work place:
Customers:
Certificate:
CE AND ISO9001
