GSZ3000A anti-explosion air motor drive concrete wet-mix shotcrete machine for sale
1. GSZ3000A anti-explosion air motor drive wet-mix shotcrete machine description:
GSZ3000A wet-mix shotcrete machine is a full pneumatic driven unit. And it is mainly used for wet spraying concrete. Its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc. It is widely used in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this wet-mix shotcrete machine is perfect and specific one.
2. GSZ3000A anti-explosion air motor drive wet-mix shotcrete machine technical data :
Rated output | 5m3/h |
Max. horizontal conveying distance | 35m |
Max. aggregate size | Dia.15mm |
Concrete slump | 8~15cm |
Conveying hose | Dia.50/65mm |
Operating air pressure | 0.2~0.6MPa |
Air consumption | 22m3/min (12+10) |
Loading height | 1.17m |
Rotor Rev. | 11r/min |
Rebound | ≤10 % |
Air motor power | 8kW |
Dosing pump model | BHA530 Dosing pump |
Dosing pump rated pressure | 0.5MPa |
Dosing pump output | 0~100L/h |
Overall dimension(L×W×H) | 1950×1050×1360mm 1950×1050×1360mm |
Weight | 1200Kg |

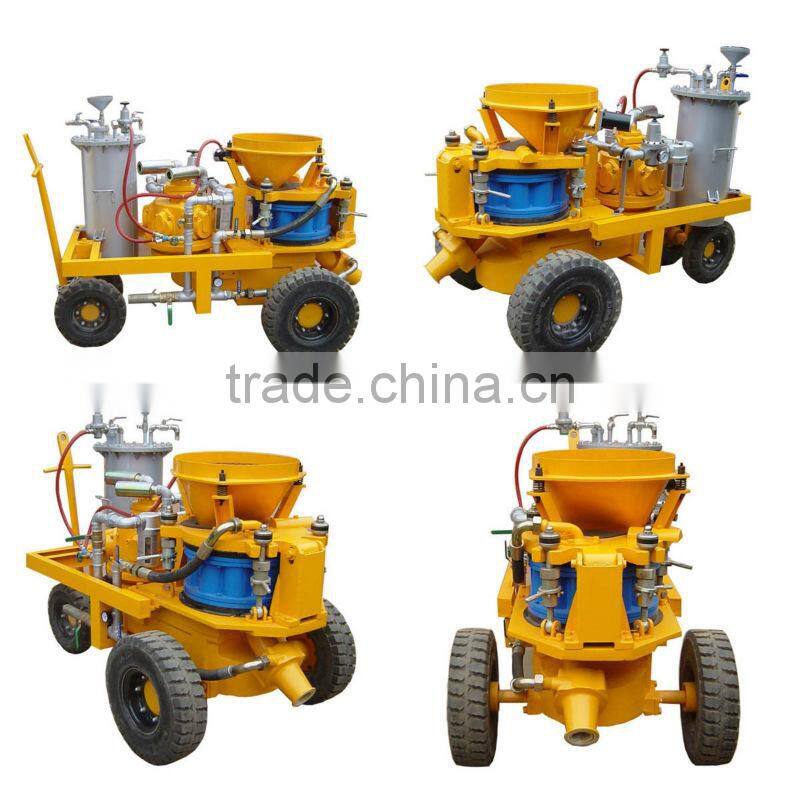

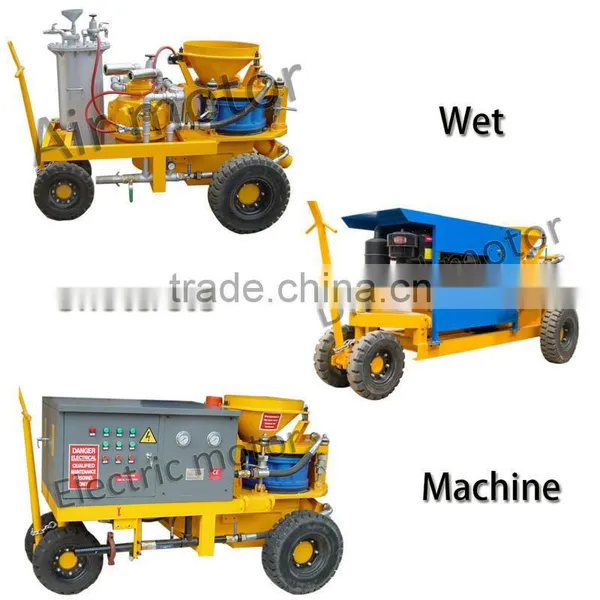

Other type wet-mix shotcrete machine:
Spare parts:
Wet-mix shotcrete machine Package:
Application:
Workshop:
Customers:
Certificate:
