GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine

Zhengzhou Gaode Equipment Co., Ltd.
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine thumbnail-1
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine thumbnail-2
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine thumbnail-3
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine thumbnail-4
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine thumbnail-5
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine photo-1
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine photo-2
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine photo-3
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine photo-4
GSZ3000 ISO Supplier Made in China Wet Mix Shotcrete Machine photo-5
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
35
Max Aggregate Size:
15mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Max. Conveying Distance 35
Max Aggregate Size 15mm
Hose Inner Diameter 51 mm
Air Consumption 10~ 12m3 /min(357-430CFM)
Place of Origin Henan, China
Brand Name GEC
Model Number GSZ3000
Voltage 220V, 380V, 440V, 660V, 50Hz/60Hz
Power(W) 7.5kW(10hp)
Dimension(L*W*H) 2.05* 0.95* 1.18m
Weight 1200kg
Certification CE AND ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

GSZ3000 ISO supplier made in China wet mix shotcrete machine





Product Description



GSZ3000 ISO supplier made in China wet mix shotcrete machine description:



GSZ3000 wet mix shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix.



The machine is suitable either for manual spraying or by means of a robotic arm.



GSZ3000 wet mix shotcrete machine  is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this wet mix shotcrete machine.

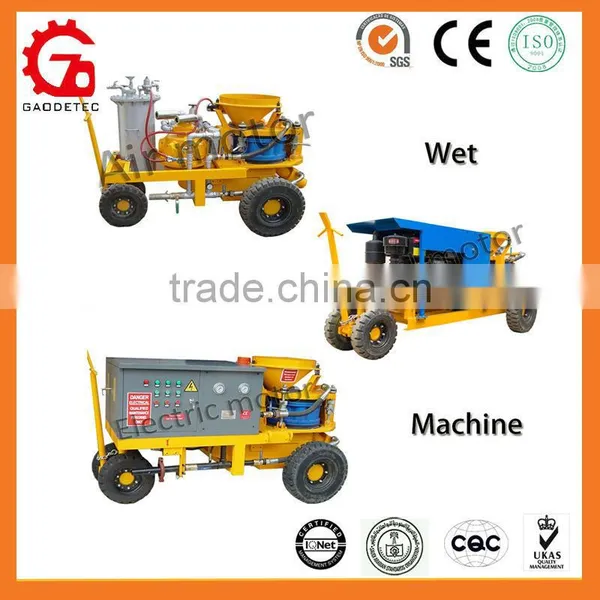

Basic: Electric drive can be combined with tyre chassis.



Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel.

 GSZ3000 ISO supplier made in China wet mix shotcrete machine



Technical data



GSZ3000 ISO supplier made in China wet mix shotcrete machine technical data :

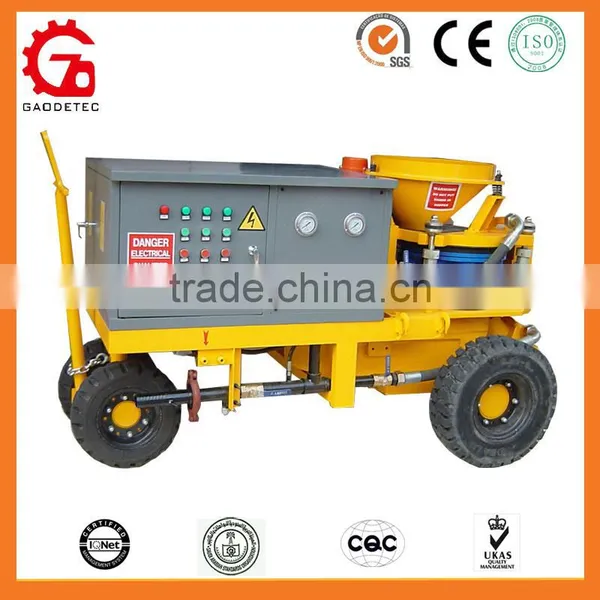

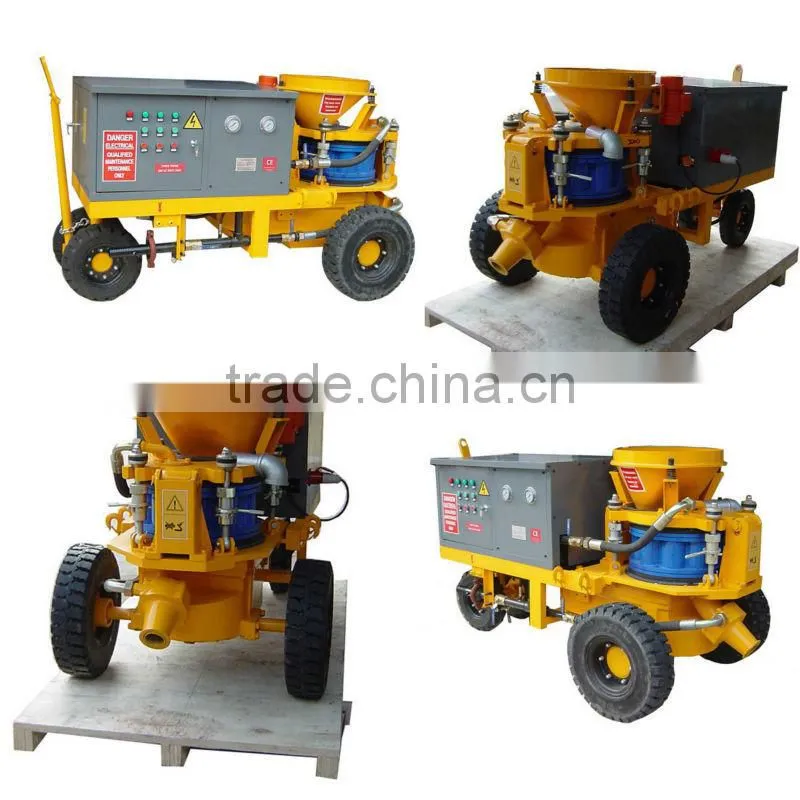

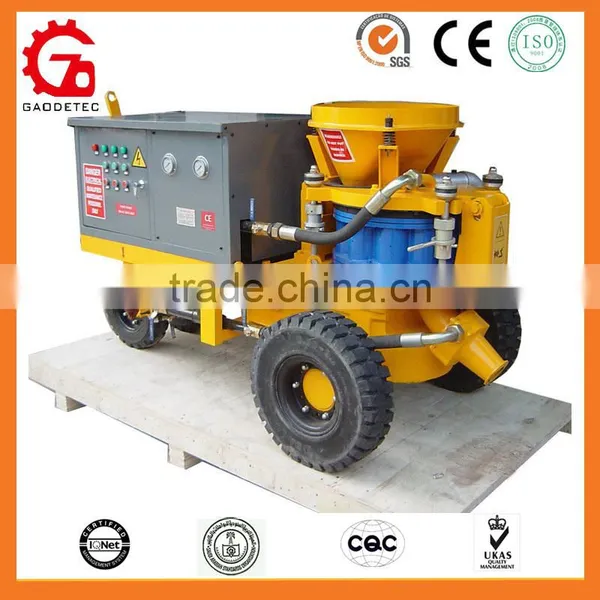

Electric drive:



 GSZ3000 ISO supplier made in China wet mix shotcrete machine



Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/min

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg

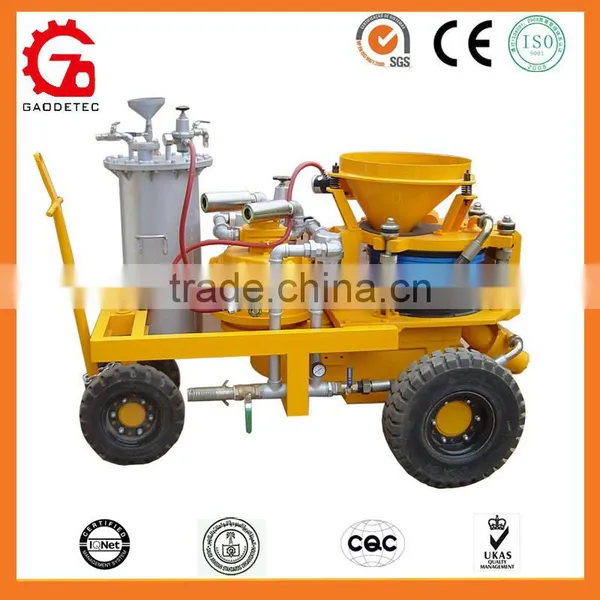

Air motor drive:



 GSZ3000 ISO supplier made in China wet mix shotcrete machine



Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.







Rated output

5m3/h

Max. horizontal conveying distance

35m

Max. aggregate size

Dia.15mm

Concrete slump

8~15cm

Conveying hose

Dia.51/64mm

Operating air pressure

0.2~0.6MPa

Air consumption

22m3/min (12+10)

Loading height

1.17m

Rotor Rev.

11r/min

Rebound

≤10 %

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0~100L/h

Overall dimension(L×W×H)

1950×1050×1360mm                                                             1950×1050×1360mm

Weight

1200Kg

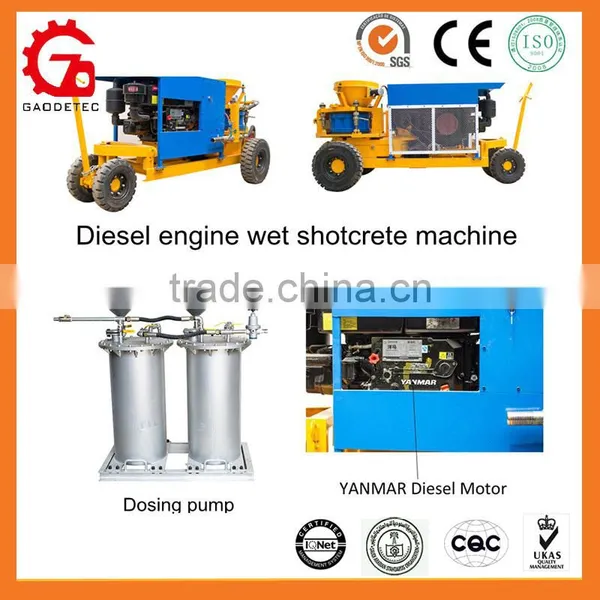

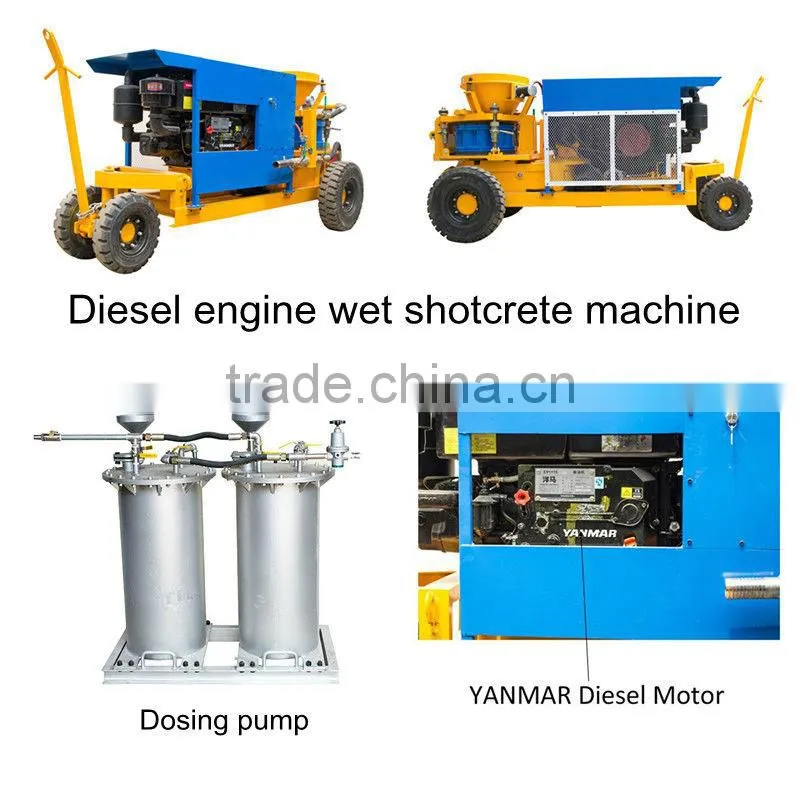

Diesel drive:

 GSZ3000 ISO supplier made in China wet mix shotcrete machine

Output Capacity

3-5m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

15 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

7.5-11r/min

Diesel Engine

20hp,2200rpm, Yanmar diesel

Diesel Engine Starting

Electric start

Clutch Type in Diesel Engine

Automatic Clutch

Air Vibrator

OR100,Oli

Overall Dimension(length×width×height)

2.55×1.05×1.25m

Dosing Pump Model

BHA530 Dosing tank

Net Weight

1300kg





Accessories



 Spare parts:

GSZ3000 ISO supplier made in China wet mix shotcrete machine



Related Products



GSZ3000 ISO supplier made in China wet mix shotcrete machineGSZ3000 ISO supplier made in China wet mix shotcrete machine



Packaging & Shipping



Wet-mix shotcrete machine Package:

GSZ3000 ISO supplier made in China wet mix shotcrete machine



Application



 Application:

GSZ3000 ISO supplier made in China wet mix shotcrete machine



Company Information

GSZ3000 ISO supplier made in China wet mix shotcrete machine

Workshop:

GSZ3000 ISO supplier made in China wet mix shotcrete machine



Customers:

GSZ3000 ISO supplier made in China wet mix shotcrete machine

Certificate:



 GSZ3000 ISO supplier made in China wet mix shotcrete machine
