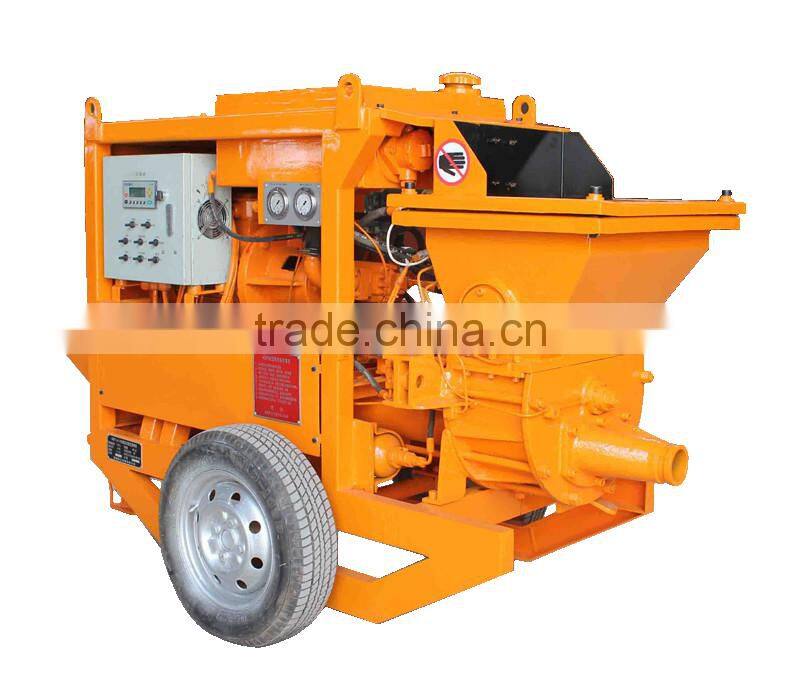

GSZ3000 ISO Supplier Famous Brand Diesel Wet Shotcrete Machine for Sale

Output Capacity

3-5m³ /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

15 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m³/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

7.5-11r/min

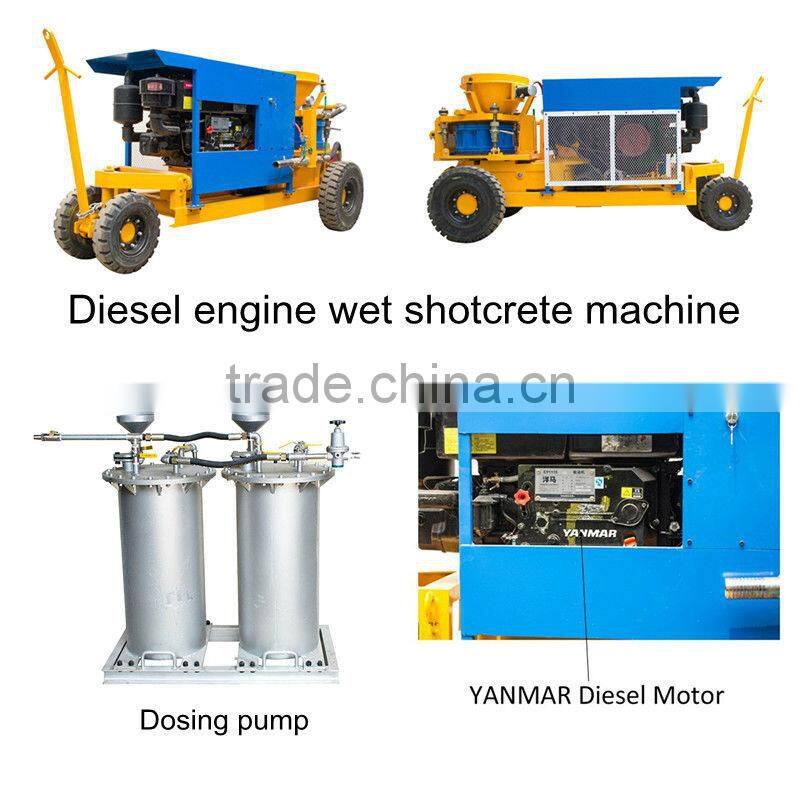

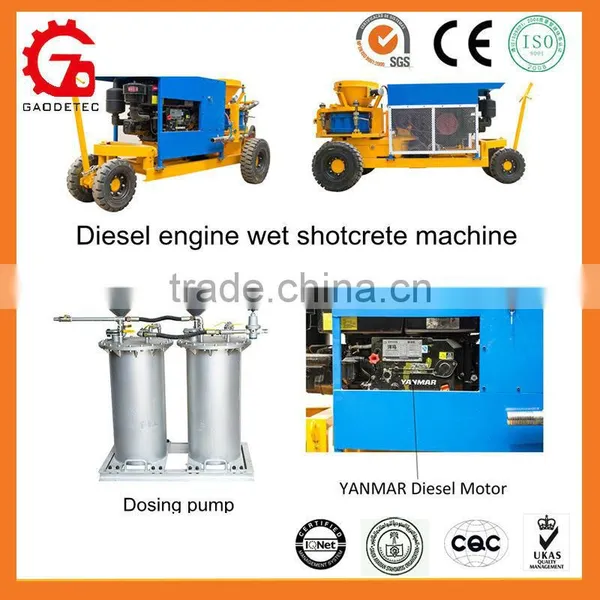

Diesel Engine

20hp,2200rpm, Yanmar diesel

Diesel Engine Starting

Electric start

Clutch Type in Diesel Engine

Automatic Clutch

Air Vibrator

OR100,Oli

Overall Dimension(length×width×height)

2.55×1.05×1.25m

Dosing pump model

BHA530 Dosing tank

Net Weight

1300kg

Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/min

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg

Rated output

5m³/h

Max. horizontal conveying distance

35m

Max. aggregate size

Dia.15mm

Concrete slump

8~15cm

Conveying hose

Dia.50/65mm

Operating air pressure

0.2~0.6MPa

Air consumption

22m³/min (12+10)

Loading height

1.17m

Rotor Rev.

11r/min

Rebound

≤10 %

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0~100L/h

Overall dimension(L×W×H)

1950×1050×1360mm                                                             1950×1050×1360mm

Weight

1200Kg
