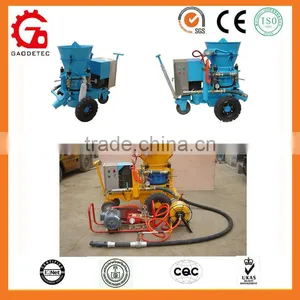

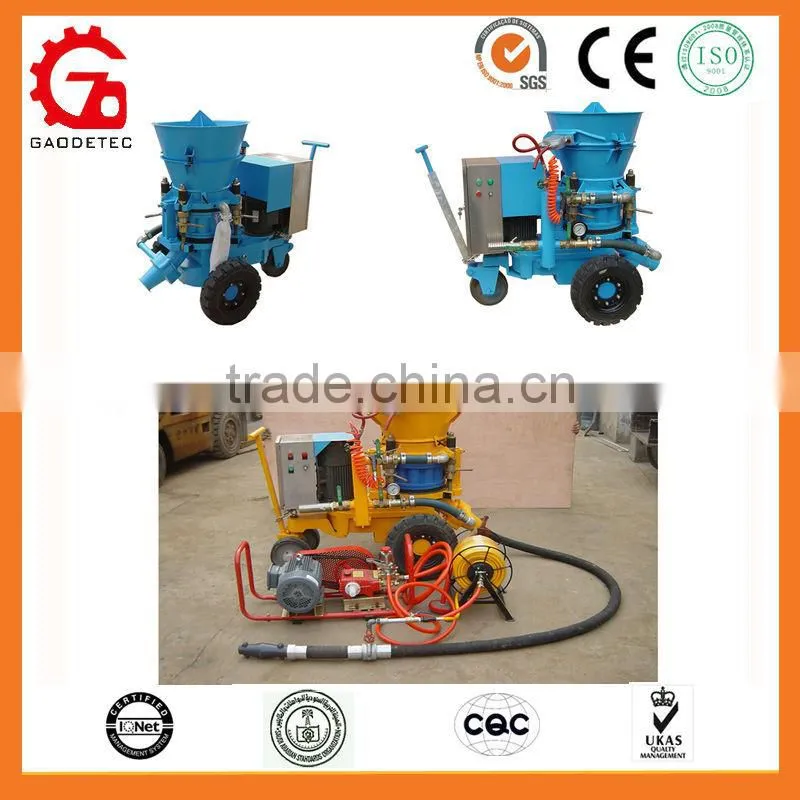

GZ3ER ISO supplier refractory dry mix concrete shotcrete machine
GZ3ER ISO supplier refractory dry mix concrete shotcrete machine Description
GZ-3E-R refractory dry mix concrete shotcrete machine is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this GZ-3E-R dry mix concrete shotcrete machine, you can get low dust and high performance spraying flow in nozzle.
GZ3ER ISO supplier refractory dry mix concrete shotcrete machine Features
1. Variable Output with variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. Light weight nozzle
8. Blast rubber hose
GZ3ER ISO supplier refractory dry mix concrete shotcrete machine Technical sheet
Specification (with Electric motor drive): | |
Rated Output |
1-3m3 /h |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Dia.10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m3/min(180-215CFM |
Motor Power |
4kW |
Voltage |
3 phase,380V,50Hz |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |
GRM Refractory Mixer
GRM refractory mixer is with supporting the use of GZ-3ER refractory gunning machine, which is used for mixing refractory materials. It can effectively reduce dust, save raw materials, which is beneficial to the health of the operator.
Related technical parameters
Item |
GRM100 |
GRM250 |
GRM500 |
Mixing capacity |
100kg |
250kg |
500kg |
Rotating speed |
35rpm |
36rpm |
39rpm |
Motor Power |
4kw |
5.5kw |
7.5kw |
Feeding Height |
1090mm |
1120mm |
1200mm |
Dimensions (mm) |
810x810x1090 |
1020x1020x1120 |
1250x1250x1300 |
Weight |
420kg |
560kg |
890kg |
Note:Technical data may change due to technical progress,subject to modification without notice. | |||
Spare parts:
Package:
Application:
Workshop:
Customers:
Certificate:
