GZ-5A air motor anti-explosion dry shotcrete spray concrete gunite machine
GZ-5A air motor anti-explosion dry shotcrete spray concrete gunite machine description:
GZ-5 gunite machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. GZ-5 gunite machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
GZ-5 air motor drive dry spray concrete gunite machine is available in following versions:
Air motor drive combined with skid or rail-wheel.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ-5 air motor anti-explosion dry shotcrete spray concrete gunite machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

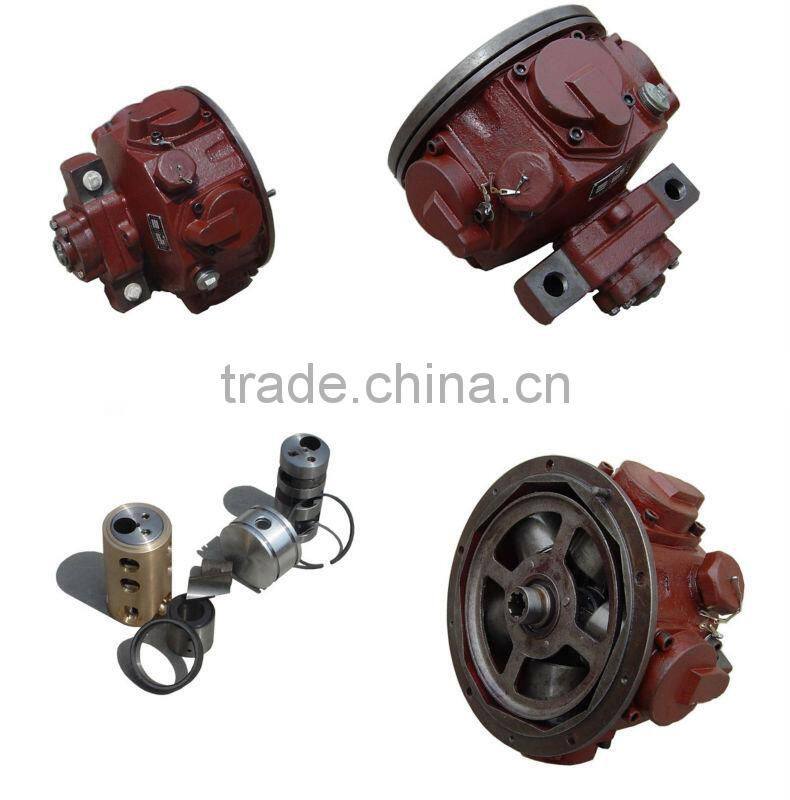

Air motor:
GZ-5A air motor anti-explosion dry shotcrete spray concrete gunite machine technical data:
Air motor drive:
Output Capacity | 2.5-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ15 mm |
Conveying Hose Inner Diameter | Φ51 mm |
Conveying Pressure | 0.2-0.4MPa |
Air Consumption for conveying material | 7~8m3/min |
Air Motor Air Pressure | 0.5MPa |
Material Charging Height | 1.1m |
Rotor Speed | 11rpm |
Air Motor Type | GMH6A |
Air Motor Air Consumption | 7.5m3/min |
Overall Dimension(length×width×height) | 1.35×0.75×1.2m |
Net Weight | 720kg |
GZ-5 Other driving mode dry shotcrete spray concrete gunite machine technical data:
Electric motor drive:
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1.3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | Φ51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L× W× H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L× W× H) | 2.2×0.96×1.2m |
Net Weight | 850kg |
Expanded dry shotcrete spray concrete gunite machine according to the customers' request:
Package of dry shotcrete gunite machine :
Application On sites of concrete spray dry shotcrete gunite machine :
Work place:
Bauma 2014:
Dry shotcrete gunite machine Certificates:
CE AND ISO9001
1. Methods of Payment:
Trade Assurance, T/T (Telegraphic Transfer) or Western Union or L/C at sight;
2. Handling time for an order:
Based on order quantity, normally it takes 25 days for production;
Only 2 or 3 days if we have stock on your request size;
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air;
Bulk order: we suggest by air or by sea;
We have our own experienced QC;
There will be strict inspection and testing for every order before shipping out;
a. Our sales team will response for your question within 24 hours (Holidays Excluded);
b. Technical Support will be available in any time;
